Change Layout of Organization Charts in PowerPoint 2013 for Windows

Learn how to change the layout of your organization charts in PowerPoint 2013 for Windows. PowerPoint provides several layout options.


Author:

Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher



Learn PowerPoint

Learn how you can advance two PowerPoint presentations with a single click.



Once you insert an organization chart (org chart) within PowerPoint, you might need to change the layout of the org chart. Now, layout is a broad term, but in PowerPoint, it means how subordinate levels in the hierarchy branch out from top to bottom. Probably, you want all subordinates flushed to the left, hanging to the right, or distributed evenly across a horizontal plane?

Follow these steps to change layouts for org charts work in PowerPoint 2013 for Windows:

  1. Select the top-most shape in your existing org chart, as shown in Figure 1, below. As you may notice, selecting any or all parts of the org chart activates two contextual tabs on the Ribbon. These are the SmartArt Tools Design and the SmartArt Tools Format tabs, as shown highlighted in red within Figure 1. Select the SmartArt Tools Design tab.
  2. SmartArt Tools Design tab

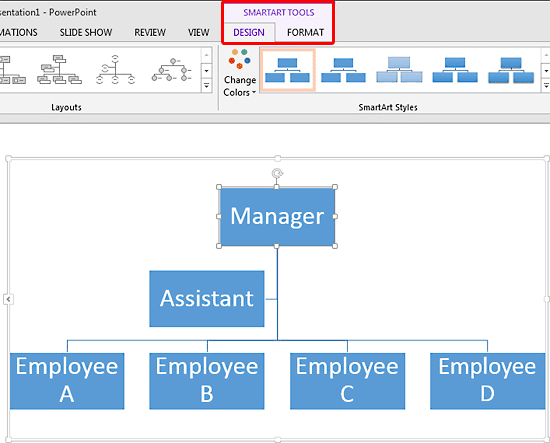

    Figure 1: SmartArt Tools Design tab
  3. Contextual Tabs

  4. The SmartArt Tools Design and the SmartArt Tools Format tabs are contextual tabs. These tabs are special tabs in the Ribbon that are not visible all the time. They only make an appearance when you are working with a particular slide object which can be edited using special options.
  5. Within the SmartArt Tools Design tab, click the Layout button, as shown highlighted in red within Figure 2, below.
  6. Layout button

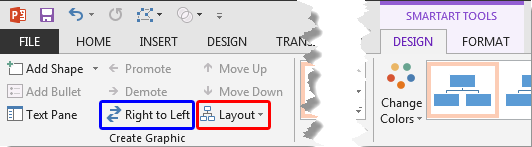

    Figure 2: Layout button
  7. Doing so brings up the Layout drop-down gallery, as shown in Figure 3, below.
  8. Layout drop-down gallery
    Figure 3: Layout drop-down gallery
  9. Options within the Layout drop-down gallery are explained below:
  10. Standard

  11. This option centers all shapes below the selected shape in a horizontal plane as shown in Figure 1, previously on this page.
  12. Both

  13. This option centers the selected shape above the subordinate shapes beneath, and arranges those shapes into two columns, as shown in Figure 4, below.

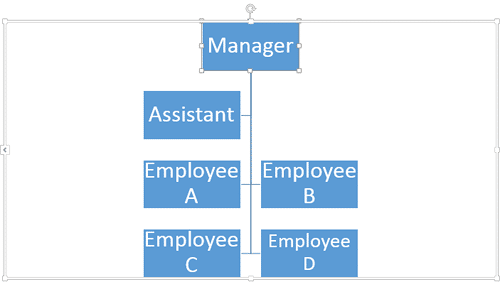

  14. Org chart with Both layout applie
    Figure 4: Org chart with Both layout applied
  15. Left Hanging

  16. Positions subordinate shapes flushed (hanging) beneath the selected shape, towards the left, as shown in Figure 5, below.

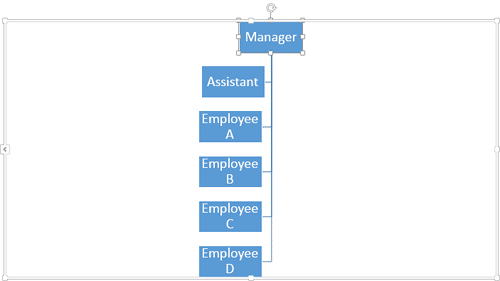

  17. Org chart with Left Hanging layout applied
    Figure 5: Org chart with Left Hanging layout applied
  18. Right Hanging

  19. Positions subordinate shapes flushed (hanging) beneath the selected shape, towards the right, as shown in Figure 6, below.

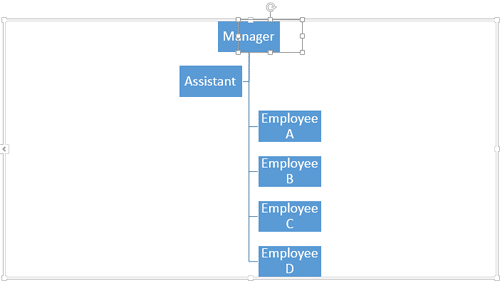

  20. Org chart with Right Hanging layout applied
    Figure 6: Org chart with Right Hanging layout applied
  21. You can switch between the sequencing of shapes by clicking the Right to Left button (next to the Layout button, as shown highlighted in blue within Figure 2, shown previously on this page).
  22. Figure 7, below, shows how the position of other shapes has changed. Compare the variant on the top with the variant on the bottom.

  23. Shape positions change their sequence

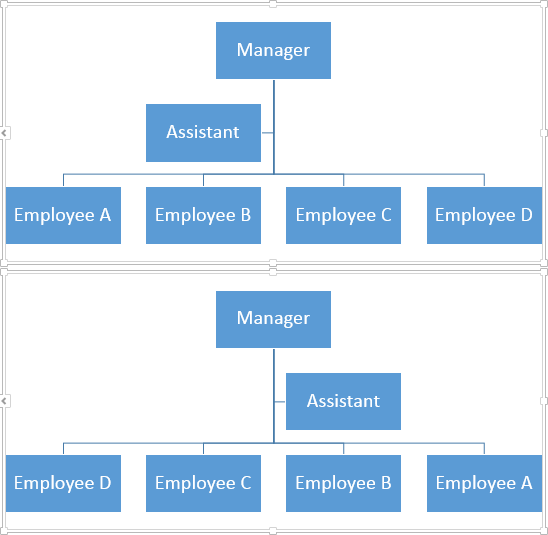

    Figure 7: Shape positions change their sequence
  24. Save your presentation often.
