Picture Layouts in PowerPoint 2013 for Windows

Learn about Picture Layouts that let you add pictures in predesigned layouts in PowerPoint 2013 for Windows. These layouts are part of PowerPoint’s SmartArt implementation.


Author:

Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher



Learn PowerPoint

Explore the Data Assistant warning in some versions of PowerPoint.



Pictures have an important role in presentation slides since they add imagination and visualization to your slides. To make pictures more impactful, you can even apply borders and effects to them, and also try some Picture Styles that PowerPoint offers. Other than these options, there is one more option that works in the same way as how you convert text to SmartArt. This is the Picture Layout option that similarly converts selected pictures into SmartArt.

Follow these steps to learn how to apply a Picture Layout in PowerPoint 2013 for Windows:

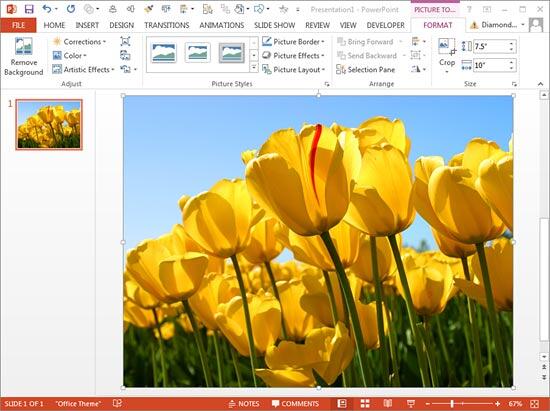

  1. Select the picture (or even multiple pictures on a slide) that you want to apply a Picture Layout to. Alternatively, if you just want to follow this tutorial step-by-step, launch PowerPoint. You will see the Presentation Gallery. Here, select the Blank Presentation to open a blank presentation with a new slide. You can then change the slide layout to Blank by selecting the Home tab | Layout | Blank option. Then, insert a picture and select it, as shown in Figure 1. As already specified, you can also insert and select multiple pictures on the same slide.
  2. Picture inserted and selected
    Figure 1: Picture inserted and selected

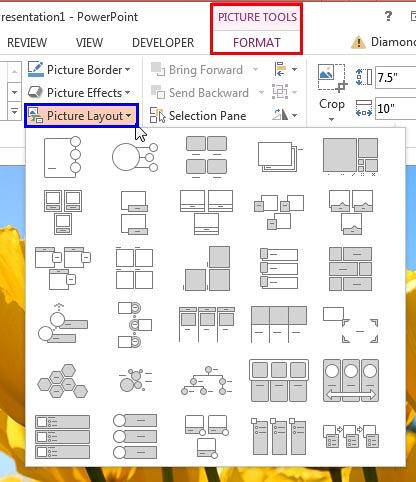

  3. This brings up the Picture Tools Format tab (highlighted in red within Figure 2) on the Ribbon. Select this tab to access the picture editing options. Within the Picture Tools Format tab, click the Picture Layout button (highlighted in blue within Figure 2). This opens the Picture Layout drop-down gallery as shown in Figure 2.
  4. Picture Layout drop-down gallery
    Figure 2: Picture Layout drop-down gallery
  5. Note: The Picture Tools Format tab is a Contextual tab. These contextual tabs are special tabs in the Ribbon that are not visible all the time. They only make an appearance when you are working with a particular slide object which can be edited using special options within these tabs.

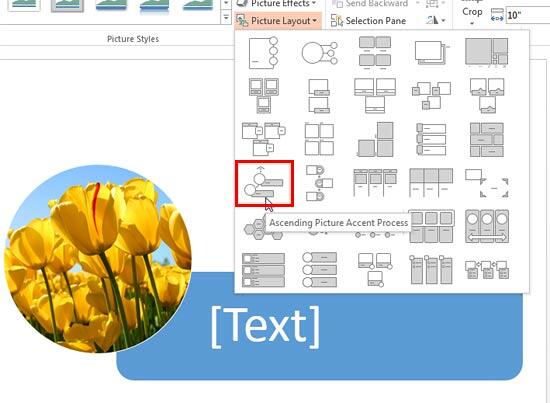

  6. When you hover your cursor over the Picture Layouts within the Picture Layout drop-down gallery, you will see a Live Preview of the Picture Layouts on your selected picture(s) on the slide, as shown in Figure 3. Click on any Picture Layout to apply it to the selected picture(s). In Figure 3 you can see the Picture Layout named Ascending Picture Accent Process (highlighted in red) being clicked upon.
  7. Picture Layout being selected
    Figure 3: Picture Layout being selected

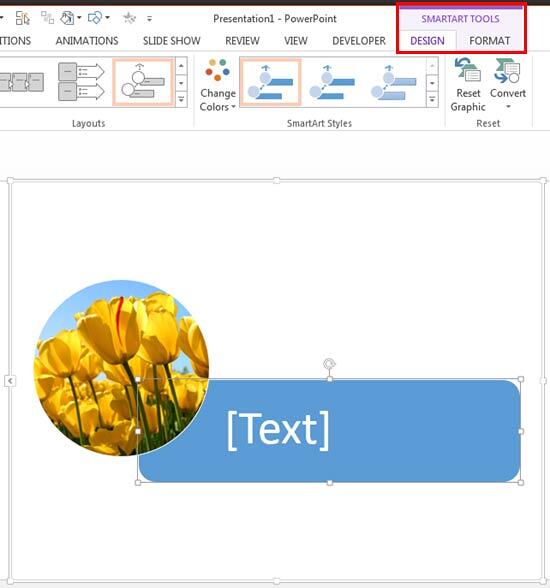

  8. Doing so applies the selected Picture Layout to the picture(s) on the slide, as shown in Figure 4, below. Now you can see that the picture you started with is no more a picture, but it has changed into a SmartArt graphic. This can be easily confirmed by checking within the Ribbon area, where you will see that the Picture Tools tab has been replaced by the SmartArt Tools tab, as shown highlighted in red within Figure 4.
  9. Picture converted into a SmartArt
    Figure 4: Picture converted into a SmartArt

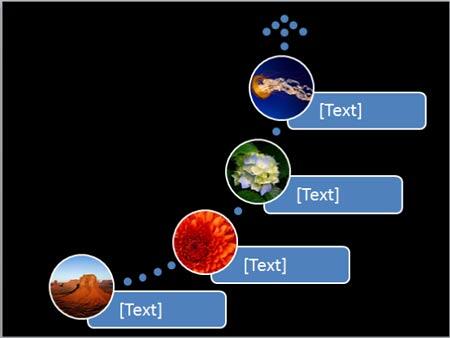

  10. Note: If you selected multiple pictures, then the result of applying a Picture Layout will be that all your selected pictures will form part of the same SmartArt graphic, as shown in the sample slide within Figure 5, below.
  11. Multiple pictures converted to SmartArt
    Figure 5: Multiple pictures converted to SmartArt
  12. Now, you can continue editing this resulting SmartArt graphic using available SmartArt editing options.
  13. Save your presentation often.

See Also:

Advanced Picture Concepts: Picture Layouts (Glossary Page)

Picture Layouts in PowerPoint 2016 for Windows
Picture Layouts in PowerPoint 2010 for Windows
