Picture Effects in PowerPoint 2013 for Windows

Learn about Picture Effects in PowerPoint 2013 for Windows. The various effects available are Shadow, Reflection, Glow, Soft Edge, Bevel, and 3-D Rotation.


Author:

Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher




Learn PowerPoint

Learn how to create Animated GIFs from PowerPoint slides.



After inserting pictures within your PowerPoint slide, you may want to change the appearance of the picture. You can add distinctive borders to your pictures or use the various Adjust Picture options. You can directly apply preset Picture Styles as well. These Picture Styles are based on PowerPoint's Picture Effects capabilities and add some effects with a click. Most of the time, this means that a single Picture Style adds a reflection, a glow, and a border to your picture. However, you can also apply any of these effects individually to your pictures. In all, PowerPoint provides 6 effects: shadow, reflection, glow, soft edges, bevel, and 3-D rotation.

Follow these steps to learn how you can apply these Picture Effects in PowerPoint 2013 for Windows:

  1. Open your presentation and select the picture that you want to apply an effect to. You can also select more than one picture on a single slide.
  2. Alternatively, if you just want to follow this tutorial step-by-step, launch PowerPoint. Most of the time, PowerPoint will open with a new slide in a presentation. PowerPoint 2013 for Windows users can change the slide layout to Blank by selecting the Home tab | Layout | Blank option. Then, insert a picture and select it.
  3. This brings up the Picture Tools Format tab on the Ribbon (highlighted in red within Figure 1). Make sure that this contextual tab is activated. Within the Picture Tools Format tab click the Picture Effects button (highlighted in blue within Figure 1).

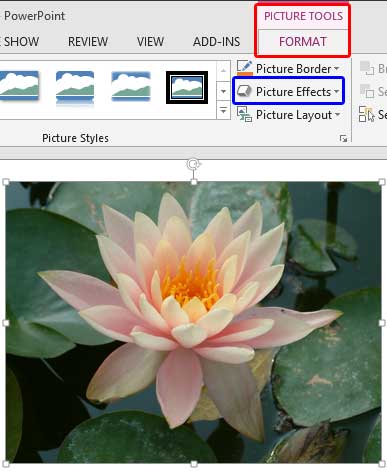

  4. Picture Effects button
    Figure 1: Picture Effects button
  5. Note: The Picture Tools Format tab is a Contextual tab. These contextual tabs are special tabs in the Ribbon that are not visible all the time. They only make an appearance when you are working with a particular slide object which can be edited using special options.
  6. This opens the Picture Effects drop-down gallery, as shown in Figure 2.

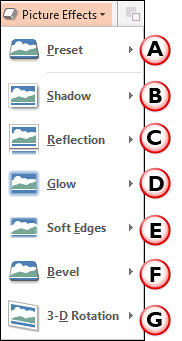

  7. Picture Effects drop-down gallery
    Figure 2: Picture Effects drop-down gallery
  8. All the options within the Picture Effects drop-down gallery are explained below, as marked in Figure 2 above. For more information on how to apply these effects, refer to the linked tutorials below. Although these linked tutorials discuss the Effect options for Shapes, the procedures explained applies to Pictures as well:
  9. A. Preset

  10. This option provides some ready to use shape effects, which can be applied to any shape. Learn more about Presets in our Apply Preset Effects tutorial.
  11. B. Shadow

  12. Applies a shadow to the selected picture. PowerPoint provides three types of shadows: Outer, Inner, and Perspective. You can apply any of these, or customize them to meet your requirements. Refer to our Apply Shadow Effects tutorial for more information on how to use the Shadow Effect.
  13. C. Reflection

  14. Adds a reflection to the selected picture, and you can choose from several reflection styles. Remember, you should not use shadow and reflection for the same picture. Refer to our Apply Reflection Effects tutorial to learn more.
  15. D. Glow

  16. Provides a hazed, blurred color perimeter outside the Picture area. PowerPoint provides several glow variations; the glow colors are based on the Theme colors, although you can also choose any other color as well. Refer to our Apply Glow Effects tutorial to explore more.
  17. E. Soft Edges

  18. This effect makes the picture edges feathered, almost like a moth-edge. Learn more in our Soft Edges in our Apply Soft Edges tutorial.
  19. F. Bevel

  20. Applies bevel effects to the selected picture. You can also customize the applied bevel. Refer to our Apply Bevel Effects tutorial to learn more.
  21. G. 3-D Rotation

  22. Imparts Parallel, Perspective, and Oblique 3-D effects to the selected picture. Refer to our Apply 3-D Rotation tutorial to understand this concept better.
  23. Choose and apply any of the picture effects. You can apply more than one effect to the same picture. Figure 3, shows the six variants of the same picture with all individual effect types applied.

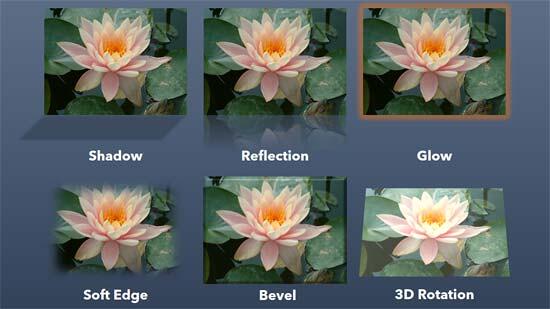

  24. Variants of the same picture with different effects applied
    Figure 3: Variants of the same picture with different effects applied
  25. You can also apply multiple effects to the same picture. Figure 4, shows a picture with three effects applied (Shadow, Bevel, and 3-D Rotation). Compare Figures 1 and 4.

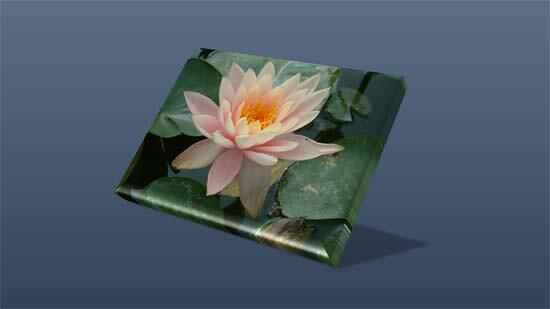

  26. Multiple Effects applied to one picture
    Figure 4: Multiple Effects applied to one picture
  27. Remember to save your presentation often.
