Set Document Resolution in PowerPoint 2016 for Windows

Learn how to set document resolution in PowerPoint 2016 for Windows. You can specify the default resolution to use as the base for automatic picture compression.


Product/Version: PowerPoint 2016 for Windows

OS: Microsoft Windows 7 and higher

Learn PowerPoint

Explore Timelines that are Different – 01.

One of PowerPoint's greatest qualities is that you can get all sorts of content from disparate sources and add them all within one presentation to create a unified document. Pictures are one of the most important content types you add on your slides. However, each picture you insert may have different resolutions, and thus even though you may have sized your picture to look like a small postage stamp on your slide, it may be increasing your file size by several megabytes because PowerPoint may store the original, larger image.

You can of course manually compress pictures in your presentation. Even better, you can set the document resolution for any presentation. Document resolution is a presentation-specific resolution you can set. This option will compress pictures you insert automatically to the default resolution you set.

To change the default document resolution in PowerPoint 2016, follow these steps:

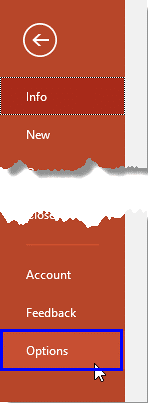

  1. Open your presentation, and make sure it is saved at least once. Then, navigate to File menu and choose Options, as shown highlighted in blue within Figure 1.
  2. Options to be selected
    Figure 1: Options to be selected

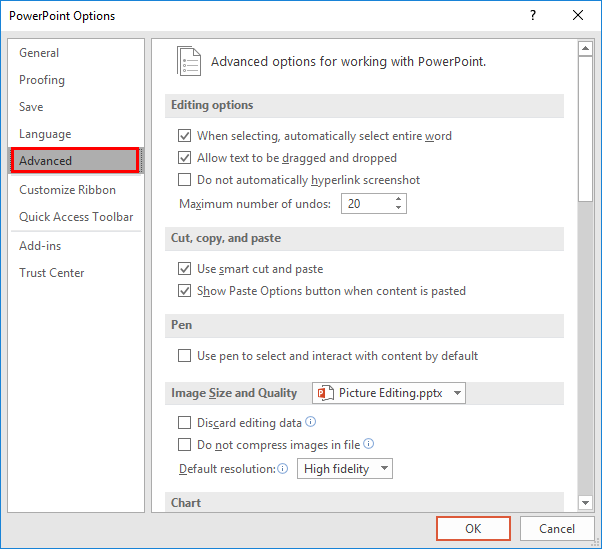

  3. Doing so, brings up the PowerPoint Options dialog box, as shown in Figure 2. Make sure you select the Advanced option (highlighted in red within Figure 2) in the sidebar to see all related options on the right side of the dialog box.
  4. PowerPoint Options dialog box
    Figure 2: PowerPoint Options dialog box

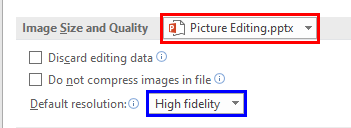

  5. Within the PowerPoint Options dialog box, locate Image Size and Quality section that you can see in Figure 3.
  6. Image Size and Quality section
    Figure 3: Image Size and Quality section
  7. If you have multiple presentations open, click within the box showing the presentation name (highlighted in red within Figure 3, above). From the drop-down list that appears, choose the presentation that you want to set the default picture resolution for.

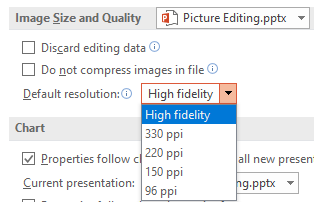

  8. Now, click within the box beside the Default resolution option, that you can see highlighted in blue within Figure 3, above. This brings up a drop-down list, as you can see in Figure 4.
  9. Default target output drop-down list
    Figure 4: Default target output drop-down list
  10. By default, High fidelity option is chosen. You can choose any other resolution value. Essentially, the larger your ppi value is, the higher the quality of your images will be. This also means that the compression level used will be lesser. In our Compress Pictures in PowerPoint 2016 tutorial, we explain the compression levels that 330, 220, 150, and 96 ppi signify.
  11. Once done, click the OK button (see Figure 2, shown earlier on this page) to apply the changes.

See Also:

Pictures - Compression: Set Document Resolution (Glossary Page)

Set Document Resolution in PowerPoint 2013 for Windows
Set Document Resolution in PowerPoint 2010 for Windows
