Texture Fills for Slide Backgrounds in PowerPoint 2010 for Windows

Use texture fills for slide backgrounds in PowerPoint 2010 for Windows. As far as possible, use simple textures that are not too detailed or too busy.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows XP and higher



Learn PowerPoint

Do you face this issue? Numbering slides from 1, multiple times in PowerPoint.



When you want to format your slide background to look different than the readymade styles available in PowerPoint, you can certainly explore both options we have already covered in separate tutorials: solid or gradient filled slide backgrounds. In addition, you could also choose a picture or Texture Fill for your slide backgrounds. Note that both picture or Texture Fills work very similarly, but choosing one option over the other can make the same background look so different. While a picture background results in your slide using a single picture as a backdrop, using a texture background can result in the same picture being tiled across the slide background. Also some pictures lend themselves better to being used as textures, especially if they are seamless.

Look at Figure 1 below. Note that while both samples show Texture Fills tiled up, the sample on the left uses a seamless texture that tricks the human eye into seeing a single expanse. The texture on the right however does not tile up well and you can see seams everytime the picture tiles up.

Seamless and non-seamless samples
Figure 1: Seamless and non-seamless samples

We have explored picture slide backgrounds (one picture filling the entire slide background) in our Picture Fills for Slide Backgrounds in PowerPoint 2010 for Windows tutorial. On this page you will learn how you can add a Texture Fill for your slide background.

  1. We assume you have created a new presentation, or you have opened one of your existing presentations. We also assume that you have summoned the Format Background dialog box, as explained in our Format Slide Background in PowerPoint 2010for Windows tutorial. Alternatively, just right-click in an empty area of your slide and choose the Format Background option in the resultant contextual menu to bring up the same dialog box.
  2. Within the Format Background dialog box, make sure that the Fill panel is active in the sidebar. Then, select the Picture or texture fill radio button, as shown highlighted in red in Figure 2. Also make sure that the Tile picture as texture check-box (marked as C in Figure 2) is selected. Deselecting this option will result in your slide background using a picture fill rather than a Texture Fill.

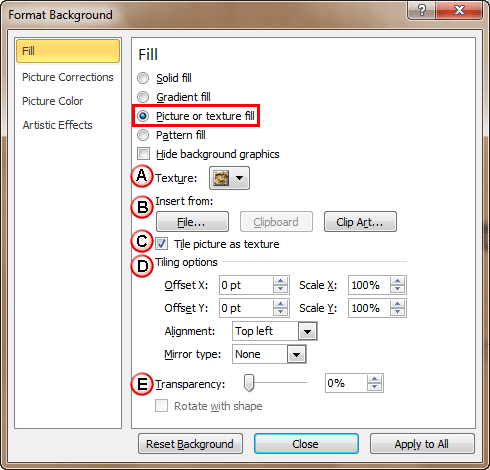

  3. Picture or Texture Fill radio button selected within the Format Background dialog box
    Figure 2: Picture or Texture Fill radio button selected within the Format Background dialog box
  4. As soon as the Picture or Texture Fill radio button is selected, you can see a Live Preview of your active slide in the open presentation changes to a default Texture Fill.
  5. Your slide background will auto-update with any changes you make within the Format Background dialog box. The options within the Format Background dialog box are marked in Figure 2, and explained below:
  6. A. Texture

  7. Click the down-arrow located in this area to bring up the Texture drop-down gallery, as shown in Figure 3. Choose from any of these readymade textures to change the slide background of your slide. Note that any of the textures you see in this gallery are seamless. This means that they tile up on your slide background repeatedly without exposing any seams to form a continuous pattern.

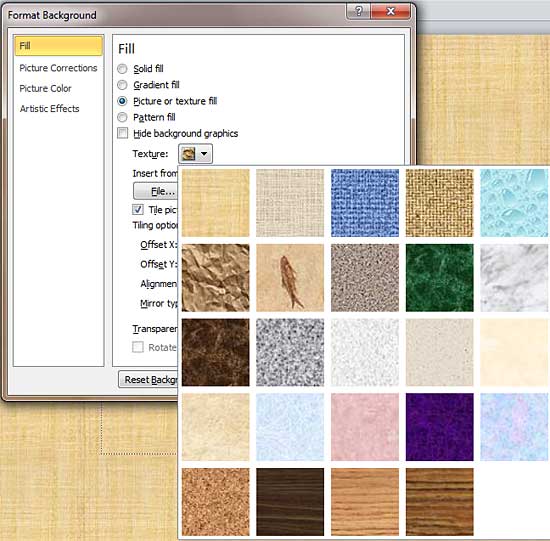

  8. Texture drop-down gallery within the Format Background dialog box
    Figure 3: Texture drop-down gallery within the Format Background dialog box
  9. B. Insert from

  10. You can choose from three options:
  11. File

  12. This option can be used if you want to use any other picture as a texture. Remember that a texture in simple terms is any picture that tiles repeatedly on your slide background. If you want a library of seamless textures, we recommend Ppted.com's Background Texture Collection. Clicking the File button brings up the Insert Picture dialog box that you can see in Figure 4. Navigate to where you have some textures saved, and click the Insert button in the dialog box.

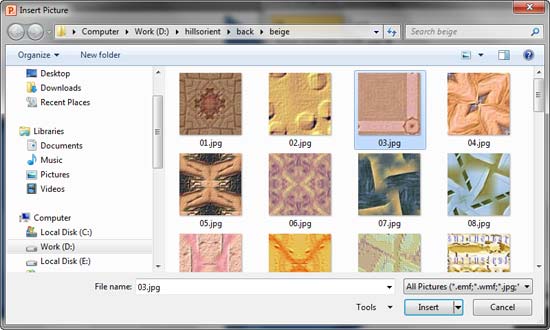

  13. Insert Picture dialog box
    Figure 4: Insert Picture dialog box
  14. Clipboard

  15. This option fills the background with the content of the Clipboard. If nothing is copied to the Clipboard, this button will be grayed out.
  16. Clip Art

  17. Allows you to select any clip art for your slide background. Clicking this option opens the Select Picture dialog box that you see in Figure 5, enter any keyword in the Search text box (highlighted in red in Figure 5). Also, you can select the Include content from Office.com check-box (highlighted in blue in Figure 5) to search from a larger library that includes millions of clips. Note that you must be connected online for this option to work. From the search results, select any clip you want to use and click the OK button.

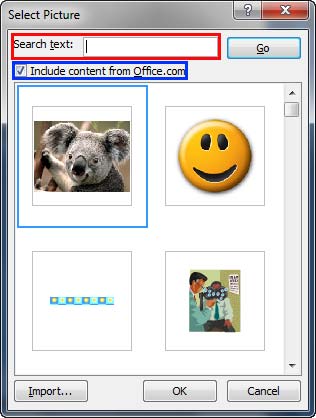

  18. Select Picture dialog box
    Figure 5: Select Picture dialog box
  19. C. Tile picture as texture

  20. When selected, this check-box ensures that your selected graphic is used as a texture rather than a picture. This also brings up Tiling options that let you to further edit the tiling pattern. We explain this next.
  21. D. Tiling options

  22. These options show up in the Format Background dialog box only when the Tile picture as texture check-box is selected. These options are explained in the Tiling Options tutorial. Do note though that the linked tutorial relates to shape fills, options work in the same way for slide background fills.
  23. E. Transparency

  24. This option is used to control the transparency level of the texture you choose as a slide background fill. You can use either the slider or directly type in the required transparency value.
  25. Choose the Texture Fill you need, thereafter, apply the chosen fill to your slides by clicking either:
  26. The Close button to fill selected slides in the presentation with the Texture Fill. If you don't have multiple slides selected, the Texture Fill will be applied to the active slide only.
  27. The Apply to All button to fill all slides in the presentation with the Texture Fill.
  28. More details about the Close and Apply to All buttons can be found in our Format Slide Background in PowerPoint 2010 for Windows tutorial.
  29. In Figure 6, you can see the slide background of the entire presentation is filled with a texture.

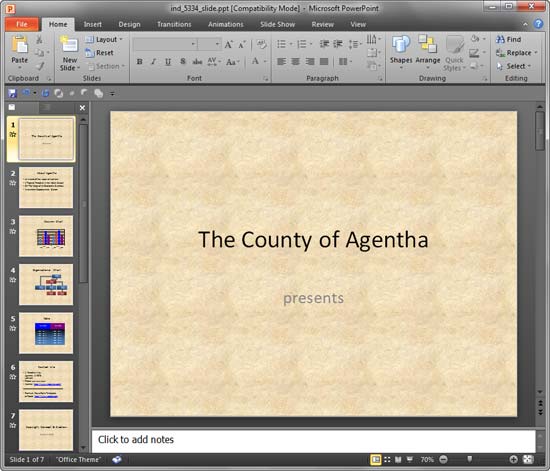

  30. Presentation with a Texture Fill background
    Figure 6: Presentation with a Texture Fill background
  31. Remember to save your presentation often.
