When you insert a new shape on a slide in PowerPoint 2016 for Windows (or in any previous version), by default it is filled with a solid color and an outline (or something else depending on the Theme your presentation is based on). For example in a new blank presentation that we created, the shape is by default filled with a blue solid fill and has a thin dark blue outline, as you can see in Figure 1. Whenever we insert another new shape on a slide, it will possess these same default shape attributes (fill, outline, and effect).
Figure 1: Default fill and outline in a blank presentation
These default shape attributes can be changed very easily in PowerPoint 2016. But do remember that these changes are only limited to the presentation you are working on. If the presentation is not saved, you'll lose the changes.
Follow these steps to change the default shape attributes of your open presentation in PowerPoint 2016 for Windows:
- Launch PowerPoint 2016 for Windows. Most of the time, PowerPoint will open with a new slide in a presentation. You can optionally change the slide layout to Blank by selecting the Home tab | Layout | Blank option.
- Now, insert a shape (any shape will do) on the slide. Typically, the shape is filled with blue and has a thin dark blue outline, as can be seen in Figure 1, shown previously on this page. If you see different attributes, don't worry, just move ahead with the rest of the steps.
- Select the shape so that the Ribbon area now shows the Drawing Tools Format tab, as shown highlighted in blue within Figure 2. Activate this Ribbon tab by clicking on it.

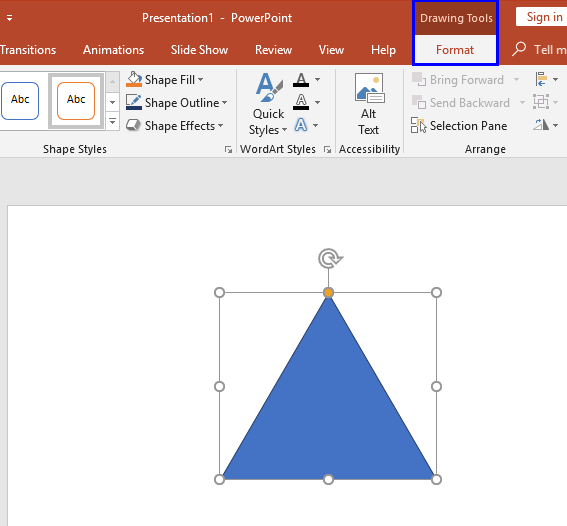

Figure 2: Drawing Tools Format tab of the Ribbon
- Within the Drawing Tools Format tab, click the down-arrow within the Shape Fill button (highlighted in red within Figure 3) to view the Shape Fill drop-down gallery that you can see in Figure 3. Choose any of the fill types as required.
Figure 3: Shape Fill drop-down gallery
- Now, with the shape still selected click the down-arrow within the Shape Outline button (highlighted in red within Figure 4) in the Drawing Tools Format tab to bring up a drop-down gallery that you can see in Figure 4. Within this sub-gallery, choose any weight (thickness) value for the selected shape. Learn more in our Formatting Outlines for Shapes (Dashes) in PowerPoint 2016 for Windows tutorial.

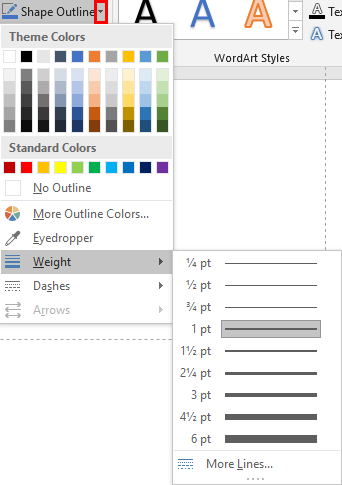

Figure 4: Weight sub-gallery
- You can even change the shape outline to be dashed by selecting the Dashes option within the Shape Outline galleryy. Doing so opens the Dashes sub-gallery that you can see in Figure 5. Within this sub-gallery, choose any dash style for the selected shape. Learn more in our Formatting Outlines for Shapes (Weight/Thickness) in PowerPoint 2016 for Windows tutorial.

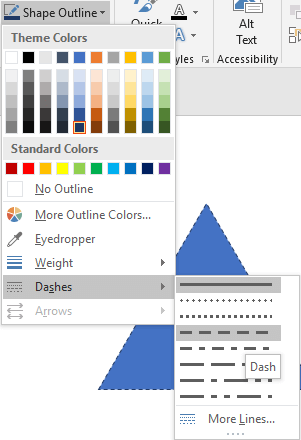

Figure 5: Dashes sub-gallery
- Figure 6, below shows the shape with a different fill and outline attributes. At this point of time, you can also play with effects such as reflection, glows, etc. You can format your default shape as you want.
Figure 6: Changed shape
- Now select the shape and right-click it to bring up the contextual menu, as shown in Figure 7. From the menu choose the Set as Default Shape option, as shown highlighted in red within Figure 7.

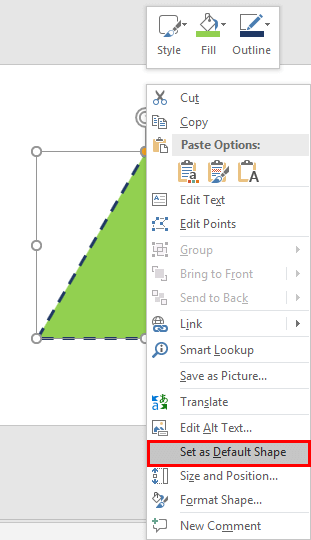

Figure 7: Set as Default Shape option to be selected
- This will set the attributes of the selected shape as default shape attributes. Hereafter, whenever you'll insert a new shape in the same presentation, it will appear with these attributes.
- Make sure you save the presentation file.
