Format Data Label Options in PowerPoint 2013 for Windows

Explore options to change the appearance of chart data labels in PowerPoint 2013 for Windows. Your data labels can be as precise or as detailed as you need them to be.


Author:

Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher



Learn PowerPoint

Explore Timelines that are Different – 02.



Adding data labels is one of the ways in which you can make your charts in PowerPoint more effective, informative, and relevant to your audience. Once added, you can also further change the appearance of the data labels to suit your requirements, as explained in this tutorial.

To begin, you need a chart on your slide. If you don't have one, insert a chart on your slide. Thereafter, follow these steps to change the appearance of data labels in PowerPoint 2013 for Windows:

  1. Select the chart and click the Chart Elements button on the top right of the chart. This button is the plus sign highlighted in red within Figure 1, below. Doing so opens the Chart Elements gallery. Within the Chart Elements gallery, hover your cursor over the Data Labels option. This brings up a right-arrow as shown highlighted in blue within Figure 1. Click this right-arrow to open the Data Labels sub-gallery. Within this sub-gallery, select More Options, highlighted in green within Figure 1.
  2. More Options
    Figure 1: More Options
  3. Note: Other options within the Data Labels sub-gallery are explained in our Chart Data Labels in PowerPoint 2013 for Windows tutorial.
  4. Alternatively, select data labels of any data series in your chart and right-click to bring up a contextual menu, as shown in Figure 2, below. From this menu, choose the Format Data Labels option.
  5. Format Data Labels option
    Figure 2: Format Data Labels option
  6. Either of these options opens the Format Data Labels Task Pane, as shown in Figure 3, below. In this Task Pane, you'll find the Label Options and Text Options tabs. These two tabs provide you with all chart data label formatting options.
  7. Format Data Labels Task Pane
    Figure 3: Format Data Labels Task Pane
  8. Let us start with exploring options within the Label Options tab, as shown in Figure 3, above. Do note that some of these options listed below link to further tutorials with more details. Although the linked tutorials do not pertain specifically to data labels, the principles explained hold good for data labels too.
  9. A. Fill & Line

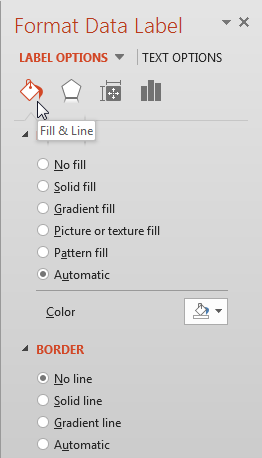

  10. Here you will find various Fill and Border options for the data labels, as shown in Figure 4, below.
  11. Fill and Line options for the data labels
    Figure 4: Fill and Line options for data labels
  12. Fill

  13. Includes various options that are used to format the fill of the text box containing data labels.
  14. Border

  15. Includes various options that are used to format the outline of the text box containing data labels.
  16. To learn more about these options, refer to our Fill and Line Options for the Chart Area in PowerPoint 2013 tutorial. Although the linked tutorial pertains to the chart area, the principles explained work similarly for data labels too.
  17. B. Effects

  18. There are four effects available for the text box that contains data labels, as shown in Figure 5, below.
  19. Effects options for chart data labels
    Figure 5: Effects options for chart data labels
  20. To explore more, refer to our Effect Options for Chart Area in PowerPoint 2013 tutorial. Although the linked tutorial pertains to the chart area, the principles explained work similarly for data labels.
  21. C. Size & Properties

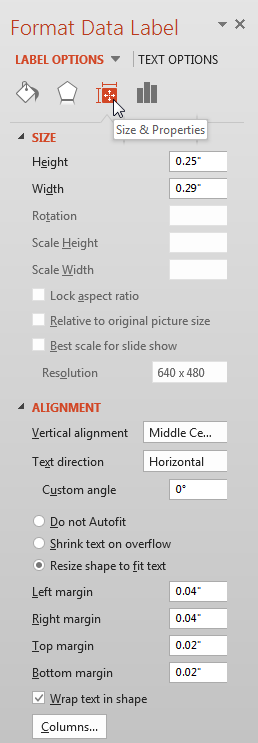

  22. Using options shown within Figure 6, below, you can change the size of the text box that contains data labels, and also control other aspects such as alignment and direction of the text, margins, etc.
  23. Size & Properties option within Format Data Table Task Pane
    Figure 6: Size & Properties option within Format Data Table Task Pane
  24. To learn more about Size & Properties options, refer to our Text Layout Options in PowerPoint 2013 and Text Box Autofit Options in PowerPoint 2013 tutorials.
  25. D. Label Options

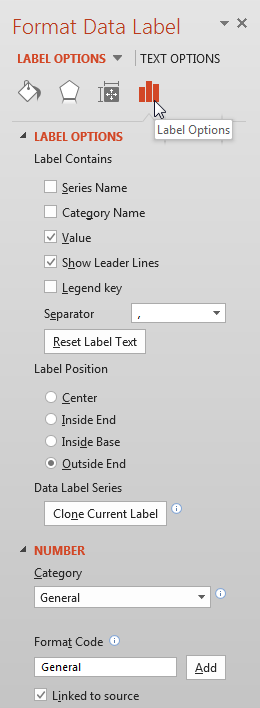

  26. These options, shown in Figure 7, below, are used to edit content, position, and format of data labels.
  27. Label Options within Format Data Table Task Pane
    Figure 7: Label Options within Format Data Table Task Pane
  28. Explore more about these options in our Label Options for Chart Data Labels in PowerPoint 2013 tutorial.
  29. The Text Options tab of the Format Data Labels Task Pane, as shown highlighted in red within Figure 8, below, provides you with text editing options for your chart data labels text, as shown in Figure 8.
  30. Text Options tab within the Format Data Labels Task Pane
    Figure 8: Text Options tab within the Format Data Labels Task Pane
  31. Let us explore options within the Text Options tab, as marked in Figure 8.
  32. A. Text Fill & Outline

  33. Change the text fill and outline of the data lable text, as explained in our Text Fill & Outline Options for Chart Area in PowerPoint 2013 tutorial.
  34. B. Text Effects

  35. Choose from Shadow, Reflection, and Glow effects, as shown highlighted in red within Figure 9, below, to make your data lable text stand apart.
  36. Text Effects for Chart Data Labels
    Figure 9: Text Effects for Chart Data Labels
  37. For more information, refer to our Text Effects Options for Chart Area in PowerPoint 2013 tutorial. Although the linked tutorial pertains to the chart area, the principles explained work similarly for data labels.
  38. C. Text Box

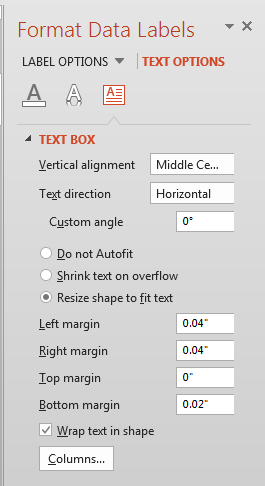

  39. Clicking the Text Box button reveals text alignment options for the data labels, as shown in Figure 10, below.
  40. Text box options for chart data labels
    Figure 10: Text box options for chart data labels

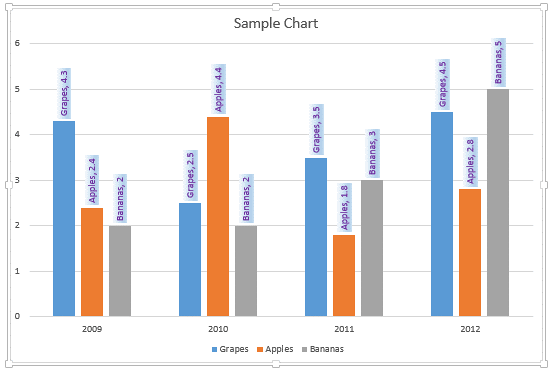

  41. Select required option and format data lables, as required. Figure 11, below, shows our sample chart with formatted data labels. Compare with the chart in Figure 2, shown previously on this page.
  42. Chart with formatted data labels
    Figure 11: Chart with formatted data labels
  43. Save your presentation often.
