Format Text Attributes of SmartArt Graphics in PowerPoint 2013 for Windows

Learn how to format text attributes of SmartArt graphics in PowerPoint 2013 for Windows. You must ensure that your text is legible against the colors used for SmartArt graphics.


Author:

Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher



Learn PowerPoint

Explore Timelines that are Different – 07.



All SmartArt graphic layouts have text placeholders, which are essentially text boxes. You can click and start typing within these placeholders to add text. In the previous tutorials, we have shown you how to insert a SmartArt graphic within PowerPoint, how you can convert some bulleted text to SmartArt graphic, and how the SmartArt graphic Text Pane works.

There are several ways to format the SmartArt graphic text. Follow these steps to format text attributes of SmartArt graphics in PowerPoint 2013 for Windows:

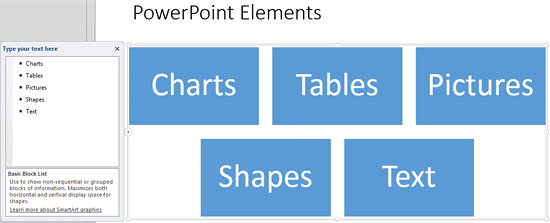

  1. Select your existing SmartArt graphic in PowerPoint 2013 for Windows, as shown in Figure 1, below.
  2. SmartArt graphic
    Figure 1: SmartArt graphic

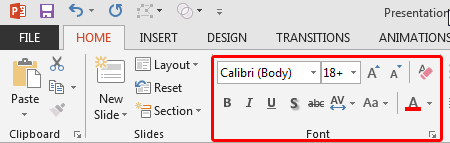

  3. Select the Home tab on the Ribbon. Within the Font group, as shown highlighted in red within Figure 2, below, you'll see options to change the font type, font size, apply font style, change the font color, etc.
  4. Font group within Home tab on the Ribbon
    Figure 2: Font group within Home tab on the Ribbon

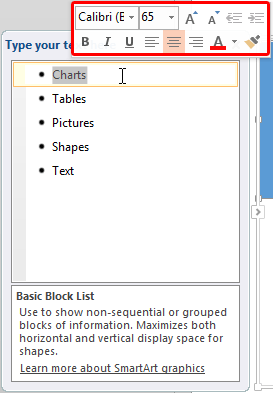

  5. Alternatively, you can select text within the SmartArt graphic's Text Pane. Doing so brings up the contextual menu with the Mini Toolbar (the toolbar on the top), as shown highlighted in red within Figure 3, below.
  6. Mini toolbar
    Figure 3: Mini toolbar
  7. As you can see in Figure 3, above, the Mini Toolbar contains most of the text formatting options you may require. It thus saves you from accessing the Ribbon tabs each time you want to apply some text formatting.

See Also:

Advanced SmartArt: Format Text Attributes of SmartArt Graphics (Glossary Page)

Format Text Attributes of SmartArt Graphics in PowerPoint 2011 for Mac
Format Text Attributes of SmartArt Graphics in PowerPoint 2010 for Windows
