Formatting Lines for Shapes in PowerPoint 2010 for Windows

Make changes to the appearance of shape lines in PowerPoint 2010 for Windows. You can change line color, weight, dash type, arrow-ends, add gradients, and remove line attributes altogether.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows 7 and higher




Learn PowerPoint

Learn how to Use Non-Installed Fonts in PowerPoint.



We have already showed you how to use fills for shapes in PowerPoint 2010 and earlier versions. In this next installment of tutorials, we will show you how you can work with shape outlines in PowerPoint 2010 for Windows.

For all practical purposes, shape outline attributes in PowerPoint 2010 include:

In this tutorial, we'll explore the basics and thereafter provide links to specific, individual tutorials so that you can get acquainted with more advanced stuff.

Let us start by exploring what an outline is. First of all, we are talking about shape outlines here, and not presentation outlines. Now a shape outline is either of these two:

  • In a closed shape: The perimeter areas of closed shapes, such as rectangles, circles, etc. (shown on the left in Figure 1, below).
  • In an open shape: The line itself, of regular line shapes, such as straight lines, curves, scribbles, or any other shape that is not closed (shown on the right in Figure 1, below).

This establishes that formatting of outline options doesn't require a closed area. Figure 1 shows a thick line around both a closed shape, and an open shape.

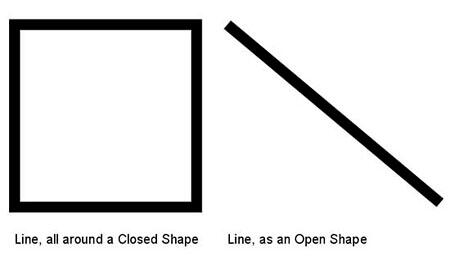

Samples of lines (outlines) in closed and open shapes
Figure 1: Samples of lines (outlines) in closed and open shapes

As far as formatting any outline is concerned, it really doesn't matter if the selected shape is open or closed, because the process to do that is the same. However, there's one exception to the rule: you cannot add arrowheads to outlines around closed shapes, because arrowheads only show in open shapes. Learn maore about Formatting Arrows (Arrowheads) in PowerPoint 2010.

Whenever a new shape is inserted in a PowerPoint slide, you can see that it is filled with a solid color and an outline by default. Follow these steps to format outline options, such as the color, weight, dash, etc.

  1. Select the shape that you want to change the line attributes for. Alternatively, if you just want to follow this tutorial step-by-step, launch PowerPoint. Most of the time, PowerPoint will open with a new slide in a presentation, PowerPoint 2010 users can change the slide layout to Blank by selecting Home tab | Layout | Blank.
  2. Under the Home or Insert tab of the Ribbon, choose the Shapes button to view the Shapes gallery that you can see in Figure 2. Select the Line shape (refer to Figure 2 again) or any other shape if you are using closed shape, and then either drag and draw, or click once on the blank slide to place an instance of the shape.

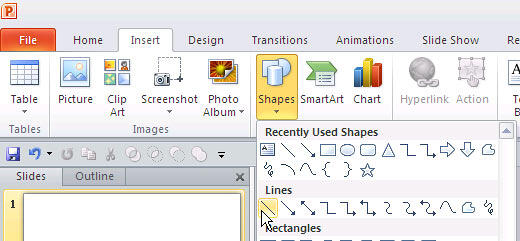

  3. Shapes gallery
    Figure 2: Shapes gallery
  4. Select the line so that the Ribbon area now shows the Drawing Tools Format tab, as shown in Figure 3. Activate this Ribbon tab by clicking on it.

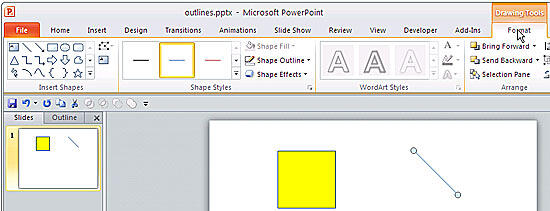

  5. Drawing Tools Format tab of the Ribbon
    Figure 3: Drawing Tools Format tab of the Ribbon
  6. Note: The Drawing Tools Format tab is a Contextual tab. These tabs are special tabs in the Ribbon that are not visible all the time, they only make an appearance when you are working with a particular slide object which can be edited using special options.
  7. From the Drawing Tools Format tab, locate the Shape Styles group, and then click the Shape Outline button to view the Shape Outline drop-down gallery that you can see in Figure 4.

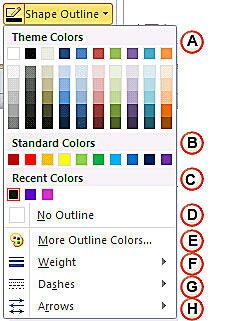

  8. Shape Outline
    Figure 4: Shape Outline
  9. The options within Shape Outline gallery are explained below, as marked in Figure 4, you'll need to choose any one of these options for the outline:
  10. A. Theme Colors

  11. Here you can select any of the colors which are from the active Theme of the presentation. You can also select any of the 5 tints or shades for any Theme color. Learn more about Themes here.
  12. B. Standard Colors

  13. You can choose any of the ten standard colors available, these ten standard colors are just choices of colors that PowerPoint believes to be widely used. You don't have to limit yourself to either the Theme colors or Standard colors, as we'll show you in the next options, although it's a good design idea to use Theme colors as far as possible.
  14. C. Recent Colors

  15. Here you can find the colors most recently used. If you have just launched PowerPoint and created a new presentation, the Recent Colors option may be entirely absent since you haven't selected any color recently!
  16. D. No Outline

  17. Choose this option to remove the shape outline altogether from the selected shape. If you have selected a line (open shape), then choosing the No Outline option will make the line to completely disappear! Learn more about No Shape Outline in PowerPoint 2010 here.
  18. E. More Outline Colors

  19. This is to summon the Colors dialog box as shown in Figure 5. This dialog box has two tabs: Standard and Custom, first select the Standard tab (again, refer to Figure 5).
  20. Standard tab of the Colors dialog box
    Figure 5: Standard tab of the Colors dialog box
  21. This tab offers 127 colors in a honeycomb style palette, 14 gray shades, black and white. You can even change the transparency value of the selected color in the Transparency slider below. If you want more color choices, then select the Custom tab of the same dialog box, as shown in Figure 6.
  22. Custom tab of the Colors dialog box
    Figure 6: Custom tab of the Colors dialog box
  23. In this tab, you can chose any color from the spectrum and later adjust the selected color's luminosity with the slider on the right. You can even enter specific values of RGB and HSL to create a specific color -- all these combinations provide 16 million color choices!
  24. Again, you can even change the transparency value of the selected color in the Transparency slider below.
  25. Choose any color and click OK to apply it.
  26. F. Weight

  27. With this option you can change the thickness attribute of the outline from a hairline width to a chunky, thick line. Learn more about Formatting Outlines for Shapes in PowerPoint 2010 -- Weight.
  28. G. Dashes

  29. These are different dash types. Learn more about Formatting Outlines for Shapes in PowerPoint 2010 -- Dash.
  30. H. Arrows

  31. This option allows you to add arrowheads to one end or both ends of the shape outline. Learn more about Formatting Arrows (Arrowheads) in PowerPoint 2010.
  32. I. Gradients

  33. (this option does not show in Shape Outline gallery you saw in Figure 4): PowerPoint 2010 also allows you to add gradients to shape outlines. Learn more about Gradient Outlines in PowerPoint 2010.
  34. Once you apply the outline formatting to a selected shape or line, remember to save your presentation.
