Formatting Arrowheads for Line Shapes in PowerPoint 2013 for Windows

Learn how to format arrowheads for line shapes in PowerPoint 2013 for Windows. You can add arrowheads at one or both ends, and choose many styles and sizes for the arrowheads.


Author:

Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher




Learn PowerPoint

Do you face this issue? Numbering Slides from 1, Multiple Times in PowerPoint.



PowerPoint provides two types of shapes: open and close shapes. In Figure 1 below you can see a thick weighted outline around both a closed shape (on the left) and as an open shape (on the right). Shapes, such as rectangles, circles, etc. are closed shapes. Regular line shapes, such as straight lines, curves, scribbles, etc. are open shapes. Arrowheads can be added only to open shapes, like the one on the right in Figure 1. That's because an arrow needs a pronounced, visible beginning and end.

Samples of lines (outlines) in closed and open shapes
Figure 1: Samples of lines (outlines) in closed and open shapes

We have already explained the basics of outlines in PowerPoint 2013 and how you can change their weight and dash types. In this tutorial we'll learn about adding arrowheads to open shapes.

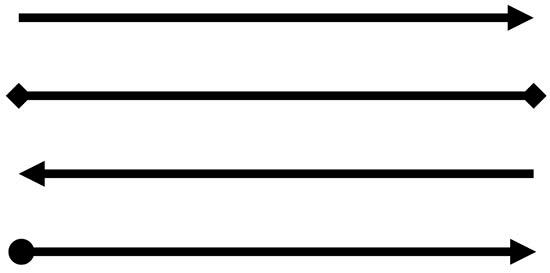

Figure 2 below shows some samples of lines with arrowheads on one or both sides.

Sample arrow styles (lines with arrows)
Figure 2: Sample arrow styles (lines with arrows)

Follow these steps to add or edit arrowheads:

  1. Open your presentation and select the open shape that you want to format.
  2. Alternatively, if you want to start from scratch, launch PowerPoint. Most of the time, PowerPoint will open with a new slide in a presentation, you can change the slide layout to Blank by selecting the Home tab | Layout | Blank option. Then, insert an open shape and select it.
  3. We selected a Line shape, as shown in Figure 3. Selecting the shape brings up the Drawing Tools Format tab in the Ribbon, as shown highlighted in red within Figure 3. Activate this Ribbon tab by clicking on it.

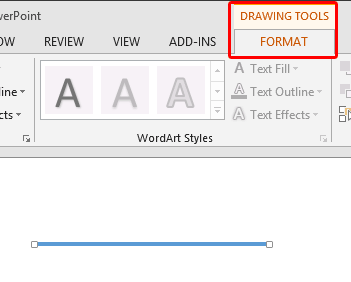

  4. Line shape inserted and selected
    Figure 3: Line shape inserted and selected
  5. Note: The Drawing Tools Format tab is a contextual tab. These tabs are special tabs in the Ribbon that are not visible all the time, they only make an appearance when you are working with a particular slide object which can be edited using special options.
    Tip: You can change the weight of the outline in PowerPoint 2013. Remember that the size of the arrowhead is related to the weight (thickness) of the line, and somewhat thicker lines work best for arrowheads.
  6. Within the Drawing Tools Format tab, click the Shape Outline button (highlighted in red within Figure 4). This bring up the Shape Outline drop-down gallery, as shown in Figure 4. From the Shape Outline drop-down gallery, choose Arrows to bring up the Arrows sub-gallery, as shown in Figure 4.

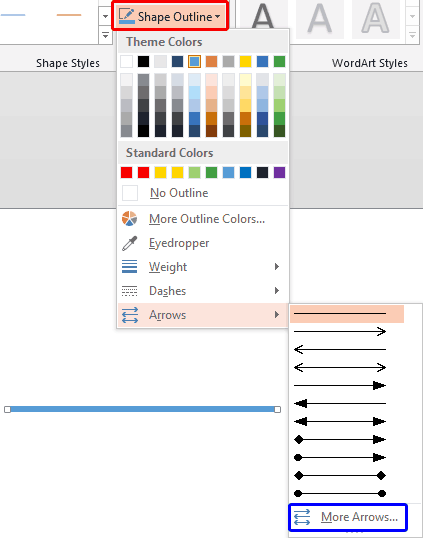

  7. Shape Outline drop-down gallery
    Figure 4: Shape Outline drop-down gallery
  8. Within the Arrows sub-gallery, choose any of the available arrow styles. Alternatively, choose the More Arrows option highlighted in blue within Figure 4, above. This summons the Format Shape Task Pane, as shown in Figure 5.

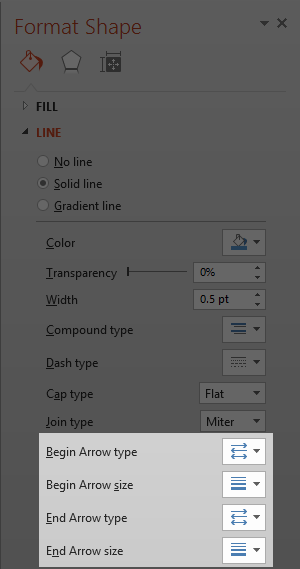

  9. Arrow settings options within Format Shape Task Pane
    Figure 5: Arrow settings options within Format Shape Task Pane
  10. Within the Figure 5 above all options except those concerned with arrows have been faded out to highlight the un-faded areas referred on this page, your pane will not have those areas faded out. These other options have already been explained in the Formatting Outlines for Shapes tutorials for Weight and Dash Styles.
  11. You can customize your arrow style by changing the Begin Arrow type, the Begin Arrow size, the End Arrow type, and the End Arrow size.
  12. Figure 6 shows the Begin Arrow type drop-down, the End Arrow type drop-down has the same options. In both these drop-downs, you'll find options for 5 arrow styles, and a No Arrow option. You can choose any of these 5 styles. We have used Stealth Arrow style as you can see in Figure 6.
  13. Begin Arrow type options
    Figure 6: Begin Arrow type options
  14. You also have nine different choices regarding the size of the arrowhead, starting from Arrow L Size 1 to Arrow L Size 9 (letter L stands for left). Figure 7 shows you the Begin size drop-down, and not surprisingly, the End size drop-down offers the same options! But the only difference will be that the letter R, denoting Right will replace the letter L.
  15. Begin Arrow size options
    Figure 7: Begin Arrow size options
  16. After choosing required arrowhead style and size, you can see the line shape with arrowhead applied, as shown in Figure 8.
  17. Arrowheads applied to the line
    Figure 8: Arrowheads applied to the line
  18. Save your presentation often.
