Formatting Line Weight and Thickness for Shapes in PowerPoint 2013 for Windows

Change the weight attribute of shape outlines in PowerPoint 2013 for Windows. PowerPoint lets you create thin or thick lines, and compounded lines that combine two or three lines, and more.


Product/Version: PowerPoint 2013 for Windows

OS: Microsoft Windows 7 and higher

Learn PowerPoint

Learn how and why you should be Hiding Slide Titles in PowerPoint.

We have explained the basics of formatting shape outlines in PowerPoint 2013. Now we take you further ahead to explore how you can change line weight to make the outlines thinner and thicker. So why would you want to alter the weight of an outline? There are many reasons, more often than not, you may want a line that's almost invisible or very thin, this lets your audience focus on other areas. At other times when you want the attention of your audience to focus on a particular line, then you can do so by increasing its weight. In this tutorial, we will also cover compound lines such as those that encompass double or triple lines.

Weight is the thickness attribute of the shape outline. You can change the weight all the way from a hairline thin line to a chunky thick line. Figure 1 shows you some weight variations in outlines.

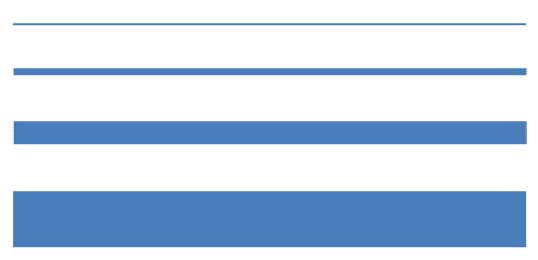

Width (weight) variations in outlines
Figure 1: Width (weight) variations in outlines

Tip: You can change the outlines for shapes (and borders for pictures) in PowerPoint 2013. You can also add a shape outline to an inserted movie using the same options!

Follow these steps to change the outline weight of a shape:

  1. Open your presentation and select the shape that you want to format.
  2. Alternatively, if you want to start from scratch, launch PowerPoint. Most of the time, PowerPoint will open with a new slide in a presentation, you can change the slide layout to Blank by selecting the Home tab | Layout | Blank option. Then, insert a shape and select it.
  3. We selected a Rectangle shape, as shown in Figure 2. Selecting the shape brings up the Drawing Tools Format tab in the Ribbon, as shown highlighted in red within Figure 2. Activate this Ribbon tab by clicking on it.
  4. Drawing Tools Format tab of the Ribbon
    Figure 2: Drawing Tools Format tab of the Ribbon
  5. Note: The Drawing Tools Format tab is a Contextual tab. These tabs are special tabs in the Ribbon that are not visible all the time. They only make an appearance when you are working with a particular slide object which can be edited using special options.
  6. Within the Drawing Tools Format tab, click the arrow part of the Shape Outline button (highlighted in red within Figure 3). This bring up the Shape Outline drop-down gallery, as shown in Figure 3. From the Shape Outline drop-down gallery, choose Weight to bring up the Weight sub-gallery, as shown in Figure 3.

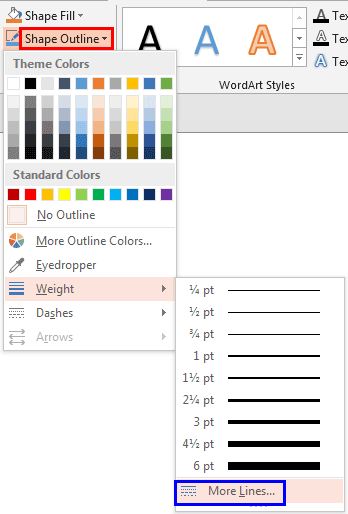

  7. Shape Outline drop-down gallery
    Figure 3: Shape Outline drop-down gallery
  8. Within the Weight sub-gallery, choose any weight (thickness) value for the selected shape. Or choose the More Lines as shown highlighted in blue within Figure 3, above.
  9. This opens the Format Shape Task Pane that you can see in Figure 4. Make sure that the Fill tab is selected (highlighted in red within Figure 4), then select the Line options. Within this section, select the Solid line radio button (highlighted in blue within Figure 4).

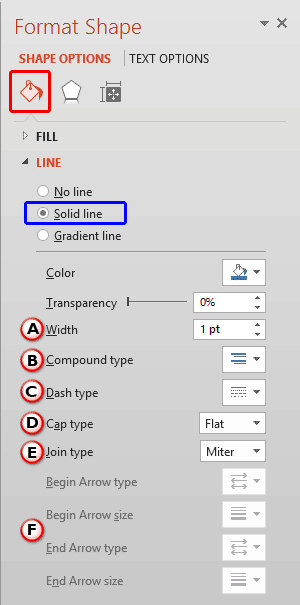

  10. Format Shape Task Pane with Line options
    Figure 4: Format Shape task pane with Line options
  11. The Format Shape task pane provides lot of options to format the line, but we will only explore options related to the weight attribute on this page as marked in Figure 4, above:
  12. A. Width

  13. Adds a weight for the selected line in points. You can opt to create a really thick line, even 100 pt or more! However, choose something that works best for you. You can either type in the outline width in the box, or use the up and down arrow buttons in the control to adjust the outline width. You will see an immediate preview within your selected shape on the slide.
  14. B. Compound type

  15. Selecting this option reveals a drop-down from where you can choose any of the compound types available for outlines, as shown in Figure 5. Note that compound lines in PowerPoint are limited to two or three lines compounded to each other. You need to choose the compound line options that PowerPoint provides and cannot create your own custom compound line.
  16. Compound types for outlines
    Figure 5: Compound types for outlines
  17. C. Dash type

  18. This option allows you to apply dash attribute to the shape outline. Learn more about Formatting Outlines for Shapes (Dashes) in PowerPoint 2013 for Windows tutorial.
  19. D. Cap type

  20. This allows you to choose between a Square, Round, or Flat line end type, as shown in Figure 6. This option only works with outlines within open shapes. Also, if you apply this option to a dashed line, it influences all individual dashes within the line.
  21. Cap types
    Figure 6: Cap types
  22. E. Join type

  23. This allows you to choose between Round, Bevel, and Miter joins, as shown in Figure 7. This influences the joins in an outline such as a corner of a triangle or rectangle.
  24. Join types
    Figure 7: Join types
  25. F. Arrow settings

  26. Arrow settings work only with outlines used as open shapes. We have covered this in our Formatting Arrows (Arrowheads) in PowerPoint 2013 tutorial.
  27. After choosing required shape outline attributes you can see the changed shape outline, as shown in Figure 8. Note that the Rectangle shape which was selected earlier with outline weight increased to 6 pts.
  28. Shape with outline weight changed
    Figure 8: Shape with outline weight changed
  29. Don't forget to save your presentations often.
