Motion Path Animations in PowerPoint 2016 for Windows

The three basic animation types in PowerPoint: entrance, emphasis, and exit animations are something we have already explored. The fourth animation type is called Motion Path animations, and this is something more advanced in nature than the basic animation types explored so far. Motion Path animations determine the route (path) and the direction in which the animated slide object moves across or around on the slide. For example, you can move the slide object up, down, right, or left; on a preset or created motion path.

The Add Animation drop-down gallery of the Ribbon in PowerPoint 2013 includes some the Motion Path animations as shown highlighted in red within Figure 1, below. Use the scroll-bar to scroll down so that you can see them.

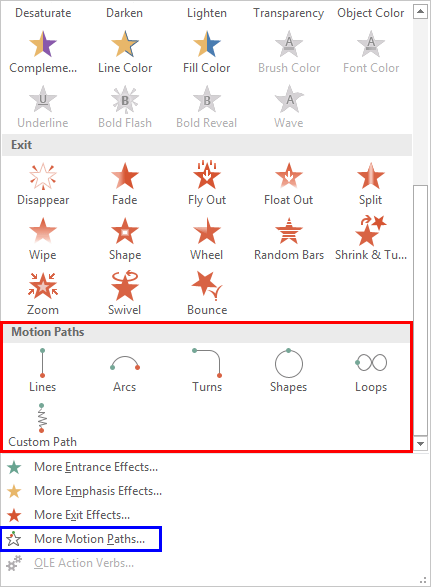

Figure 1: Motion Path animations

Among Motion Path animations that you see within Add Animation drop-down gallery, the Custom Path type is used to create your own Motion Paths. Refer to our Drawing Custom Motion Path in PowerPoint 2013 tutorial to learn more. If you want to explore more Motion Path animations that PowerPoint offers, select the More Motion Paths option within the Add Animation drop-down gallery as shown highlighted in blue within Figure 1, above. This opens the Add Motion Path dialog box as shown towards left in Figure 2.

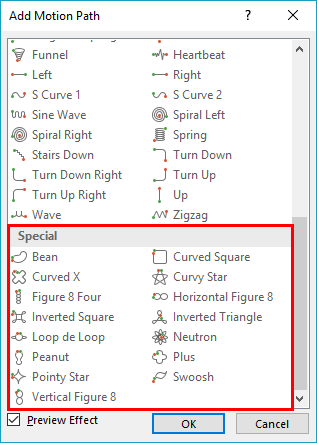

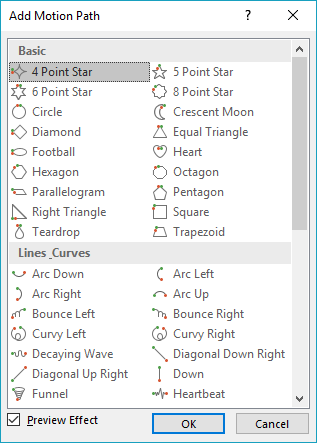

Figure 2: Add Motion Path dialog box

Within the Add Motion Path Effects dialog box you can see the Motion Path Effects divided into 3 categories:

Basic
Lines_Curves
Special

If you can't see Special which is the last category (highlighted in red within Figure 2, above), just scroll down as shown towards right within Figure 2, above.

Basic Motion Paths are simple routes representing various basic Shapes such as Polygons, Starts, Circle, Heart, etc. Lines_Curves includes Motion Paths such as Arcs, Lines, Curves, Spirals, Turns, Waves, Zigzag etc. Special category Motion Paths make your slide object to travel in some special paths such as a Neutron, Bean, Inverted Square, Swoosh, etc.

The embedded sample presentation below shows all the Motion Path animation effects available in PowerPoint 2013

Tip: You can also learn how to add an animation in PowerPoint 2013, and the types of animation that PowerPoint provides.
