Smart Connectors in PowerPoint 2010 for Windows

Learn what Smart connectors are, and how they are different from conventional lines in PowerPoint 2010 for Windows. These connectors are linked to the slide objects they are connected with.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows XP and higher





Connectors are line-like shapes found, not surprisingly within the Lines category of the Shapes gallery in PowerPoint 2010 for Windows, as shown in Figure 1. These connectors create a link (or join) between shapes or any other slide objects to show a relationship. These connectors are linked to slide objects, and they move automatically when the linked objects are moved. That's the reason why they are called "Smart connectors". You'll learn more about all the other smart things these connectors do in subsequent tutorials of this series.

Lines in Shapes gallery

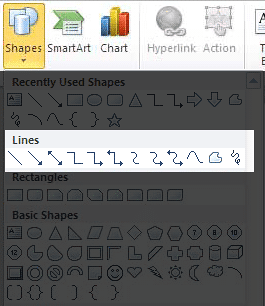

Figure 1: Lines in Shapes gallery

Since the connectors are a variant of lines, they don't have any fill attributes. However, all the outline formatting options available in PowerPoint 2010 for Windows can be applied to connectors including line thickness, dash styles, arrowheads, etc.

Although connectors look like conventional, simple lines, there is a fundamental difference because unlike simple lines, connectors "connect" two shapes or any other slide objects to each other. Move any of the slide objects"connected" to the connector, and the connector resizes and repositions automatically. So, which of the variants in the Lines category of the Shapes gallery (see Figure 1 above) are connectors? All variants except the last three can act as both simple lines or connectors—how they act depends upon how you place or draw them.

Tip: If you want a line to act as a connector, you'll have to first insert/draw the shapes or other slide objects, and then add the connectors that link between them. Remember that you cannot add a slide object to an existing connector—rather you can only add a connector to an existing slide object.

Figure 2 shows a connector sample that was created using just rectangles and lines (that act as connectors).

Sample diagram using closed shapes and connectors
Figure 2: Sample diagram using closed shapes and connectors

Learn more about the types of connectors, and how you can draw them in subsequent tutorials.
