Action Buttons in PowerPoint 2013

Learn how to insert an Action button on a slide in PowerPoint 2013.


Product/Version: Microsoft PowerPoint 2013
OS: Windows 7 and higher

Shapes may look basic or even primitive, but they are the building blocks of almost anything you create on your PowerPoint slides. Fortunately, you are not deprived of choices because PowerPoint provides plenty of shapes, neatly categorized into nine types. Among all the shape types, Action Buttons behave differently -- these are essentially rectangular shapes that are used as navigation aids to navigate between slides, or even another presentation, document, or a web URL. You insert an Action Button in almost the same way as you insert any other shape:

  1. Launch PowerPoint 2013. Most of the time PowerPoint will open with a new slide in a presentation that you may use in this tutorial. Alternatively, you can open any existing presentation and navigate to the slide where you want to add an Action button.
  2. Select the Insert or Home tab of the Ribbon, and then click the Shapes button to access the Shapes drop-down gallery that you can see in Figure 1.

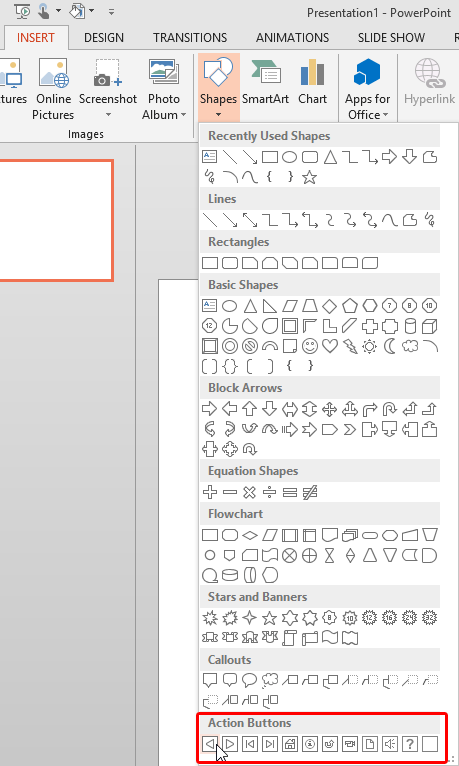

    Action Buttons category within the Shapes drop-down gallery
    Figure 1:
    Action Buttons category within the Shapes drop-down gallery

    Within the Shapes drop-down gallery, the bottommost category is called Action Buttons (highlighted in red within Figure 1, above) in which you will find 12 variants of Action Buttons that serve different, default purposes. While some Action Buttons sport icons that remind you of VCR style Play, Rewind, or Forward buttons, others include iconography for concepts such as Home, Sound, Help, Information, etc.
  3. Click to select the Action Button of your choice, as shown in Figure 1 above. This will change the cursor to a cross hair as shown in Figure 2.

    Cursor changes to a cross hair to indicate shape insertion mode
    Figure 2: Cursor changes to a cross hair to indicate shape insertion mode
  4. Place this cursor on your slide where you want to insert the selected Action Button (refer to Figure 2 above). Now, either click once on the slide to place the Action Button, or click and drag on the slide to create an instance of the Action Button in the size you desire. As soon as the Action Button is placed on the slide, the Action Settings dialog box pops up, as shown in Figure 3.

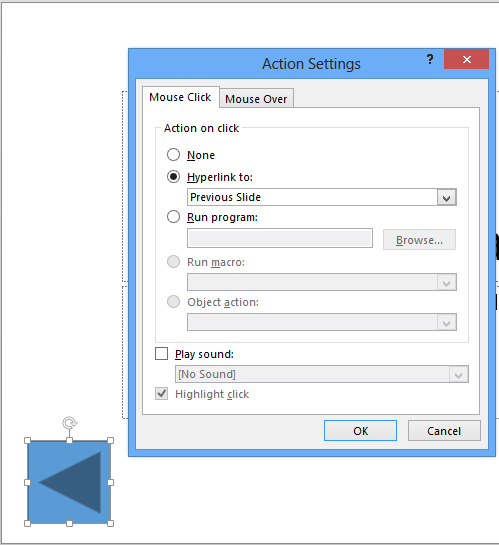

    Action Settings dialog box appears when an Action Button is inserted on the slide
    Figure 3: Action Settings dialog box appears when an Action Button is inserted on the slide

    Within the Action Settings dialog box, you can change the default behavior of the inserted Action Button. For now, just close the dialog box by clicking the OK button. Notice the new Action Button on your slide, as shown in Figure 4.

    Action button inserted
    Figure 4: Action button inserted

    Since an Action Button is essentially a shape, you can change its appearance by using techniques explained within the PowerPoint Shapes and the Fills, Lines, and Effects sections on this site.
  5. Save your presentation.
