Advanced Picture Fill Options in PowerPoint 2010 for Windows

Explore advanced picture fill options in PowerPoint 2010 for Windows. These options let you work with transparency, tiling, offsets, and rotation.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows XP and higher




Learn PowerPoint

Explore Timelines that are Different – 03.



This page is a continuation of the tutorial where we showed you how you could add picture fills to shapes in PowerPoint 2010. In this tutorial, we'll just cover more advanced options for Picture Fills in PowerPoint 2010 for Windows.

Before you start, we are assuming you already have a shape filled with a picture. Then right-click the shape, and choose the Format Picture option. This opens the Format Picture dialog box, as shown in Figure 1, within the dialog box choose the Fill tab, and you'll see something similar to Figure 1.

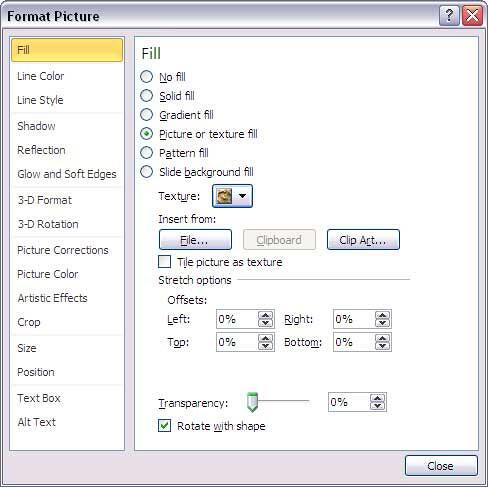

Format Picture dialog box
Figure 1: Format Picture dialog box

You'll find plenty of fill options within the Format Picture dialog box, but for this tutorial we'll only cover the options which work for Picture Fills, highlighted in red within Figure 2.

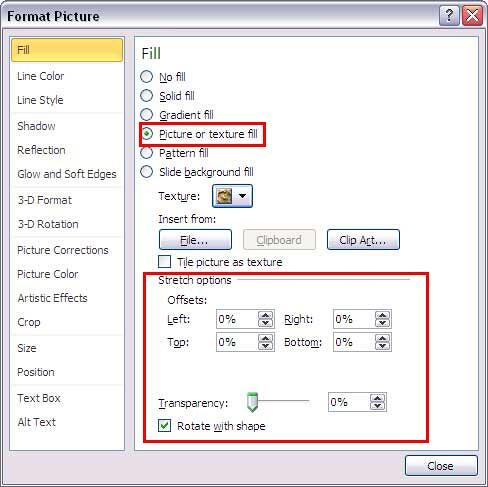

Stretch options in the Format Picture dialog box
Figure 2: Stretch options in the Format Picture dialog box

Make sure that the Picture or texture fill radio button is selected, this indicates your selected shape uses this fill type. Thereafter, glance at the Stretch options in lower half of this dialog box. All the options in this area are explained below:

1. Offsets

There are four (left, right, top, and bottom) offset adjustments in percentage values that enable you to adjust the picture edges along the shape edges. Tweak as required, if you don't like the results, you can set all these offset values back to their default 0% values.

2. Transparency

Use the slider to reduce (or increase) the transparency of the shape's Picture Fill.

3. Rotate with shape

If this checkbox is selected, you set the Picture Fill to rotate in sync with the shape's rotation value.
