Tiling Options in PowerPoint 2016 for Windows

Explore tiling options for texture fills in PowerPoint 2016 for Windows. Learn how you can use the offset, scale, align, and mirror options to create better tiling.


Author:

Product/Version: PowerPoint 2016 for Windows

OS: Microsoft Windows 7 and higher




Learn PowerPoint

Explore 7 Key Tips to Using PowerPoint.



Tiling options are available when you add texture fills to shapes or even use a picture as a fill to a shape. Tiling can really make a difference to your shape fill, just play around with the tiling options explained in this tutorial.

We are assuming you already have a shape filled with a texture. Right-click the shape, and choose the Format Picture option, as shown in Figure 1.

Format Picture option to be selected alt="Format Picture option to be selected" />
Figure 1: Format Picture option to be selected

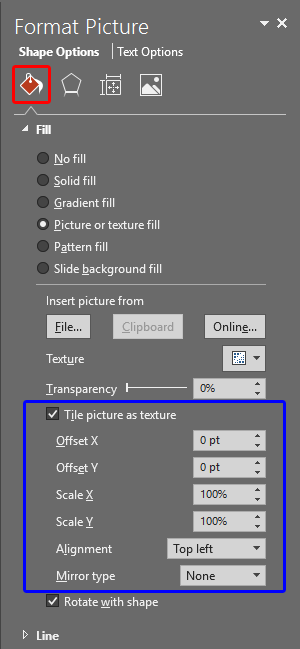

This opens the Format Picture Task Pane that you can see in Figure 2. Make sure you select the Fill tab (highlighted in red within Figure 2). Then select the Picture or texture fill radio button as shown in Figure 2.

Format Picture Task Pane
Figure 2: Format Picture Task Pane

Make sure that you select the Tile picture as texture check-box (refer to Figure 2, above). You'll find several Tiling options for the texture fill of the selected shape (highlighted in blue within Figure 2, above):

Offset X and Offset Y offset the alignment of the filled in texture, as you can see within the sample squares in Figure 3.

Offset samples
Figure 3: Offset samples

Scale X and Scale Y change the size of the filled in texture horizontally and vertically, as shown within the sample squares in Figure 4.

Scale samples
Figure 4: Scale samples

Alignment changes the anchor point from which the texture is tiled over the filled shape. Figure 5 shows samples of all the 9 alignment possibilities.

Alignment samples
Figure 5: Alignment samples

Mirror type allows you to tile a texture while flipping alternative tile areas horizontally or vertically, or in both directions as shown in Figure 6.

Mirror samples
Figure 6: Mirror samples

To see samples of all the Tiling options, see the online presentation below:

Click below to view this presentation on SlideShare

Click below to view this presentation on YouTube
