Eyedropper Fill in PowerPoint 2016 for Windows

Learn how the Eyedropper fill option works in PowerPoint 2016 for Windows. This option can be helpful if you need a shape with no fill, but just a thin outline.


Author:

Product/Version: PowerPoint 2016 for Windows

OS: Microsoft Windows 7 and higher




Learn PowerPoint

How Do I Hide the Navigation Buttons That Appear in PowerPoint’s Slideshow View?



Although PowerPoint allows you to choose almost any color you want, it is often difficult to choose the same color for text as the grass or the sky in a picture on the same slide! PowerPoint 2016 for Windows Eyedropper option enables you to pick an exact color from anywhere, sometimes even from somewhere outside PowerPoint! Even better, when you are picking up the color from a source, you get to see the color preview as well as the RGB value of the color you are picking.

In this article, we will explore how you can copy a color from a picture and use it as the fill and outline color of a shape. In the second part of this tutorial, we will explore advanced Eyedropper options such as copying text colors, and also how you can copy color from an object outside PowerPoint.

Follow these steps to learn how to use the Eyedropper option to copy colors for shapes:

  1. Open or create a slide which already has text or shapes, and at least one picture, as you can see in Figure 1.

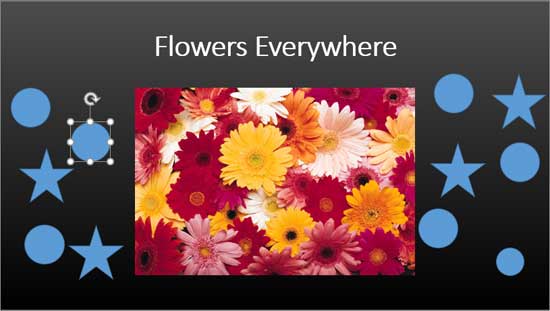

  2. Slide with shapes, text, and picture
    Figure 1: Slide with shapes, text, and picture
  3. Double-click any of the shapes to activate the Drawing Tools Format tab, as shown highlighted in red within Figure 2.

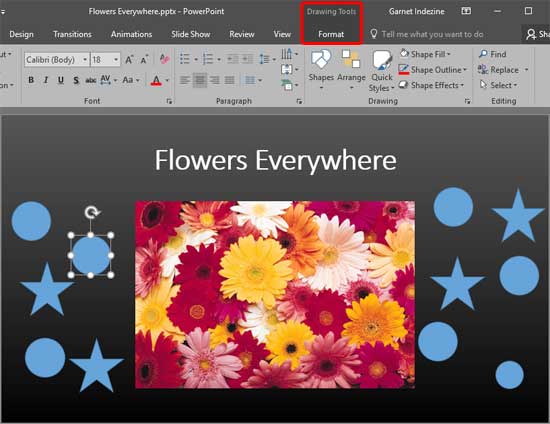

  4. Drawing Tools Format contextual tab
    Figure 2: Drawing Tools Format contextual tab
  5. Note: The Drawing Tools Format tab is a Contextual tab. Contextual tabs are special tabs in the Ribbon that are not visible all the time. They make an appearance only when you are working with a particular slide object which can be edited using the options within these tabs.
  6. Within Drawing Tools Format tab, click the downward pointing arrow on the right side of the Shape Fill button, as shown highlighted in red within Figure 3.

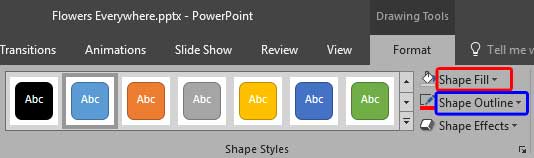

  7. Shape Fill button
    Figure 3: Shape Fill button
  8. This brings up the Shape Fill drop-down gallery, as shown in Figure 4. Within the drop-down gallery, select the Eyedropper option (see Figure 4 again).

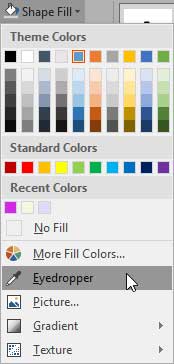

  9. Eyedropper option selected
    Figure 4: Eyedropper option selected

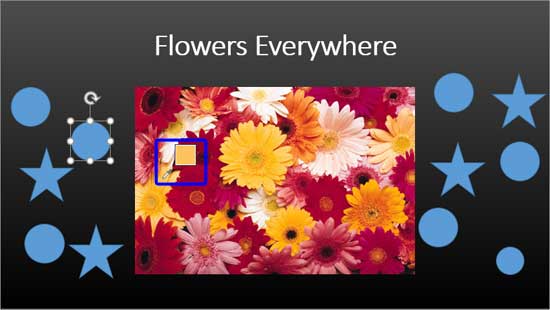

  10. As soon as the Eyedropper option is selected, the cursor changes to an eyedropper. Place your cursor over the color in the picture which you want to pick as a fill for your shape. As you move your cursor pointer over the color you want to pick you'll see a Live Preview of the color beneath within a square, as you can see highlighted in blue within Figure 5.
  11. Eyedropper cursor showing live preview of color
    Figure 5: Eyedropper cursor showing live preview of color

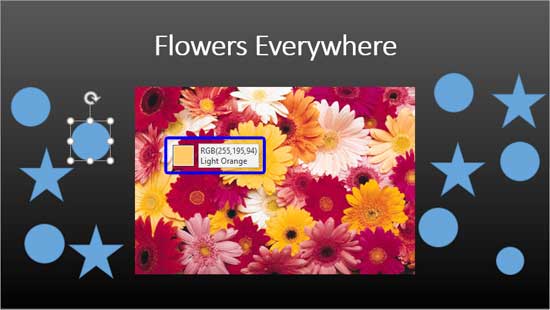

  12. Hold your cursor at any position for a while, and you'll see the RGB (Red Green Blue) color coordinates and color name, as shown highlighted in blue within Figure 6.
  13. Eyedropper cursor showing RGB values of selected color
    Figure 6: Eyedropper cursor showing RGB values of selected color
  14. To apply the selected color as a fill for your shape, just click on the shape. This applies the color to the selected shape, as you can see in Figure 7.

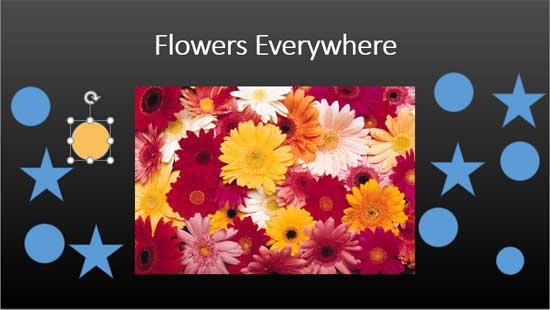

  15. Color applied to shape from Eyedropper
    Figure 7: Color applied to shape from Eyedropper
  16. In the same way, you can change the fill color of other shapes on the slide. Note that you can easily select multiple shapes and then apply the same fill color to all selected shapes. Figure 8, below shows different colors picked from the picture and applied to shapes as fills.

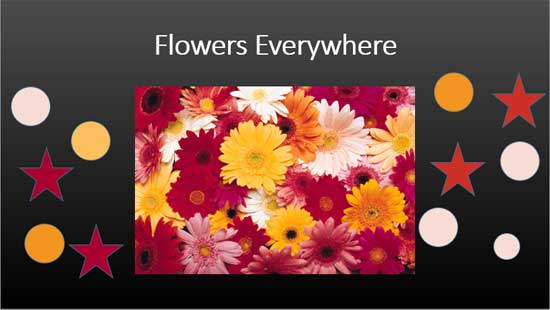

  17. Shapes filled with various colors selected from the picture
    Figure 8: Shapes filled with various colors selected from the picture
  18. Notice that the Shape Fill drop-down gallery now shows all the picked colors under Recent Colors section (highlighted in red within Figure 9). Compare Figures 9 and 4.

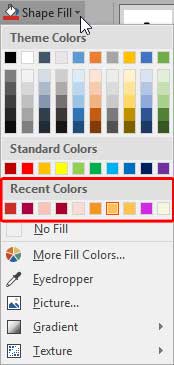

  19. Picked colors under Recent Colors section
    Figure 9: Picked colors under Recent Colors section
  20. Similar to how you apply a fill color, you can also apply an outline color to your shapes. Just click the downward pointing arrow on the right side of Shape Outline button (highlighted in blue within Figure 3, above). This will bring up the drop-down gallery you see in Figure 10, below. Note the Eyedropper option available here.

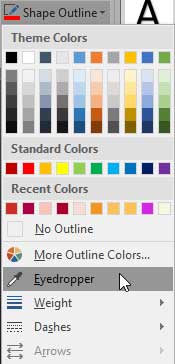

  21. Shape Outline drop-down gallery
    Figure 10: Shape Outline drop-down gallery
  22. Figure 11, below shows the same slide after we picked up colors for shape fills and outlines. All these colors were sourced from the picture on the slide. Compare Figures 1 and 11.
  23. Shape outlines applied with various colors selected from the picture
    Figure 11: Shape outlines applied with various colors selected from the picture
  24. Make sure to save your presentation.

In the next tutorial of this series, we explore how you can pick colors for text using the Eyedropper option. We also show how you can copy color from outside PowerPoint, such as your desktop, a web site, or anywhere else.

Note: You are not limited to pick colors from the area only within PowerPoint, you can also pick colors anywhere on your screen. To do that after clicking the Eyedropper option, click and hold the mouse button as you drag your mouse to the color you want to pick.
