Chart Elements in PowerPoint 2010 for Windows

Learn about chart elements in PowerPoint 2010 for Windows. These chart elements include Series, Categories, Axes, Plot area, Legend, Chart Title, and many more.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows XP and higher



Learn PowerPoint

PowerPoint Add-in: Pixabay Images



Charts in PowerPoint comprise several elements that we call chart elements. Typical chart elements include:

  • Series (and this could be one or more Series with values)
  • Categories (again this can be one or more Categories)
  • Axes (horizontal, vertical, and in some cases, a third axis as well)
  • Plot area (the active chart area)
  • Legend
  • Chart Title
  • And many more...

In this tutorial, we'll learn more about these individual chart elements. Before starting, we are assuming you already have a chart inserted on a PowerPoint slide. If not, check out this page that shows how you can place a new chart on a slide in PowerPoint 2010 for Windows.

Selecting Chart Elements

Follow these steps to select individual chart elements in PowerPoint 2010 for Windows:

  1. Select the chart, which activates Chart Tools tabs on the Ribbon, as shown in Figure 1.
  2. Chart Tools in PowerPoint
    Figure 1: Chart Tools in PowerPoint
  3. You can select any individual chart elements, such as the plot area, columns, legend, etc. However, with so many chart elements close to each other, and sometime overlapping each other, it's easier to use another selection process.
  4. Select the Chart Tools Layout tab of the Ribbon (see Figure 2).
  5. Chart Tools Layout tab
    Figure 2: Chart Tools Layout tab
  6. Note: The Chart Tools Design, Layout and Format tabs are contextual tabs. These tabs are special tabs in the Ribbon that are not visible all the time. They only make an appearance when you are working with a particular slide object which can be edited using special options.
  7. Under the Current Selection group (extreme left on the Ribbon tab), you'll find a drop-down list of chart elements, as you can see highlighted within Figure 3. This contains a listing of all chart elements in the active chart. Selecting individual elements in this list also selects that element within the actual chart.
  8. Chart elements in the dropdown list
    Figure 3: Chart elements in the drop-down list
  9. Note: Figure 3 displays the chart elements for a typical column chart. If your chart type is different, you will see different chart elements.
  10. Select any element in the drop-down list and click Format Selection option right below the same drop-down (see Figure 4). For example, if you have selected Plot Area in the drop-down list, clicking Format Selection will give you options to format the Plot Area.
  11. Format Selection
    Figure 4: Format Selection
  12. With the Plot Area chart element selected, choosing the Format Selection option brings up Format Chart Area dialog box, as shown in Figure 5. If you had some other chart element selected, the dialog box that you would end up with would have options pertaining to your selection. So, this is all very logical and intuitive.
  13. Format Chart Area dialog box

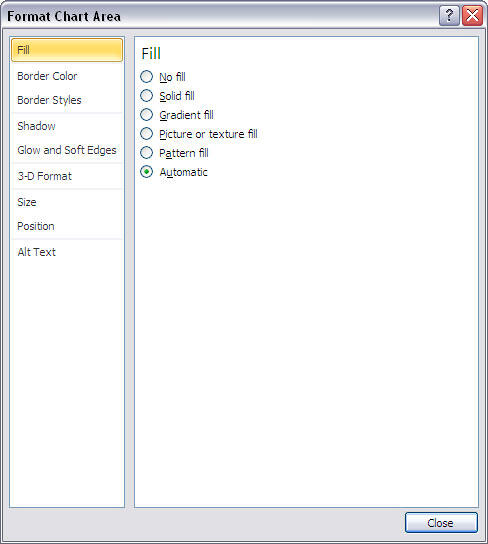

    Figure 5: Format Chart Area dialog box
  14. Format the Plot Area (or another chart element you may have selected) as required, and then click Close to get back to your chart.

Chart Elements

Although different charts have differing chart elements, these are the common chart elements found in almost all chart types:

1. Axes

Most charts have two axes:

  • The bottom, horizontal axis (X axis), and
  • The left, vertical axis (Y axis)

Some charts may also have a Z axis. Learn more about PowerPoint's chart axes.

2. Plot Area

The area within the axes is known as the plot area. The plot area includes the series, gridlines, etc. And the legend and titles are normally placed outside the plot area.

3. Gridlines

Most of the time, you may see horizontal gridlines but vertical gridlines are also available, and both of them can be formatted as required.

4. Titles

There are two types of titles:

  • Chart title, by default placed above the chart, and
  • Axis titles, placed by default besides the axes.

5. Datasheet mode

Getting into datasheet mode in PowerPoint 2010 translates to launching Microsoft Excel with your data available to edit, add, remove, etc. This Excel sheet contains the values based on which the chart is created. In case you find yourself in a rare situation where you have PowerPoint 2010 installed without Excel 2010, then you'll see the regular Microsoft Graph datasheet that was the norm in the days of PowerPoint 2003 and previous versions.

6. Series

Every column of data within the data that's shown as a component of the chart is known as a Series.

7. Categories

A set of Series can be represented as a Category.

8. Values

These are the individual figures that identify each series. The font and placement for these can be formatted.

9. Legends

This is a box placed normally outside the plot area which provides captions (and/or color coding) to the series, and helps identifying the series. Legends are automatically created with the chart itself, although you can opt to remove the legend.
