Shapes in PowerPoint 2013 are very useful in representing design or content, or
in showing a process or a sequence. However, when you create a slide that has such many shapes that make a framework, you'll find that most of
your shapes may be of the same size and other attributes -- Figure 1 shows a sample where the same shape has been used multiple times.
Figure 1: Same shape used for multiple times
Yes, you can go ahead and
insert the same shape into PowerPoint repeatedly, but that will
consume much of your productive time that you could have used elsewhere! There are quicker alternatives for duplicating shapes that can be
learned if you follow these guidelines:
- Select the shape, and press the Ctrl key
so that your cursor now has a plus sign, as shown in Figure 2. This plus sign in the cursor indicates that a copy of the
selected shape (or a selection of multiple shapes) will be created when you drag it and drop it elsewhere on the slide. Once your shape has
been duplicated, you can release the Ctrl key.
Figure 2: Changed cursor
Holding the Ctrl key, drag the shape anywhere on the slide to create a copy (see Figure 3).

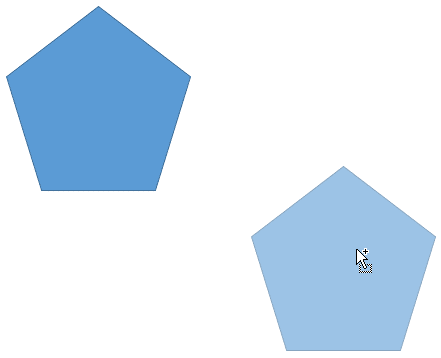

Figure 3: Create duplicate of the selected shape
- As you can see in the previous example, you can drag a duplicated copy of the shape anywhere on the slide -- but sometimes you want a copy
of the selected shape to be created in the same horizontal or vertical plane as the original -- to do that,
select the shape you want to duplicate, press the
Ctrl and Shift keys together and drag the shape to create a copy -- you will find that PowerPoint constrains
your dragging so that new copies of the shape are only created exactly up, down, left, or right in 90° increments. In
Figure 4, you can see a copy of the shape created by Ctrl+Shift dragging the shape upwards.

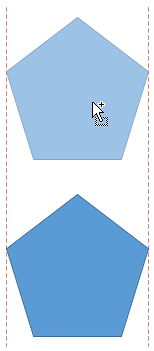

Figure 4: Shape copied exactly upwards at 90° (perpendicular to the original)
If you press Ctrl+Shift, and drag the selected shape towards right, you create a copy of the shape
at 0°, as shown in Figure 5.
Tip: Do you see the red dashed lines when dragging shapes with both the
Ctrl and
Shift keys
pressed? These are
Smart Guides -- and they help you position your slide objects accurately in relation to another object --
learn more in our
Smarter Guides in PowerPoint 2013
tutorial.

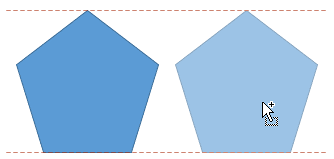

Figure 5: Shape copied at 0°
Ctrl+Shift drag the selected shape towards left to create a copy of the shape at 180°, as shown in
Figure 6.

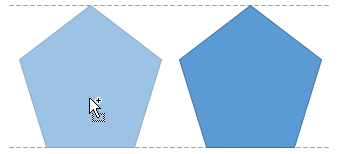

Figure 6: Shape copied at 180°
Ctrl+Shift drag the selected shape to the bottom to create a copy of the shape at 270°, as shown in
Figure 7.

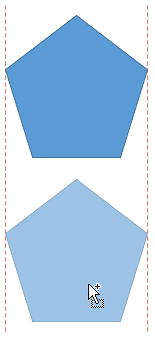

Figure 7: Shape copied at 270°
Release the Ctrl and Shift keys when you are done duplicating.
Tip: You can select multiple shapes and Ctrl drag (or Ctrl+Shift drag) to
create copies of all selected shapes at one go. Also, these dragging and duplicating options work with anything you can select on a slide in
PowerPoint, and is not limited to shapes alone.
