Basic Flowcharts in Microsoft Office for Mac

Learn how to create a quick flowchart in Microsoft Office applications such as Word, Excel, and PowerPoint. It much easier than you would imagine with this quick tutorial.


Author:

Product/Version: PowerPoint

OS: Mac OS X






Many dedicated programs do only flowcharts, and although Microsoft creates another program called Visio for Windows users that's more flowchart savvy than mainstream Microsoft Office programs, there's no version of Visio available for Mac users. And it really doesn't matter too much if all you need to do is create a basic flowchart. Mainstream Office programs such as Word, Excel, and PowerPoint can create flowcharts easily, and possess have all abilities and options you need to create almost any type of flowchart. What's more, you don’t have to buy and learn yet another program to do something that's so simple!

Actually, adding a flowchart within a Microsoft Office program is as simple as adding a few shapes. We will use Microsoft PowerPoint 2011 for Mac in this example but you could really be using Word or Excel versions of Office 2011 to do the same task,

If you already need to create a flowchart in Word, Excel, or PowerPoint—then the choice has already been made for you! Alternatively, here are some thoughts that will help you decide which of these three programs work best for your flowcharts:

  • Word is great for simple flowcharts with few shapes as long as they all fit within the page constraints of Word.
  • PowerPoint has similar slide constraints like Word's page constraints, but for larger flowcharts, you can use PowerPoint's hyperlinking options that let you spread the same flowchart over multiple slides.
  • Excel’s large screen real estate within each workbook does make it a great home for detailed or complicated flowcharts.

Follow these steps to get started:

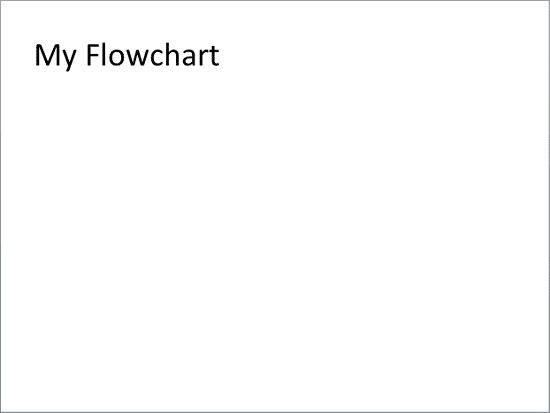

  1. Let’s start with a blank, new slide that contains a slide title and nothing else, as shown in Figure 1, below. If you are using Word, just substitute the blank slide area with a blank area on your document. Excel users can similarly use an available, blank range of cells in their workbook.
  2. Empty slide with a title
    Figure 1: Empty slide with a title

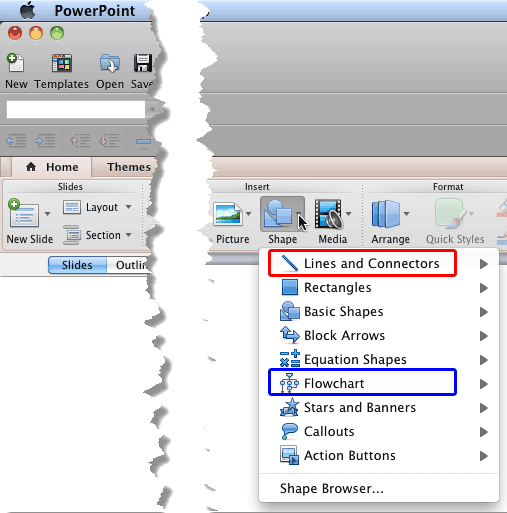

  3. In PowerPoint or Word, access the Home tab of the Ribbon, locate the Insert group and within this group, and click the Shape button. Doing so brings up the Shape drop-down gallery, as shown in Figure 2, below.
  4. Shape drop-down gallery
    Figure 2: Shape drop-down gallery

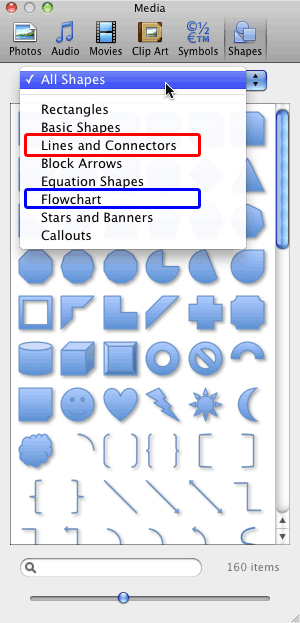

  5. In Excel (or even Word and PowerPoint), select the Insert | Shape menu option. This brings up a Media browser window, with the Shapes tab active, as shown in Figure 3.
  6. Media browser
    Figure 3: Media browser
  7. There are plenty of shapes that are arranged in various categories, to create flowcharts and only two of these categories matter to you. These are the Lines and Connectors and Flowchart categories, highlighted in red and blue respectively within Figures 2 and 3, above.
  8. Let us now explore the various shapes available within these categories. First let us explore the Flowchart category. There are 28 flowchart shapes available here. Hover your cursor over any of these shapes to see a tool tip that provides you with the name/description of the hovered shape (see Figure 4, below).

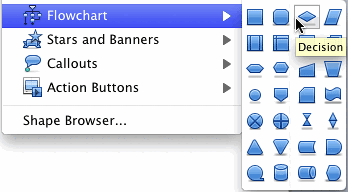

  9. Flowchart shapes are described within the tool tips
    Figure 4: Flowchart shapes are described within the tool tips
  10. Note: Want to know more about all the flowchart shapes? Look at our Flowchart Symbols: What They Represent? page.

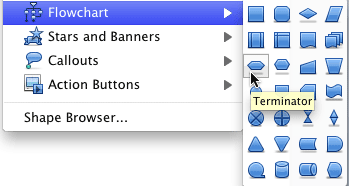

  11. Now, select the Terminator shape within the Flowchart shapes gallery (see Figure 5).
  12. Select the Terminator shape
    Figure 5: Select the Terminator shape
  13. Your cursor will turn into a crosshair. Drag and draw on your slide, document, or worksheet to place an instance of the terminator shape, as shown in Figure 6, below.
  14. Place a Terminator shape to start your flowchart
    Figure 6: Place a Terminator shape to start your flowchart
  15. With your terminator shape still selected, start typing. We just typed “Start”. Anything you type shows up within the flowchart shape, as shown in Figure 7, below.
  16. Text within your flowchart shape
    Figure 7: Text within your flowchart shape

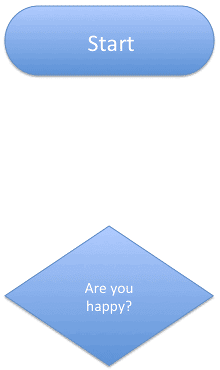

  17. Now add a shape to represent a decision. Choose the Decision (Diamond) shape option from the Flowchart category within the Shapes gallery (refer to Figure 4, above). Then drag and draw to place an instance of the shape on your slide (or document/sheet). Now type in some text—we just typed “Are you happy?”, as shown in Figure 8, below.
  18. Text that makes you happy?
    Figure 8: Text that makes you happy?

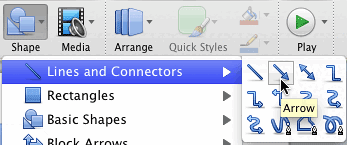

  19. We now need to link the Terminator shape to the Decision shape using a connector. To do so, access the Shape drop-down gallery (see Figure 2, above) and select the second shape within the Lines and Connectors category (see Figure 9, below). This shape is a connector that has an arrowhead at one end. We need the arrowhead end of the connector to be “connected” to your Decision shape and the non-arrowhead end will emanate from the Terminator shape. We won't get into details about how connectors work in this tutorial. You can learn more about connectors in our Using Flowchart and Connector Shapes Together in Office 2011 tutorial.
  20. Choose a connector with an arrowhead
    Figure 9: Choose a connector with an arrowhead

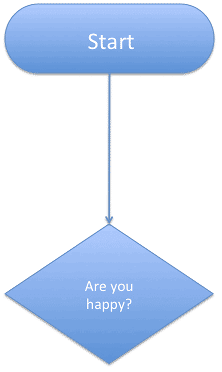

  21. Figure 10 shows a connector that links both our shapes. To make sure that your connector indeed “connects”, select any shape, and hit any of the arrow keys on your keyboard to nudge the shape—you will find that the connector reorients according to the new position of your moved shape.
  22. Shapes connected to each other
    Figure 10: Shapes connected to each other

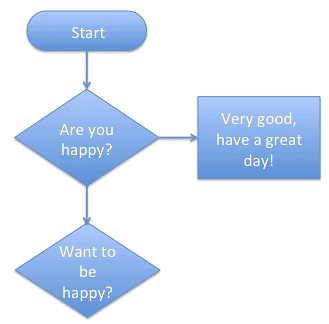

  23. Similarly, add two more shapes that connect to your existing Decision shape, as shown in Figure 11, below. We added a connected Process (rectangle) shape on the right and another connected Decision (diamond) shape at the bottom.
  24. More shapes added to the flowchart
    Figure 11: More shapes added to the flowchart
  25. As you can see within Figure 11, above, there are two options emanating from the “Are you happy?” decision shape. Decision shapes typically have more than one output emanating from them so as to create a decision. In this case, the decision will be based on whether the answer to the “Are you happy?” question is Yes or No. We therefore need to identify the two emanating connectors as Yes or No to make this flowchart sequence logical. To do so, you need to place text boxes with Yes and No captions next to the relevant connectors. This process is explained in our Formatting Connectors within Flowcharts in Office 2011 tutorial.
  26. Once you add Yes and No captions to your connectors, your flowchart will look similar to the one shown in Figure 12, below.

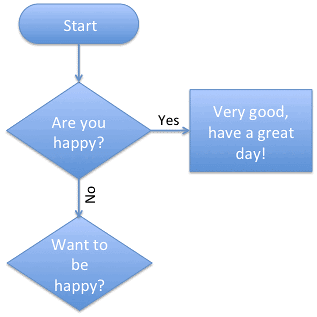

  27. Flowchart with Yes and No captions
    Figure 12: Flowchart with Yes and No captions

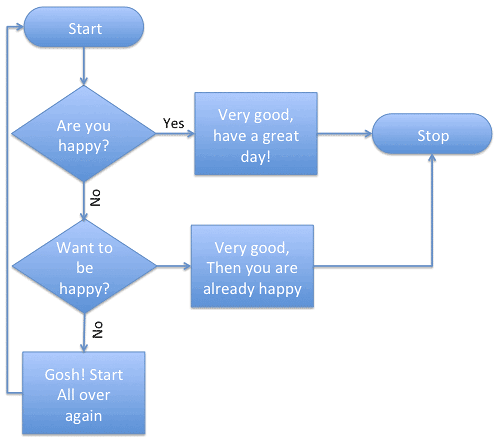

  28. Continue adding flowchart shapes and link them with connectors. Finally, you will need to add a “Stop” Terminator shape to complete your flowchart, as shown in Figure 13, below.
  29. Complete Flowchart
    Figure 13: Complete Flowchart
  30. Save your documents often!
