Lock and Unlock Paths for Motion Path Animations in PowerPoint 2010 for Windows

Learn how to lock and unlock motion paths for animations in PowerPoint 2010 for Windows. This concept of locking lets you work with the slide object and the motion path separately.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows XP and higher



Learn PowerPoint

Presentation Management 18: Lifecycle of a Presentation



When most people use Motion Path animations, the feature they probably use the least is locking and unlocking of Motion Paths. This may be because these options are not too well documented. However, it's good to know more about these options since locking and unlocking motion paths can help you create better animations. You have already learned how to add a motion path animation to any slide object by either using a preset motion path or by drawing your own custom motion path. We also explained the concept of reversing paths and opening and closing paths.

Now, follow these steps to learn how to access and use the Lock and Unlock options for Motion Paths in PowerPoint 2010 for Windows:

  1. First, add a shape to a blank slide, and provide it with a motion path animation. Refer to the adding a motion path or drawing a custom motion path tutorials to get started.
  2. Now, access the Animations tab of the Ribbon, and click on the Animation Pane button, as shown in Figure 1, below. Remember that this is a toggle button. So, if your Animation Pane is already visible, then clicking this button will make the Task Pane disappear.
  3. Animation Pane button within Animations tab

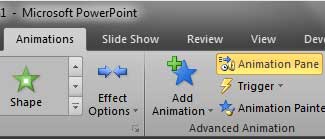

    Figure 1: Animation Pane button within Animations tab
  4. Doing so opens the Animation Pane, as shown highlighted in blue within Figure 2, below.
  5. Animation Pane within PowerPoint

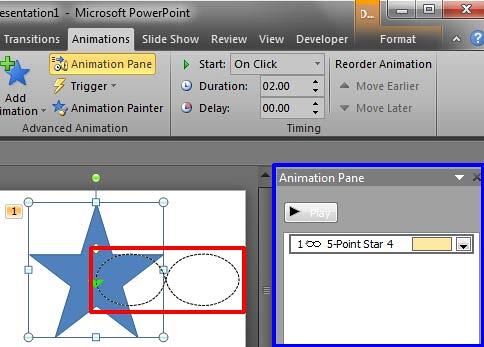

    Figure 2: Animation Pane within PowerPoint
  6. Select the shape that has a motion path animation applied, and you shall be able to see a dashed line representing the motion path, as shown highlighted in red within Figure 2, above.
  7. Now move the selected shape, and you'll discover that the motion path also moves along with the shape. In PowerPoint parlance, this means that the motion path is unlocked to the shape. We know that it does seems locked! Probably, the folks who created this meant locked to represent as "lock it in place on the slide" rather than "lock to the motion path."
  8. You can now unlock (lock in PowerPoint parlance) the motion path from the shape. To do so, ensure that the correct motion path animation is selected in the Animation Pane (crucial if you have more than one animation applied to a slide object). Within the Animation Pane right-click the animation item to bring up a drop-down list. Then, choose Effect Options from the resultant drop-down list, as shown in Figure 3, below.
  9. Effect Options to be selected
    Figure 3: Effect Options to be selected
  10. This action summons a multi-tabbed dialog box, as shown in Figure 4, below. Click the Effect tab, as shown highlighted in red within Figure 4, and from the Path drop-down list, choose the Locked option, as shown highlighted in blue within Figure 4. Click the OK button to apply the changes.
  11. Locked option to be selected

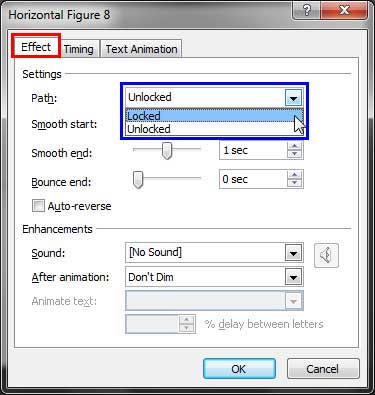

    Figure 4: Locked option to be selected
  12. Now, you can drag the shape (slide object) around, and the motion path won't move with it!
  13. Remember

  14. You don't need to lock/unlock a motion path from its slide object to move it around. To do so, select the actual motion path, not the slide object to which it has been applied, and drag it around as required. This process moves the motion path and leaves the slide object in its original place. However, if you move the slide object, the motion path also starts moving accordingly, even though it is away from the slide object. Confusing? Yes, it is a little, unless you play around with this technique a few times!
  15. To unlock the locked motion path, first select it within the Animation Pane. Then, follow the procedure explained in Steps 6 and 7, but within the Path drop-down list, select Unlocked option instead of Locked. Now, the unlocked motion path also moves along when you move the slide object associated with it.

See Also:

13 02 06 - Motion Path Animations: Lock and Unlock Paths for Motion Path Animations in PowerPoint (Glossary Page)

Lock and Unlock Paths for Motion Path Animations in PowerPoint 2007, 2003, and 2002 for Windows
Lock and Unlock Paths for Motion Path Animations in PowerPoint 2011 for Mac
Lock and Unlock Paths for Motion Path Animations in PowerPoint 2013 for Windows
Lock and Unlock Paths for Motion Path Animations in PowerPoint 2016 for Windows
