Using the Morph Transition with Curve Shapes in PowerPoint

Quickly create animations using the Curve line tool and the Morph transition in PowerPoint. This is so much easier since the Morph transition automatically creates the tweening effects for you.


Author:

Product/Version: PowerPoint

OS: Microsoft Windows and Mac OS X



Learn PowerPoint

Learn how to create Animated GIFs from PowerPoint slides.



We already looked at getting started with the Morph transition in PowerPoint. In this next tutorial of the Morph transition series, we will look at using the Curve line tool to create some drawings. These drawings can be duplicated on subsequent slides, and edited slightly in each slide. The results can differ depending upon what you draw. While it will be great if you have artistic skills to draw within PowerPoint, it doesn't matter if you cannot draw. We will also provide a sample presentation and video walkthrough to help.

This tutorial is the second part of our series on using the Morph transition effect. Yes, you can change the size, color, or other attributes of shapes such as ovals or rectangles from one slide to another using the Morph transition effect. Using the Morph Transition with Curve Shapes in PowerPoint

Does Every PowerPoint User Have Access to Morph?

Now, the Morph transition effect is not available to everyone. This new transition effect is only available to PowerPoint 365 users on both Windows and Mac platforms. In other words, these are users who have a current Office 365 subscription. Additionally, perpetual versions such as PowerPoint 2019 and 2021, and some phone and tablet platforms, and also selected accounts of PowerPoint for the Web support the Morph transition to some extent. Plus, some older versions of PowerPoint, such as PowerPoint 2016 allow playback of Morph transitions, but do not provide editing options.

Follow these steps for a quick walkthrough of using the Curve line tool with the Morph transition effect:

  1. Open an existing presentation, and add a new slide. Alternatively, create a new presentation and work with a clean slide that has no content. In either case, change the slide layout to Blank, as shown in Figure 1, below.

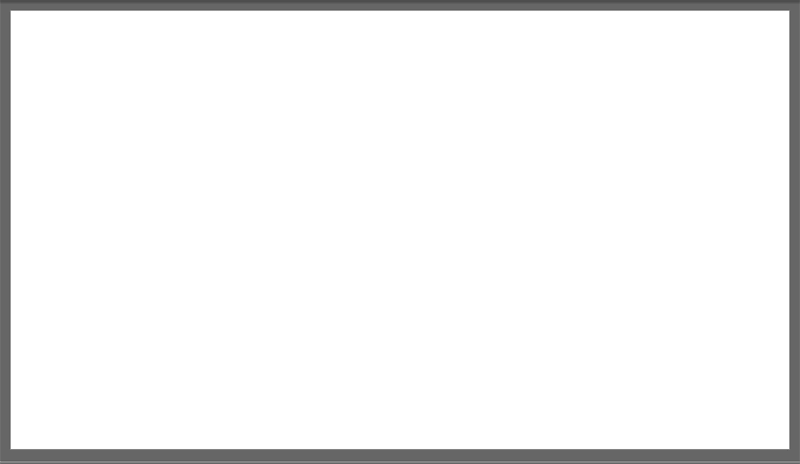

  2. Start with a blank slide
    Figure 1: Start with a blank slide
  3. Now, access the Insert tab of the Ribbon, and click the Shapes button to bring up the Shapes gallery, as shown in Figure 2, below. Select the Curve line tool, as shown highlighted in red within Figure 2.

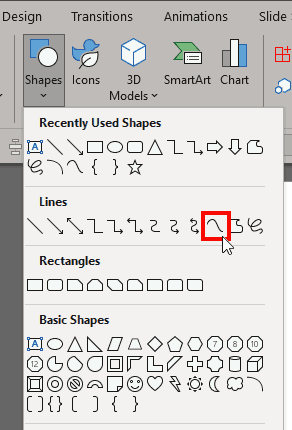

  4. Shapes gallery
    Figure 2: Shapes gallery
  5. Click on the slide, let off the mouse button but continue moving your mouse (don't click any mouse button while moving) in a 135 degree direction, towards the south-east, and click once, and then continue westwards (left). You'll end up with a shape, as shown in Figure 3, below.

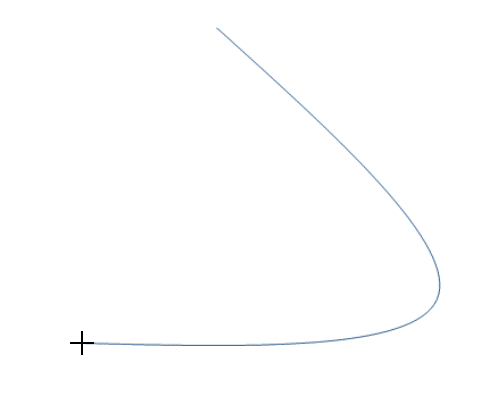

  6. Move cursor to the south-east
    Figure 3: Move cursor to the south-east, click, and move westwards
  7. Without leaving your mouse cursor, move westwards in a horizontal line for the same distance as previously moved, and click again, and then continue to the north-east, so as to end up with a shape as shown in Figure 4, below.

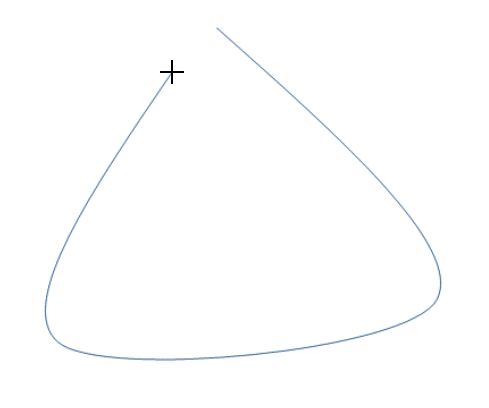

  8. Move cursor to the west
    Figure 4: Move cursor to the west, click, and move north-east
  9. Now, move the cursor to the position from where you started drawing this shape until you see a live preview of a filled shape as shown in Figure 5, below. Click to create a closed shape.

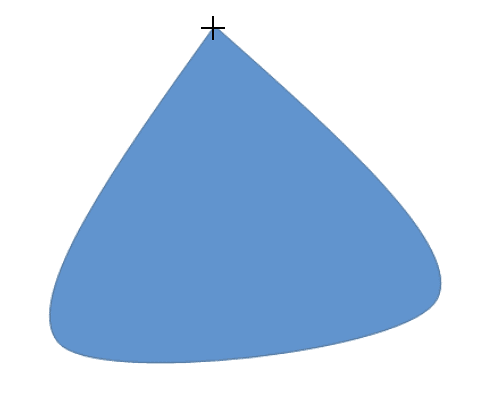

  10. Move cursor to close the shape
    Figure 5: Move cursor to close the shape
  11. You will end up with a closed shape, as shown in Figure 6, below.

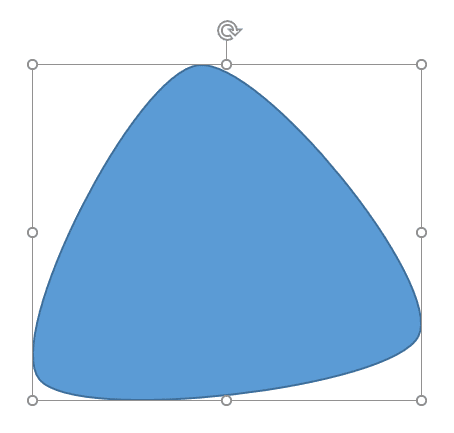

  12. A closed shape drawn with the Curve line tool
    Figure 6: A closed shape drawn with the Curve line tool
  13. Next, select the slide within the Slides Pane, and press Ctrl + D. Alternatively, right-click the slide within Slides Pane, and choose the Duplicate Slides option from the resultant contextual menu, as shown highlighted in red within Figure 7, below. Doing so will create a duplicated slide.

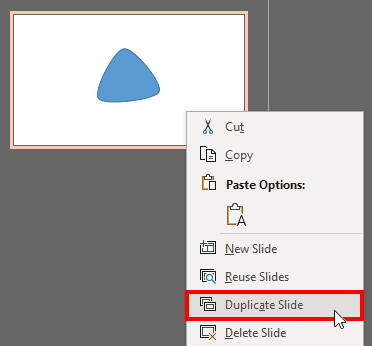

  14. Duplicate slide
    Figure 7: Duplicate slide
  15. PowerPoint Keyboard Shortcuts

    PowerPoint Keyboard Shortcuts

    Do you want more keyboard shortcuts?

    Explore our PowerPoint Keyboard Shortcuts and Sequences Ebook that is updated for all PowerPoint versions.

  16. Now, select the shape on the duplicated slide and right-click. In the resultant contextual menu, choose the Edit Points options, as shown highlighted in red within Figure 8, below.

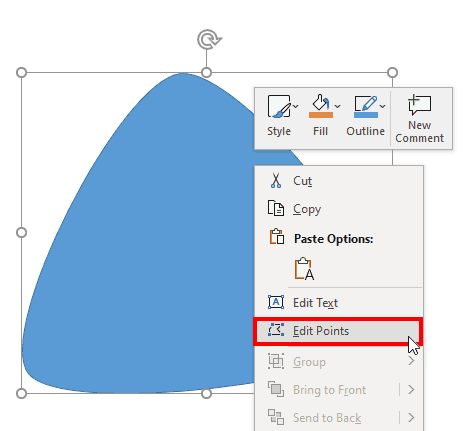

  17. Edit Points
    Figure 8: Edit Points
  18. Doing so reveals the points (or vertexes) for the selected shape, as can be seen in Figure 9, below. Now, there are two elements you can edit here. You can either select the points, and drag them as needed. You can also click on any of the segments, which are the lines between two points, and drag them inwards or outwards as needed.

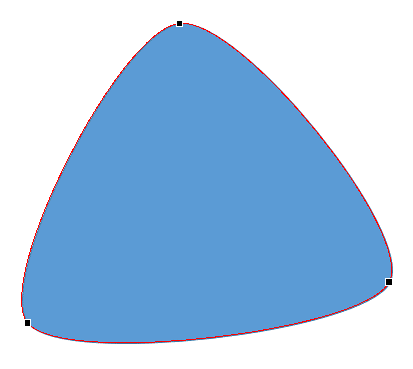

  19. Edit Points mode
    Figure 9: Edit Points mode
  20. Edit Points

  21. Did you know that PowerPoint has illustration capabilities built-in? This article won't get into too many details, but if you are interested, look at these pages in our Presentation Glossary:
  22. Edit Points for Shapes
    Add or Delete Points (Vertexes) for Shapes
  23. We clicked on one of the segments, as shown in Figure 10, below, and successfully dragged this segment outwards.

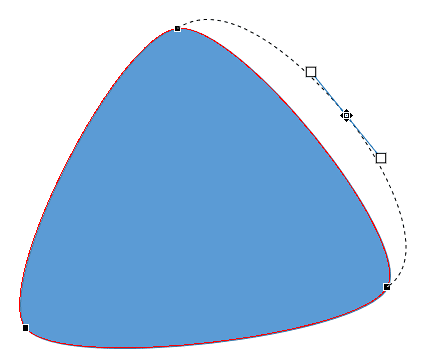

  24. Drag a segment outwards
    Figure 10: Drag a segment outwards
  25. Now access Slide Sorter view, and select both slides. Next, access the Transitions tab of the Ribbon, and select the Morph transition effect in the Transitions gallery, as shown highlighted in red within Figure 11, below.

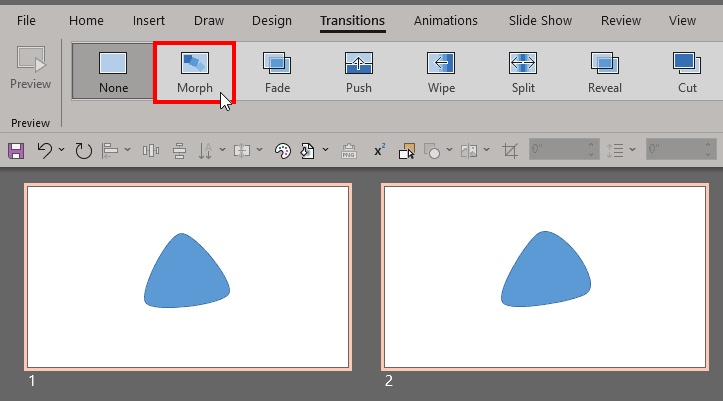

  26. Choose the Morph transition effect
    Figure 11: Choose the Morph transition effect
  27. Save your presentation, and test the Morph transition effect by playing the slides in Slide Show view.
  28. Of course, this is just the beginning. You can use the Curve line and Edit Points tools to create and edit any shape you want. In fact, you can create multiple shapes on each slide, duplicate the slide, and make edits to the shapes as needed—and then tween them all to look like they are animated using the Morph transition effect.

Morph in PowerPoint: Using the Morph Transition with Curve Shapes in PowerPoint (Glossary Page)
