Changing Color of Pictures in PowerPoint 2010 for Windows

Learn how to change the color hue of pictures in PowerPoint 2010 for Windows. You can alter the saturation, tone, and even recolor with a single color.


Author:

Product/Version: PowerPoint 2010 for Windows

OS: Microsoft Windows XP and higher




Learn PowerPoint

Learn how you can zoom objects in PowerPoint.



Working with pictures in PowerPoint 2010 for Windows can be so much fun and fulfilling at the same time. One of the coolest options is to recolor the hue of your entire picture so that it looks almost like a duotone picture. You have already learned how to apply corrections to your inserted pictures, and this Color option can help you do more with your pictures. Be aware though that although the option itself is called Color, it does not work like a coloring book—rather, it changes the overall hue color of the entire picture. This option also allows you to saturate color values, change the overall color tone, and do more.

Follow these steps to learn more in Powerpoint 2010 for Windows:

  1. Open your presentation, and navigate to the required slide. Insert a picture, or if you already have a picture on your slide just double-click it to activate the Picture Tools Format tab of the Ribbon, as shown in Figure 1 (highlighted in red).

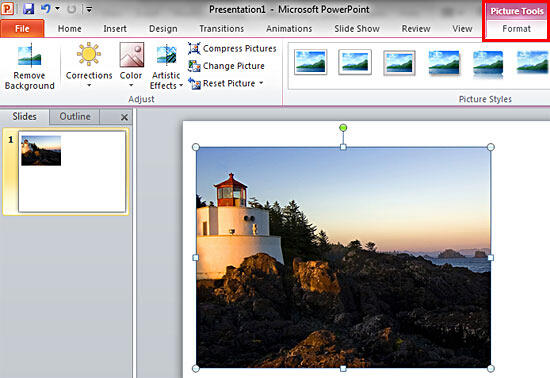

  2. Picture Tools Format tab of the Ribbon
    Figure 1: Picture Tools Format tab of the Ribbon
  3. Note: The Picture Tools Format tab is a Contextual tab. These tabs are special tabs in the Ribbon that are not visible all the time. They only make an appearance when you are working with a particular slide object which can be edited using special options.
  4. Within the Picture Tools Format tab, locate the Adjust group and click the Color button (highlighted in red within Figure 2) to access the Color drop-down gallery that you can see in Figure 2.

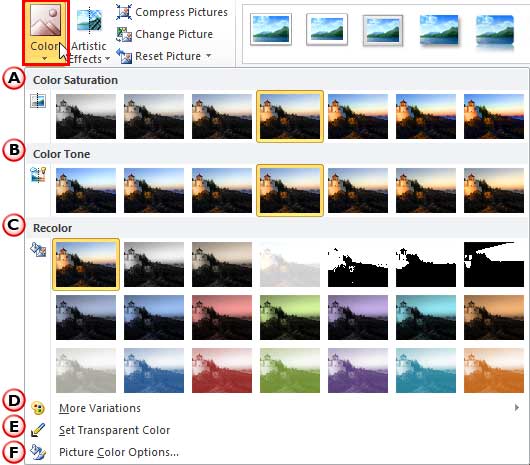

  5. Color drop-down gallery
    Figure 2: Color drop-down gallery
  6. In Figure 2, you can see that the Color drop-down gallery sports three sections: Color Saturation, Color Tone, and Recolor which include preview thumbnails of the selected picture variants. To select any of the variants, just click on the preview thumbnail of your choice. In addition to these sections, you can also see three more options within the Color drop-down gallery. These are used to color the selected picture. Let us explore all of Color drop-down gallery contents one by one, as marked in Figure 2 above:
  7. A. Color Saturation

  8. This section includes thumbnail previews of the selected picture's variants with different pre-applied saturation values. If you hover the mouse cursor over any of these variants, you will see a tool tip that shows the saturation value in percentage, as shown in Figure 3 below.

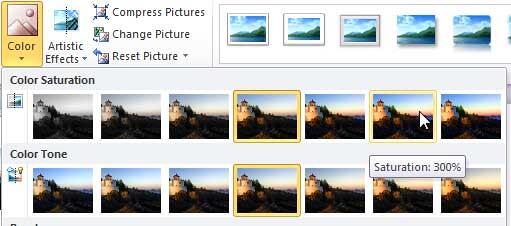

  9. Tool Tip displaying saturation value in percentage
    Figure 3: Tool Tip displaying saturation value in percentage
  10. B. Color Tone

  11. Here you'll find thumbnail previews of the selected picture's variants with several temperature values. If you hover the mouse cursor over any of these variants, you will see a tool tip that shows its temperature value (similar to what you saw in Figure 3, above).
  12. C. Recolor

  13. Tints and shades of accent colors along with grayscale and black and white variants are shown as previews in this group. While the first row is populated by grayscale and black and white variants, the previews in the second and third rows of this section are shades (darker variations) and tints (lighter variations) of Accent colors. Accent colors are influenced by the Theme of the active presentation. So, if the Theme is changed, the colors of these previews in the second and third rows will change. Just hover your mouse cursor on any of the variants in this section to see its name as a tool tip.
  14. D. More Variations

  15. This option, when selected opens a sub-gallery, as shown in Figure 4.

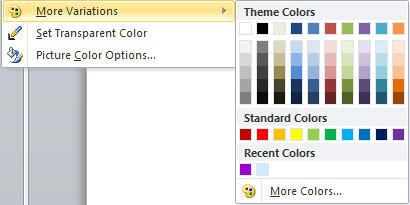

  16. More Variations sub-gallery
    Figure 4: More Variations sub-gallery
  17. Within the More Variations sub-gallery you'll get four sections, which are explained below:
  18. Theme Colors

  19. Here you can select any of the colors which are from the active Theme of the presentation. You can also select any of the 5 tints or shades for any Theme color. Learn more about Themes here.
  20. Standard Colors

  21. Here you can choose from any of the ten standard colors. These ten standard colors are just choices of colors that PowerPoint believes to be widely used. You don't have to limit yourself to either the Theme colors or Standard colors, as we'll show you in the next options. It's a good design idea to use Theme colors as far as possible.
  22. Recent Colors

  23. Here you can find the colors most recently used. If you have just launched PowerPoint and created a new presentation, the Recent Colors option may be entirely absent since you haven't selected any color recently!
  24. More Colors

  25. This option is to summon the Colors dialog box as shown in Figure 5. This dialog box has two tabs: Standard and Custom. First select the Standard tab (again, refer to Figure 5).

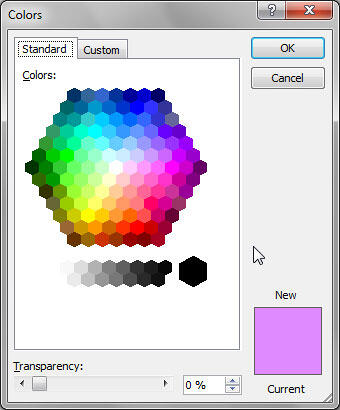

  26. Standard tab within the Colors dialog box
    Figure 5: Standard tab within the Colors dialog box
  27. This tab offers 127 colors in a honeycomb style palette, including 14 gray shades, black and white. You can even change the transparency value of the selected color in the Transparency slider below. If you want more color choices, select the Custom tab of the same dialog box, as shown in Figure 6.

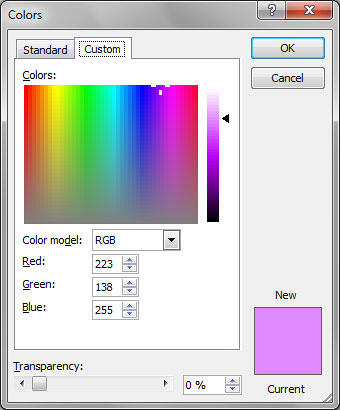

  28. Custom tab within the Colors dialog box
    Figure 6: Custom tab within the Colors dialog box
  29. In this tab, you can choose any color from the spectrum and later adjust the selected color's luminosity with the slider on the right. You can even enter specific values of RGB and HSL to create a specific color. All these combinations provide 16 million color choices!
  30. Again, you can even change the transparency value of the selected color in the Transparency slider below.
  31. Choose any color and click OK to apply.
  32. Note: When you move your cursor over different previews, for Color Saturation, Color Tone, Recolor, and More Variations of the selected picture shows you a Live Preview of the variation being selected within the Color drop-down gallery.

    E. Set Transparent Color

  33. If you want a particular color in the selected picture to be made transparent, this option comes to your help. First, select this option. Now the cursor shows a downward pointing arrow in place of a four directional arrow, as shown in Figure 7 (highlighted in red).
  34. Cursor changes when Set Transparent Color option is selected
    Figure 7: Cursor changes when Set Transparent Color option is selected
  35. Place this cursor on the picture color you want to make transparent, and click. This will make all those areas in the picture 100 percent transparent. Note that all picture types won't support this option. Typically this works with bitmaps, and not vector images.
  36. F. Picture Color Options

  37. This is the last option within the Color drop-down gallery which takes you to the Picture Color option within the sidebar of Format Picture dialog box that you can see in Figure 8.

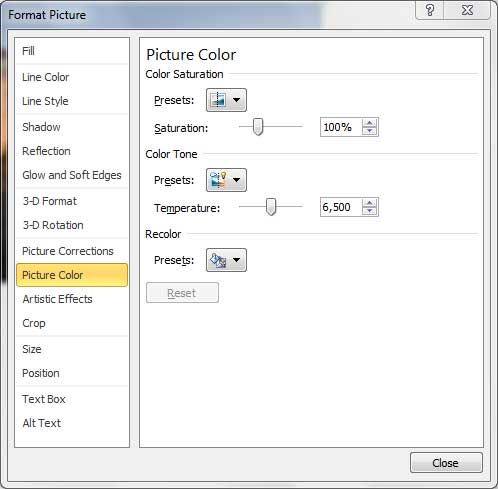

  38. Picture Color options within the Format Picture dialog box
    Figure 8: Picture Color options within the Format Picture dialog box
  39. Here, you can select any of the preset Color types (same as in Color section within drop-down gallery), and also, make changes to the Saturation and Temperature values using sliders or by directly typing in the values in digits, as required. Once done, click Close button to apply the changes to the selected picture and get back to your slide.
  40. Recolor the picture by selecting any thumbnail preview variant, or using the Color options within Format Picture dialog box. In Figure 9 you can see the selected picture after it has been recolored. Compare pictures in Figures 1 and 9 to see the difference.

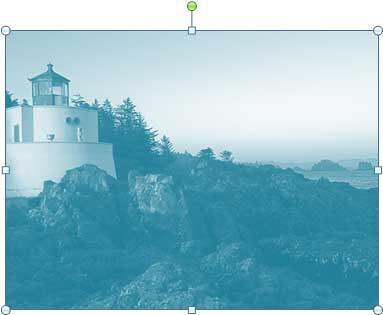

  41. Selected picture recolored
    Figure 9: Selected picture recolored
  42. Save your presentation often.
Tip: You can follow the same procedure explained above to recolor the picture used as a fill for a shape.
