Xara 3D Maker 7
Reviewed: Geetesh Bajaj
Date Created: February 23rd 2011
Last Updated: February 23rd 2011
Introduction
Using Xara 3D Maker 7
Pricing and Support
Conclusion
Introduction
Xara 3D Maker 7 is an application that lets you create 3D text and graphics such as headings, logos, titles and buttons. You can also create 3D animations and export them to GIFs, AVIs and simple Flash movie sequences, and screensavers for your desktop. With several ready-to-use 3D styles and animations, you can create 3D animations or images for your web pages, mailshots, movies and presentations.
Xara 3D Maker 7 is from Xara, a company based in Gaddesden Place, UK. Other than 3D Maker, Xara also creates other graphic software such as Xara Web Designer, Xara Picture Editor, Xara Designer Pro, Xara Xtreme 5 Pro, etc. You can learn more about their products and download a 30 days trial version of Xara 3D Maker 7 from their site.
Xara 3D Maker 7 is the newest version of their product that includes some new animation types and more bevel styles. Here are the list of new features in Xara 3D Maker 7:
- Compatible with Windows 7.
- Rarely used fonts are hidden to unclutter the font list (optional).
- Access over 700 ready made Xara 3D Maker samples instantly via a new Open Samples option in the File menu.
- Automatic save and restore of the current design on program exit and start-up, or on Windows shutdown.
- New View options panel added which gives additional advanced control over the X/Y position of an image against its background, and allows you to precisely change the angle of rotation and viewpoint. A new wireframe mode which can simplify the display and speed up animation viewing time has also been added.
- 7 bevel types added.
- Can export animations with a transparent background in a proprietary format called CFX which can be imported into MAGIX slideshow and movie editing software, Photostory on CD & DVD 9 and Movie Edit Pro 17. Create overlaid 3D captions for movies or slideshows produced in MAGIX software.
- A new scroll animation type added with which you can add scroll animation to text vertically, horizontally.
- A second new scroll in/out animation type added with control over how the text enters and leaves the screen.
My contact for this review was Nova Fisher -- thank you Nova.
Using Xara 3D Maker
Download the installer from the link given above, run the setup routine and follow the instructions. You'll end up with an Xara 3D Maker 7 shortcut on the desktop.
Now follow these steps to use the Xara 3D Maker 7:
- To launch Xara 3D Maker 7, go to your Windows Start menu and choose
All Programs | Xara | Xara 3D Maker 7 | Xara 3D Maker 7 or just double
click the Xara 3D Maker 7 shortcut on the desktop. This opens the
Xara 3D Maker 7 interface, as shown in Figure 1.
Figure 1: Xara 3D Maker 7 interface
The Xara 3D Maker interface options are explained below:
- Standard toolbar: Here you'll get common editing
functions such as load, save, export, animation picker, style
picker, etc.
- Text toolbar: Provides quick access to
the main text editing options such as font and size. Note that if
you are using Windows 7 and have previously hidden rarely-used fonts
in your Control Panel, those fonts will not be displayed in the
Xara 3D Maker text toolbar.
- Time line: Provides control over
animations such as start, stop, pause, and step through
animations. If the time line is not displayed by default, select
Time line from the window menu.
- Preview area: Here you can see a preview
of your graphic as you create it. You can even edit the graphic
here by dragging on a shadow to move the shadow,
or dragging on the graphic to change the extrude or bevel. Right
click anywhere in the preview area to bring up a
menu with options relating to that item for example, right-clicking
the background gives you the opportunity to change the background
color and texture.
- Options toolbar: This toolbar provides shortcuts
to the different options available which are:
- Text options
- Color options
- Extrusion options
- Design options
- Bevel options
- Shadow options
- Texture options
- View options
- Animation options
- Design toolbar: Provides shortcuts to
the different design types such as text only, button, board,
board with holes and border.
- Option bars: Here each bar contains settings
for the options of listed above (in Option toolbar). These options
can be accessed by clicking on the required bar or by clicking
the required button on the options toolbar. You can move and dock
the option bars, or remove them completely.
- Status bar: Provides feedback on available editing options and also shows you the current size and rotation angles of the 3D graphic.
- Standard toolbar: Here you'll get common editing
functions such as load, save, export, animation picker, style
picker, etc.
- When the Xara 3D Maker 7 interface is opened for the first time,
it already has some dummy text with animation playing -- you can
easily change both the text and the animation.
- To change the frame dimensions, choose Window | Frame size which
opens the Frame size dialog box, as you can see in Figure
2. Provide
the frame dimensions.
Figure 2: Frame size dialog box
- Now to type you own text, choose Text options (highlighted in red
in Figure 3) from the Options toolbar.
Figure 3: Text options in Options toolbar

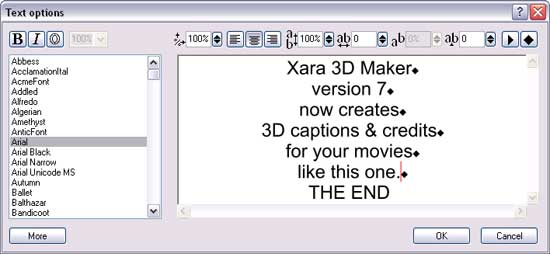

- This opens the Text options dialog box, as shown in Figure
4.
Figure 4: Text options dialog box
- Select the entire text and delete it or start typing to enter the
text you want. Select any font of your choice, or play around with
other text options till you get the required result. Figure
5 shows default text has been deleted and new text is added.
Figure 5: Add you own text
Click the More button located at the bottom left of the Text options dialog box to add symbols (refer to Figure 5 above). Click the OK button to insert the text in the Preview area, as shown in Figure 6.
Figure 6: Text added within the Preview area
- You will likely also want to customize more, which you can do by
clicking any of the option bars on the right hand side of the interface
(the buttons on the options toolbar also open these). Any changes
you make are reflected instantly within the Preview area. Change
the bevel and extrude if you wish, or in the Preview area drag on
the text to change the extrude or bevel, add a shadow and drag it
to the required position, drag the text to get the angle you want,
change the color of the text or background, etc.
- When done with making all the changes select Export from the File menu and save your work as: ANI (animated cursors), AVI (animations), BMP, CFX, CUR, GIF, ICO, JPG, PNG, SCR (Windows screen saver), or SWF (Flash—bitmap format, static or animations).
Pricing and Support
Xara 3D Maker 7 costs US$39.99, and can be bought online through a secure server.
Support is through e-mail, an online knowledge base and FAQs. Extensive online tutorials including demo movies are available.
Conclusion
For this price point, Xara 3D Maker 7 does an admirable job, and it provides tons of customization options so that you can create an output that is different and stands apart.
