Comparison Group Cards in Sway

Explore how Comparison Group Cards work in Sway.


Product/Version: Microsoft Sway
OS: Windows and Mac OS

The third type within the Group Cards category in Sway is the Comparison Group Card. Like the Stack Group Card, the Comparison Group Card can also only contain Picture Cards. Further, you are limited to just two Picture Cards. After all, it would be difficult to compare more than two Cards!

Follow these steps to see how the Comparison Group Card works:

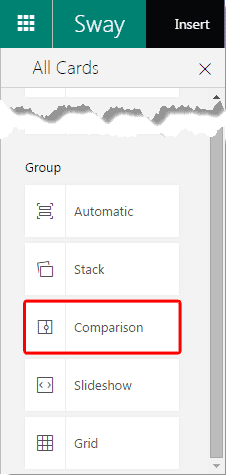

  1. Create a new Sway or open an existing one. Then access the All Cards pane and select the Group category, as shown in Figure 1, below.

    Group Cards within All Cards pane
    Figure 1: Group Cards within All Cards pane

  2. Note: Is the All Cards pane, as shown in Figure 1 not visible? Then click the Cards option in the menu bar as shown highlighted in red within Figure 2, later on this page.

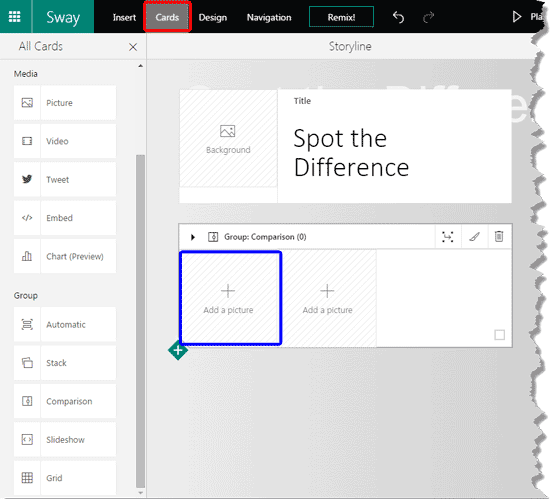

  3. Then choose the Comparison option, highlighted in red within Figure 1. This will place a new Group Card in your Storyline with a Comparison Group layout, as shown in Figure 2, below.

    Comparison Group Card added
    Figure 2: Comparison Group Card added

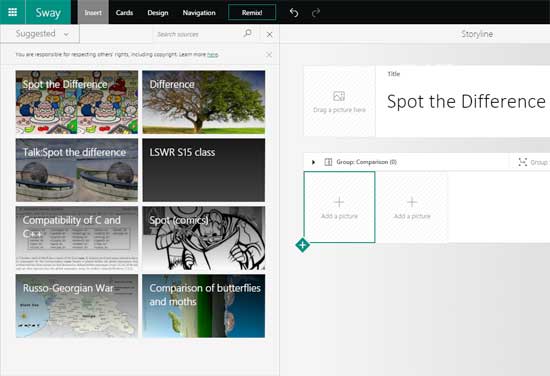

  4. Click the Add a Picture box, highlighted in blue within Figure 2, above. This will show the Insert pane, as can be seen in Figure 3, below. Options within the Insert pane are explained in our Insert Options in Sway tutorial.

    Insert pane
    Figure 3: Insert pane

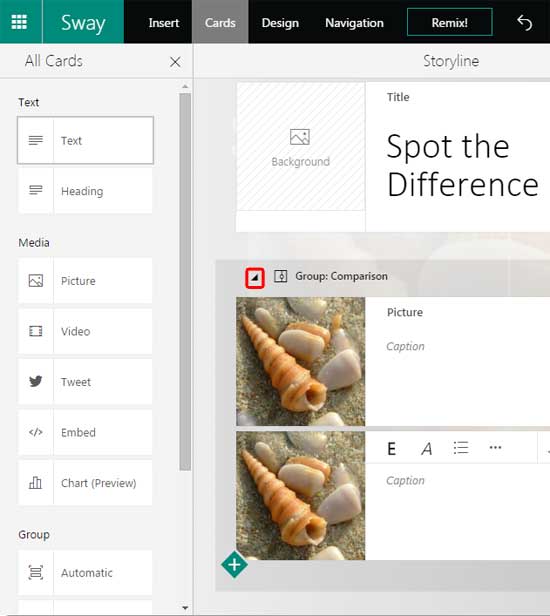

  5. We added two Picture Cards within the Comparison Group Card, as you can see in Figure 4, below. Do both the pictures look similar? Actually, there are a few small differences between them, and we shall explore these differences later!

    Picture Cards in our Comparison Group Card
    Figure 4: Picture Cards in our Comparison Group Card

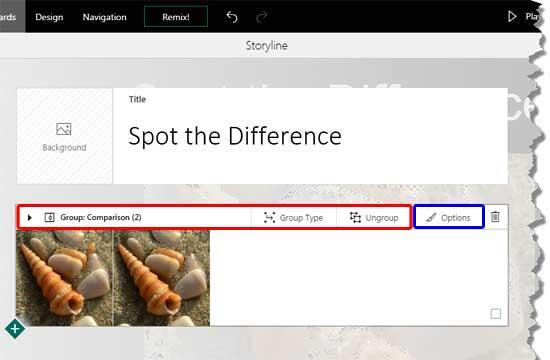

  6. The moment you click on the Group handle on the top (highlighted in red within Figure 4, above), you will find that your Group Card collapses, as shown in Figure 5, below.

    Comparison Group created
    Figure 5: Comparison Group created

    You will also notice that several options are available in the area now. The options in the area highlighted in red within Figure 5 are explained in Step 5 on our Automatic Group Cards in Sway tutorial page. And the area highlighted in blue within Figure 5 is explained in Step 4 on our Picture Cards in Sway tutorial page.

    Delete: The last button on the right will delete the entire Group Card with all its contents!

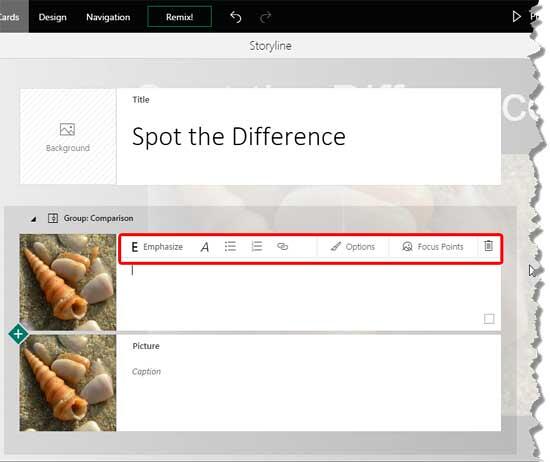

  7. Within the individual Cards contained in the Group, you can do everything you can do with regular Picture Cards, as shown in Figure 6, below. You will notice that this Card sports all the options (area highlighted in red) that are available within a regular Picture Card.

    Picture Card within the Group Card
    Figure 6: Picture Card within the Group Card
  8. When individual Picture Cards are added, Sway automatically sets Focus Point for the pictures, resulting in pictures that are cropped, as shown in Figure 7, below.

    Cropped pictures in Preview pane
    Figure 7: Cropped pictures in Preview pane

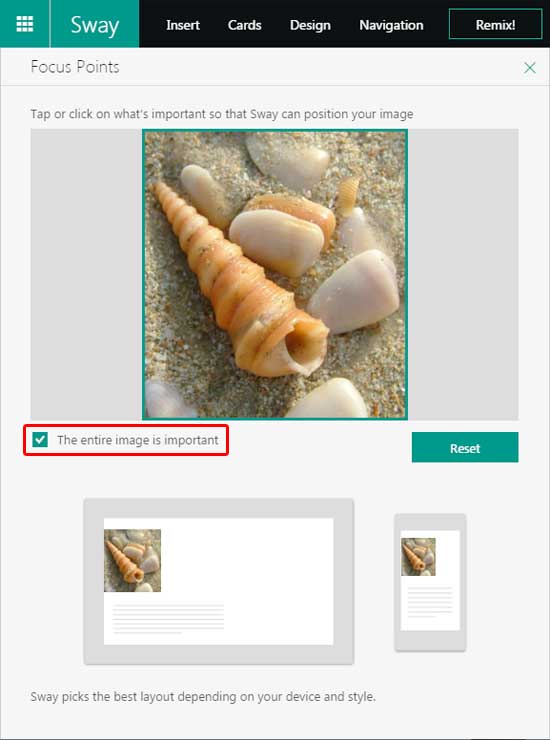

    You can overcome this problem by following steps within our Focus Point for Pictures within Sway tutorial. In the Focus Points overlaid pane, you will need to select the check-box that says The entire image is important, as shown highlighted in red within Figure 8. This will prevent important areas of pictures being cropped out.

    Focus Points overlaid pane
    Figure 8: Focus Points overlaid pane

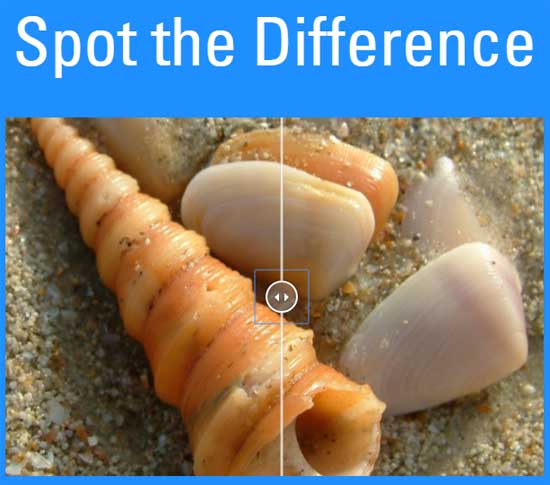

You can see how the Comparison Group Card works within the embed below. Make sure you drag the divider slider in between. How many differences were you able to spot between the two pictures?
