Gradient Outline for Text in PowerPoint 2010
Learn how to apply Gradient Outline for text in PowerPoint 2010.
Author: Geetesh Bajaj
Product/Version: PowerPoint 2010
OS: Windows 8 / 7 / Vista / XP
You have already learned about how you can apply and change the outline around your text -- this outline is the thin line that spans the perimeter of the font characters. In this tutorial, you will learn about an attribute
that's rarely associated with text outlines but can provide a surprisingly
different look, especially when applied to the text with thicker outlines. This attribute, called the Gradient Outline is not accessible from within the Text Outline gallery, but has been included within the Format Text Effects dialog box that
we will explore later in this page. Meanwhile, Figure
you how text with a gradient outline looks like.

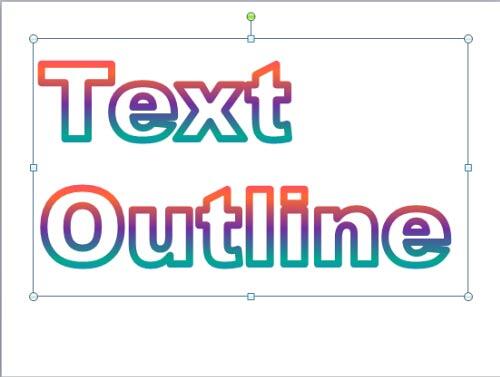

Figure 1: Gradient outline applied to the text without any fill.
Follow these steps to apply gradient outlines to text:
- Select the text that you want to apply the gradient outline for. Alternatively, if you just want to follow this tutorial step-by-step, launch PowerPoint. Most of the time, PowerPoint will open with a new slide in a presentation -- PowerPoint 2010 users can change the slide layout to Blank by selecting the Home tab | Layout | Blank. Insert a text box and type some text in it -- you can also change the text font to something "blockier", such as Arial Black. For this tutorial, we used large sized text (150 point) with an outline that has been applied with a weight of 10 pt. so that the gradient outline is thick enough to stand out (see Figure 2).

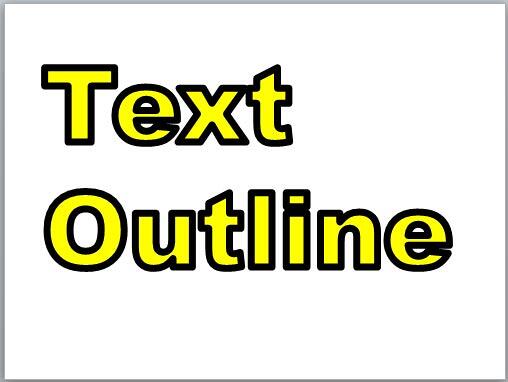

Figure 2: Text with large font size and thick outline
- Make sure that you select the entire text for which you want to apply gradient outline (not the text container). Then right click to bring up a context menu that you can see in Figure 3 -- in this context menu select the Format Text Effects option (see Figure 3 again).
Figure 3: Format Text Effects option to be selected
- This opens the Format Text Effects dialog box, as shown in Figure 4 -- select the Text Outline option in the sidebar, and select
the Gradient line radio button (highlighted in red within Figure 4) to reveal the Gradient line options.
Figure 4: Gradient line options within Format Text Effects dialog box
As you can see in Figure 4, there are number of options to set the gradient outline for the selected text. All of these Gradient line options for text outline work in the same way as the Gradient line options work for shape outlines. So, to learn more about how to use these Gradient line options, you can refer to our Gradient Outlines in PowerPoint 2010 tutorial.
- Once you have applied the gradient style to your selected text outline, click the Close button to close the Format Text Effects dialog
box. In Figure
5 you can see the gradient outline applied to the text selected earlier (compare to Figure 2).
Figure 5: Gradient outline applied to the selected text
If you use a gradient outline on the text that has no fill, you will attain a simple look that will make the actual text fill area transparent, thus resting the entire focus to the gradient line. To learn how to remove the fill from a text, refer to point 4-D in our Text Fills in PowerPoint 2010 tutorial. You already saw text with no fill and a gradient outline in Figure 1, earlier on this page.
- Don't forget to save your presentation often.
