Gradient Outline for Text in PowerPoint 2013
Learn how to apply Gradient Outline for text in PowerPoint 2013.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2013
OS: Windows 7 and 8
You have already learned about PowerPoint's text outline option that lets you add an outline around your text -- this outline is the thin line that spans the perimeter of the font characters, as shown in Figure 1, below.

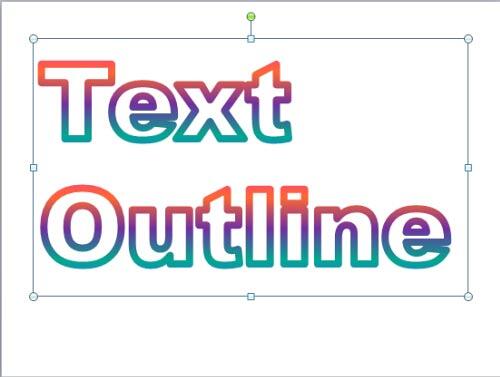

Figure 1: Gradient outline applied to the text without any fill
In this tutorial, you
will learn about an attribute that's rarely associated with text outlines but can provide a surprisingly
different look, especially when applied to the text with thicker outlines. This attribute, called the
Gradient Outline is not accessible from within the Text Outline gallery, but
has been included within the Format Text Effects dialog box that we will explore later
in this page. Meanwhile, Figure 1 shows you how text with a gradient outline looks like.
Follow these steps to apply gradient outlines to text PowerPoint 2013:
- Select the text that you
want to apply the gradient outline for.
Alternatively, if you just want to follow this tutorial step-by-step, launch PowerPoint. You will see the Presentation Gallery - here, select the Blank Presentation to open a blank presentation with a new slide. You can then change the slide layout to Blank by selecting the Home tab | Layout | Blank. Insert a text box and type some text in it -- you can also change the text font to something blockier, such as Arial Black. For this tutorial, we used large sized text (150 point) with an outline that has been applied with a weight of 10 pt. so that the gradient outline is thick enough to stand out (see Figure 2).

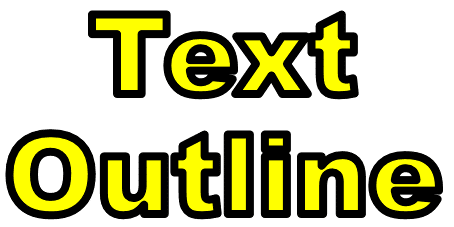

Figure 2: Text with large font size and thick outline
- Make sure that you select the entire text for which you want to apply gradient outline (not the text
container). Then right-click to bring up a contextual menu that you can see in Figure 3 --
in this contextual menu select the Format Text Effects option (see
Figure 3 again).

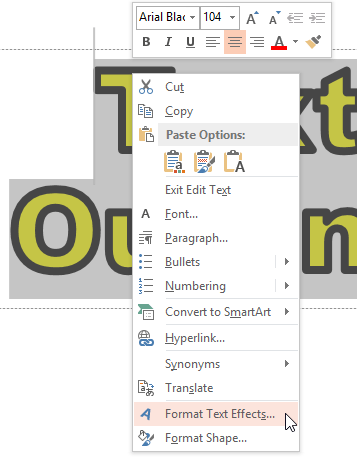

Figure 3: Format Text Effects option
- This opens the Format Shape
Task Pane, as
shown in Figure 4. Make sure that the Text Options tab is selected
(highlighted in red within Figure 4). Then select
Text Fill & Outline button (highlighted in blue within
Figure 4). Also, select the Gradient line radio button as shown
highlighted in green within Figure 4.

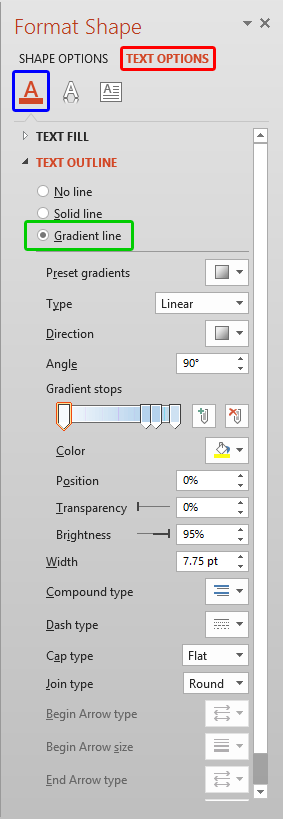

Figure 4: Gradient line options within the Format Shape Task Pane
As you can see in Figure 4, there are number of options to set the gradient outline for the selected text. All of these Gradient line options for text outline work in the same way as the Gradient line options work for shape outlines. So, to learn more about how to use these Gradient line options, you can refer to our Gradient Outlines in PowerPoint 2013 tutorial.
- Once you have applied the gradient style to your selected text outline, close the
Format Shape Task Pane. In Figure 5 you can see the gradient outline applied to the text selected earlier (compare to Figure 2, shown earlier on this page).

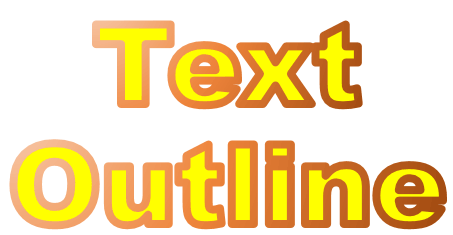

Figure 5: Gradient outline applied to the selected text
If you use a gradient outline on the text that has no fill, you will attain a simple look that will make the actual text fill area transparent, thus resting the entire focus to the gradient line. To learn how to remove the fill from a text, refer to point 4-D in our Text Fills in PowerPoint 2013 tutorial. You already saw text with no fill and a gradient outline in Figure 1, earlier on this page.
- Don't forget to save your presentation often.
