Opening WRM Protected Files in PowerPoint 2010 for Windows

Learn how to open Windows Rights Management protected files in PowerPoint 2010.

Author: Geetesh Bajaj

Product/Version: Microsoft PowerPoint 2010
OS: Microsoft Windows XP / Vista / 7 / 8

Date Created: February 23rd 2012
Last Updated: February 23rd 2012

In previous tutorials you have learned to sign up for Windows Rights Management (WRM), use WRM to set permissions for other users, and how you can set advanced WRM permissions. However, these scenarios only work for those who create and distribute WRM protected files -- how you use WRM if you are a recipient of a protected file is something that we will explore in this tutorial. You will learn how to open a WRM protected file as a permitted user.

Before we proceed further, these are the various PowerPoint file types that can be rights managed:

File Type
Presentation .PPT
Presentation .PPTX
Macro-enabled presentation .PPTM
Template .POT
Template .POTX
Macro-enabled template .POTM
Show .PPS
Show .PPSX
Macro-enabled show .PPSM
Office Theme .THMX

To open a WRM protected file, you must fulfil the following requirements:

  1. You must have a Windows Live ID.
  2. You must have signed up for Windows Rights Management services using your Windows Live ID.
  3. Any WRM protected files you receive must be permitted to the same Windows Live ID.
  4. You must be connected online when you open the WRM protected file so that your credentials can be authenticated.

Once you have received a WRM protected file from someone else, follow this process to access the file's contents in PowerPoint 2010:

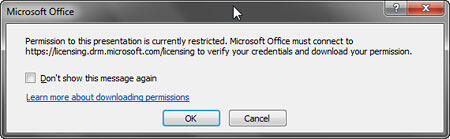

  1. Open the WRM protected presentation which you have received. This will bring up a message windows, as shown in Figure 1.

    Message window appears when WRM protected file is opened
    Figure 1: Message window appears when WRM protected file is opened

    This message window indicates that your credentials will be verified and permissions provided to you will be downloaded.

    Note: If you haven't signed up, do look at our Sign up for Windows Rights Management (WRM) tutorial.

  2. This starts verifying your credentials, as you can see in Figure 2. This will take few seconds.

    Verifying your credentials
    Figure 2: Verifying your credentials

  3. Once your credentials have bee successfully verified, the presentation will open, as shown in Figure 3. Note that the open presentation will contain a yellow strip below the Ribbon and above the slide area, as shown highlighted in red in Figure 3.

    Yellow strip provides info about the protection status of the presentation
    Figure 3: Yellow strip provides info about the protection status of the presentation

    Note: The user who opened the presentation shown in Figure 3 was provided only Read level permissions -- so he or she will be unable to make any edits to the presentation. That explains why you cannot see the Ribbon or any other editing controls in Figure 3. To edit content, the user will need Change level access to the content. Both the Read and Change levels of permissions are explained in our Using Windows Rights Management in PowerPoint 2010 tutorial.

  4. As you have received a WRM protected file from someone else, there may be limitations on your access to the presentation's content. To view what you can and cannot access, click the View Permission button (highlighted in red in Figure 4).

    View Permission button within the yellow strip
    Figure 4: View Permission button within the yellow strip

  5. This opens the My Permission dialog box, as shown in Figure 5. Here you can view the list of permissions granted to you for the received presentation (highlighted in red in Figure 5). You can also click the Request additional permissions hyperlink (highlighted in blue in Figure 5) to send an e-mail to the person who has the authority to provide additional permissions. Otherwise, click the OK button to get back to the presentation.

    My Permission dialog box
    Figure 5: My Permission dialog box

    Tip: Did you sign in with a different Windows Live ID? You can change to another Windows Live ID by clicking the Change user link, highlighted in green in Figure 5. You will then have to provide credentials for the other Windows Live ID, and these will be thereafter verified, as explained previously in this tutorial.

  6. Close the presentation when done.
