Insert Shapes in PowerPoint 2011 for Mac
Learn how to insert Shapes in PowerPoint 2011 for Mac.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2011
OS: Mac OS X
Date Created: July 13th 2011
Last Updated: July 13th 2011
Shapes let you do so much in PowerPoint -- once you master them, you can place circles of various sizes one on top of the other to create something that looks like a target. Similarly you can create seemingly complicated arrangements of shapes quite easily to create something that illustrates a concept or idea so much better than just bulleted text. To create any such graphic content, you need to start by inserting common shapes -- PowerPoint 2011 makes it easy to do so. To insert a shape on your PowerPoint slide follow these steps:
- Within PowerPoint 2011, open the presentation (or create a new one), and
select the slide where you want to insert a Shape. You can change the slide layout to Blank or Title only (see Figure

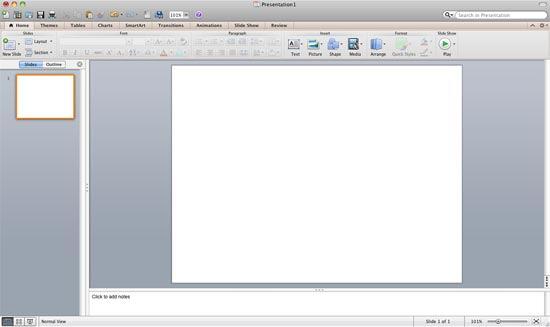

Figure 1: Slide with Blank layout
- Access the Home tab of the
Ribbon, locate the Insert group and within this
group, click the Shape
button to bring up the Shape gallery, as shown in the Figure

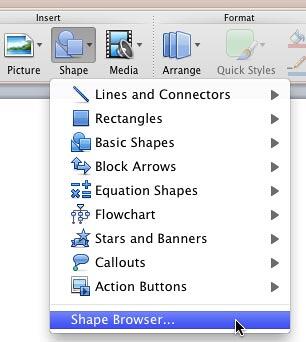

Figure 2: Shape gallery
In this gallery, PowerPoint provides options to choose several sub galleries of Shape types such as Lines and connectors, Rectangles, Basic Shapes, Block Arrows, Stars and Banners, Callouts, etc. If you want to see all shapes placed within one gallery, select the Shape Browser option (the last option in the Shape gallery). This will open the Shapes tab of the Media Browser with all shapes together in one gallery (see Figure 3 below).

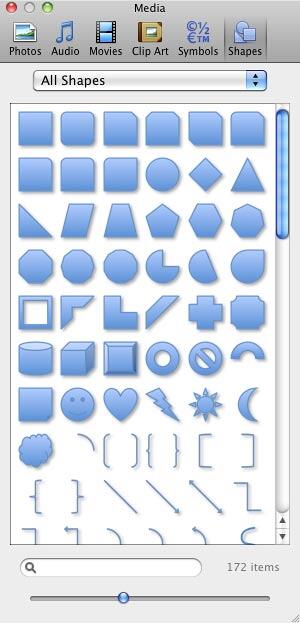

Figure 3: Shapes tab within Media Browser
- Based on your requirement, choose any Shape by clicking on it.
As you can see in Figure 4 below, I have chosen the Rectangle shape.

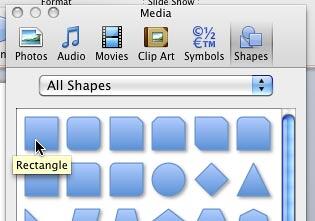

Figure 4: Rectangle Shape selected
Thereafter, use any of the following three options to place the Shape on your slide:
- Click anywhere on the slide to insert
the Shape in a predefined size (typically 1 inch x 1 inch),
as shown in Figure

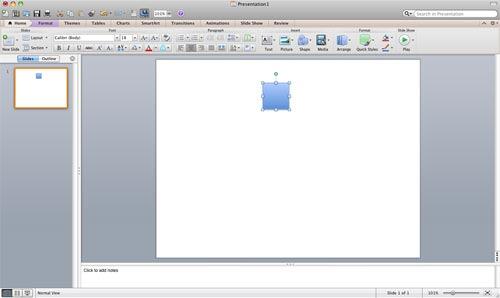

Figure 5: Shape inserted by clicking on the slide
- Click and drag on the slide to create an instance
of the Shape in the size you desire (see Figure
Figure 6: Shape inserted by dragging on the slide
Tip: Hold the Shift key while dragging to constrain the height and width proportions. Hold the Alt (Option) key to draw a Shape from the center. You can also draw while holding both the Alt (Option) and Shift keys.
- Drag the shape from Shape Browser to the slide (refer to Figure
Figure 7: Shape inserted by dragging from the Shape Browser
- Click anywhere on the slide to insert the Shape in a predefined size (typically 1 inch x 1 inch), as shown in Figure 5.
- Save the presentation.
