Hyperlinks for Action Buttons in PowerPoint 2011 for Mac
Explore options to add and edit hyperlinks for Action Buttons in PowerPoint 2011 for Mac.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2011
OS: Mac OS X
Date Created: January 13th 2012
Last Updated: January 13th 2012
Once you insert an Action Button, and explore the default behavior for each Action Button, you are ready to move on to more detailed techniques on working with Action Buttons. Each Action Button has a default action associated -- this typically is a hyperlink to some other slide in your presentation. You can change this link, or even add another link such as a link to your web site, another document, and more. In this tutorial, you will learn how to add or change hyperlinks emanating from Action Buttons:
When you insert an Action Button, the Action Settings dialog box pops up with the default Mouse Click tab selected as you can see in Figure 1. Actions in the Mouse Over tab work similarly -- the only difference between the two tabs is:
- Actions chosen in the Mouse Click tab need a click on the Action Button to happen.
- Actions chosen in the Mouse Over tab merely need your cursor to be placed over the Action Button to occur.

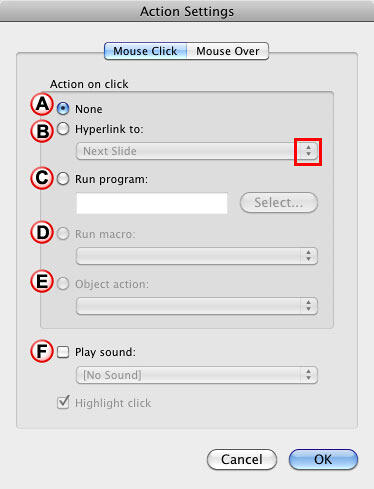

Figure 1: Action Settings dialog box
To bring up the Action Settings dialog box (refer to Figure 1 above) for an Action Button which is already inserted, just right-click your Action Button, and choose the Action Settings option in the resultant contextual menu, as shown in Figure 2.

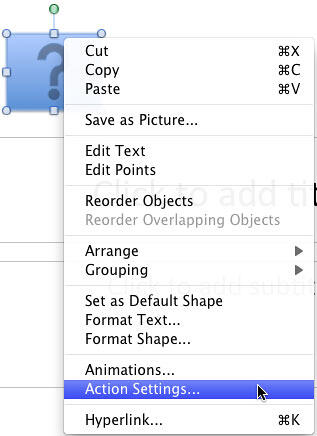

Figure 2: Action Settings option selected
Alternatively, you can select the Action Button -- then choose the Insert | Hyperlink menu option as shown in Figure 3.
Figure 3: Hyperlink option selected within the Insert menu
Either way you will bring up the same Action Settings dialog box as shown in Figure 1, above -- here are the details about the options available within the Mouse Click tab of the Action Settings dialog box, as marked in Figure 1:
- None: This radio button indicates no hyperlink has been set up for the selected Action Button. Also, if your Action Button already has some other hyperlink option selected, then choosing this option removes that link.
- Hyperlink to: Used to select a hyperlink. It causes a different slide in the active presentation, a different presentation, a non-PowerPoint document, or a web page to come up. To make the selection, click the downward arrow towards the right of the selection box (highlighted in red in Figure 1, above) to open a drop-down list as shown in Figure 4 (highlighted in red). In this drop-down list, make the selection based on your requirement.
Figure 4: Option within the Hyperlink to drop-down list
- Run program: Select this radio button to set up an Action Button to run a program, for example Microsoft Word or Excel.
- Run macro: This option will be available only if macros are enabled -- to use macros, your file should be a PPTM or PPSM file -- look at our Files Types in PowerPoint 2011 tutorial to learn more about these file types.
- Object action: This option is grayed out when you select an Action Button, and then bring up the Action Settings dialog box. When you select an object (such as an embedded Word or Excel object), then this option is available within the Action Settings dialog box.
- Play sound: Select this check-box to make a sound clip play when the selected Action Button is clicked during the slide show. Once you select the Play sound check-box, you can click the downward arrow towards the right of the selection box (highlighted in blue in Figure 4) to bring up a list of available sound clips.
Note that the options from A to E are radio buttons - this means you can apply any one of these actions for your selected Action Button. The moment you choose any of these radio buttons, then any existing options are replaced.
After selecting the hyperlink and making the settings as required, make sure to click the OK button to apply them to the selected Action Button.
