Dynamic Reorder of Overlapping Shapes in PowerPoint 2011 for Mac
Learn about the Dynamic Reordering of the overlapping Shapes and other slide objects in PowerPoint 2011.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2011
OS: Mac OS X
Date Created: December 16th 2011
Last Updated: December 16th 2011
You have already learned about Dynamic Reordering of shapes, where all slides objects are placed in an individual layered view suitable for reordering. This may work well when you have a few objects on your slide but is entirely unpractical if your slide has anything over 10 objects. Fortunately, there is a variation of this technique that lets you only work with the selected slide objects, and any other slide objects that overlap the selection. This option is called Reorder Overlapping Objects. Although this option is called Reorder Overlapping Objects, it actually works with:
- All objects that you select.
- All objects that overlap the object (objects) you select.
Follow these steps to get started:
- Open your PowerPoint presentation and navigate to the slide which contains shapes you want to reorder. In Figure 1 you can see the sample slide we are using. Note that of the 5 shapes on this slide, all shapes except the heart shape overlap each other.
Figure 1: Shapes on a slide
- To access the Reorder Overlapping Objects option, select a shape (or shapes). Then access the Home tab of the Ribbon. Within the Format group, click the Arrange button to bring up the Arrange gallery,
as shown in Figure
Within this gallery, choose the Reorder Overlapping Objects option (see Figure

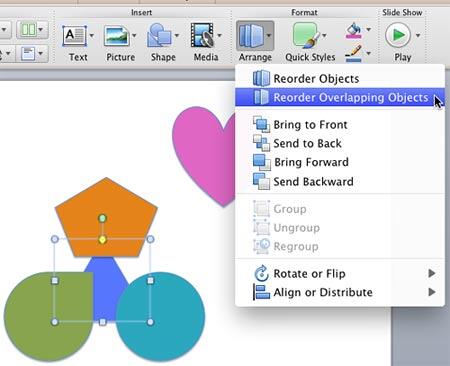

Figure 2: Reorder Overlapping Objects option selected within the Arrange gallery
Note: Is the Reorder Overlapping Objects option grayed out? This option is available only if selected shapes or other slide objects on the slide overlap some other shape or object. Alternatively, you must select more than one shape or any other slide object.
- This will bring up the Dynamic Reorder view, as shown in Figure 3. Each slide object is placed on an imaginary transparent sheet, much like a layer. Note that all shapes on the slide except the non-overlapping heart shape (compare with Figure 1) show up within this view on separate layers according to the Z-order in which they have been placed on the slide. Also note that there are two buttons: OK and Cancel placed on the bottom right of this view (highlighted in red in Figure 3).

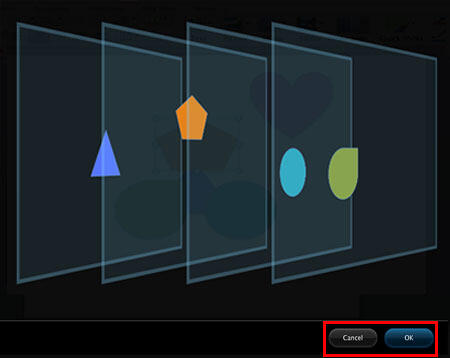

Figure 3: Shapes overlapping the selection displayed within the Dynamic Reorder view
- For reordering, hover your cursor over the layer that contains the shape you want to reorder, and then click to select this layer. For this tutorial, we hovered over the cursor over the layer which contains the green Teardrop shape -- note that the Z-order position of this shape shows up as 1, as shown in Figure 4 below.

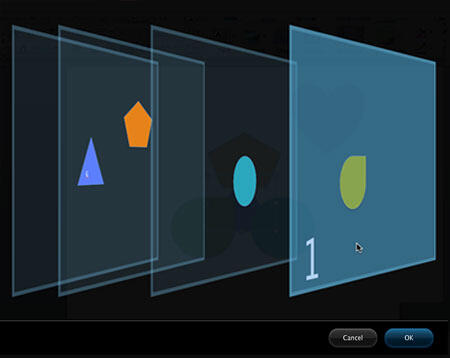

Figure 4: Layer containing the Teardrop selected in the Z-order
- Now drag the selected layer to the Z-order position you require -- we dragged this layer right below all other layers to achieve a Z-order of 4, as shown in Figure 5, below. Now, the Teardrop shape is placed below all other shapes (compare Figures 3 and 5). Click the OK button (or press the Return/Enter key on your keyboard) to apply these changes, and get back to your slide.

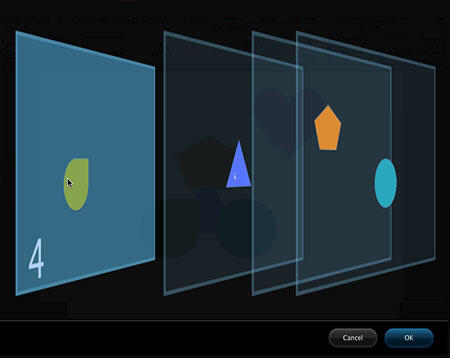

Figure 5: Layer containing the Teardrop shape moved to the bottom of all other overlapping shapes
Note: Clicking the Cancel button or Esc key on your keyboard will cancel all reordering done, and takes you back to the active slide.
- This will take you back to your slide -- the shapes now are reordered (compare the position of teardrop shape in Figures 1 and 6).

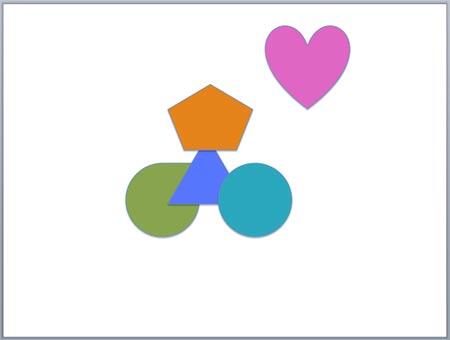

Figure 6: Shapes on the slide reflecting the dynamic reordering done
- Save your presentation often.
