Flip and Rotate Picture Fills for Shapes in PowerPoint 2013
Learn how to flip and rotate picture fills for shapes in PowerPoint 2013.
Author : Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2013
OS: Windows 7 and 8
It is easy to
flip and rotate
a picture on your slide (see Figure 1, below).

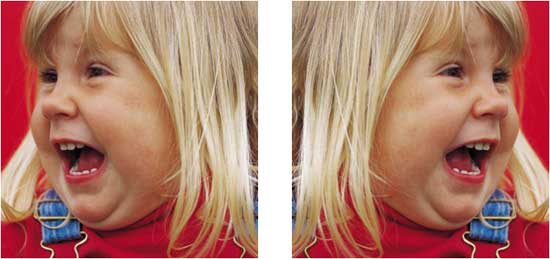

Figure 1: Picture flipping is easy and quick in PowerPoint
However this same flipping can be a little tricky when you use a
fill within a shape. Look at the example shown in Figure 2, below. The shape on the left
is the original Teardrop shape with a picture fill. In our attempt to flip the picture, we tried flipping the container shape -- the result is that the picture does
get flipped, but so does the shape, as shown on the right.

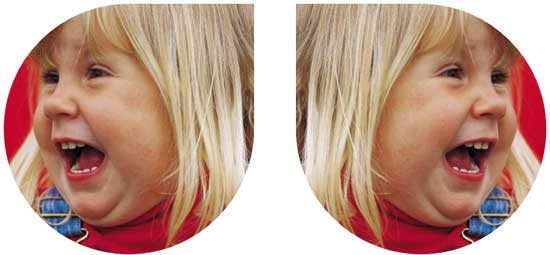

Figure 2: Teardrop shape -- original and flipped versions of shape with a picture fill
But what if we wanted to just flip the picture within the shape to end up with a result, as shown towards
the right in Figure 3, below? How do you do that?

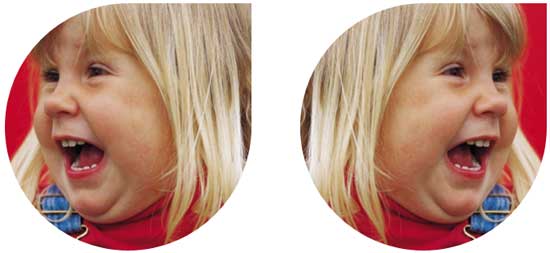

Figure 3: Teardrop shape -- original and flipped versions of just the picture fill
Follow these steps to learn how to flip and rotate picture fills for shapes in PowerPoint 2013:
- We assume that you already have a
shape with a
picture fill, as shown towards the left within Figure 3 above. Select the entire shape and copy it to the Clipboard by pressing the Ctrl+C
- Now, paste the copied shape (press Ctrl+V) anywhere within the slide or even on a new
slide. Then change the copied shape (in our case, that's a Teardrop) to a Rectangle by applying the Crop to Shape option. You'll end up with something similar to what's shown in Figure 4.

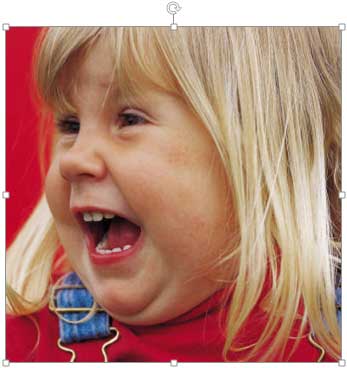

Figure 4: Copy of the shape changed to a rectangle
rectangle horizontally to end up with what you see in Figure 5 (compare with Figure 4, above).

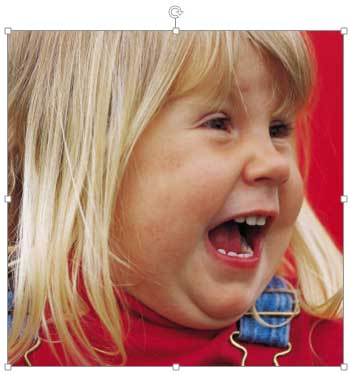

Figure 5: Rectangle flipped horizontally
- Copy the flipped rectangle (press Ctrl+C) so that it is now available on your Clipboard.
- Now, right-click the Teardrop shape, within which you want to use the flipped picture fill flipped. From the contextual menu that appears, choose the Format Picture option, as shown in Figure 6.

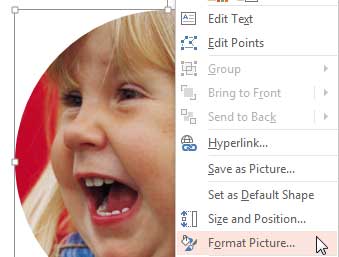

Figure 6: Format Picture option
- This brings up the Format Picture
Task Pane. Here
select the Shape Options tab (highlighted in red within
Figure 7), and click the Fill & Line button (highlighted in
blue within Figure 7). Now, within the Fill section, click the Clipboard button (highlighted in green within Figure 7).

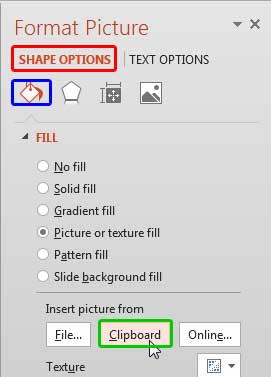

Figure 7: Format Picture Task Pane
- This fills the Teardrop shape with the content on the Clipboard, i.e. the flipped picture, as shown in Figure 8.

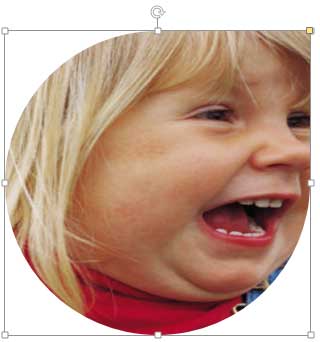

Figure 8: Shape filled with flipped picture
- Use the
Fill option so that the picture sets properly within the shape, as shown in Figure 9.

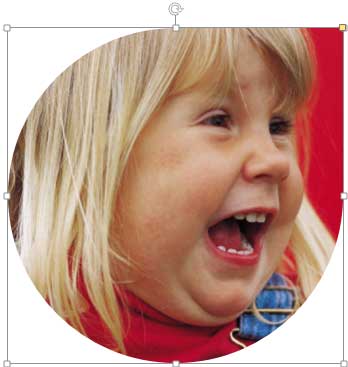

Figure 9: Picture fill flipped within the shape
- Compare the picture shown in Figure 9 with the before and after states of the same picture shown within Figure 3, previously on this page.
- Save your presentation often.
