Convert Text to Shapes by Intersecting in PowerPoint 2013
Learn how to convert PowerPoint text into editable shapes in PowerPoint 2013
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2013
OS: Windows 7 and 8
PowerPoint 2013 has several new features but there's nothing quite like what we will explore on this page -- an option to convert regular text into a shape. First of all, this is an undocumented feature -- so it was really cool discovering how this was done. And then, this is such an utterly useful option -- people find all sorts of excuses to use this feature. For example, you can now easily create logos in PowerPoint without using any other application. Or use a fancy font and then share that presentation with others in the knowledge that recipients can see the font exactly as intended, even if it's not installed on their computers.
Before we begin, you need to know that there are two methods through which you can convert text to shapes in PowerPoint:
- The Intersect method: By converting text to a single shape -- think of each paragraph or multiple paragraphs as a separate shape
- The Fragment method: By converting text into multiple individual shapes -- think of each alphabet as a separate shape
In this tutorial, we will explore the Intersect method -- you can explore the other method in our Convert Text to Shapes by Fragmenting in PowerPoint 2013 tutorial. Follow these steps to learn how to convert text into editable shapes through intersecting in PowerPoint 2013:
- Insert a new text box on your
slide and type in some text. Change the
font type and font size, the font
color, and any other attributes. Alternatively, select any existing text box on your slide, as shown in Figure 1, below.

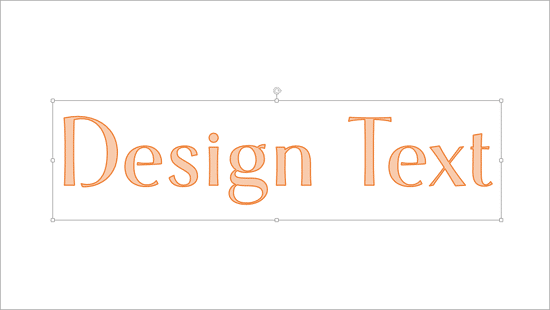

Figure 1: Text box selected on a slide
Note: This technique only works with text boxes, and not text placeholders. Do not know the difference? Explore our Text Placeholders vs. Text Boxes in PowerPoint 2013 article.
If your source text is within a text placeholder, there's an easy solution -- select your text placeholder and copy it. Then paste immediately within the same slide -- the pasted copy is now a text box -- select this text box, and follow the remaining steps of this tutorial. You might want to delete your original text placeholder because it might get in the way while selecting the text box, but that’s entirely optional.
- Insert a shape (we choose a Rectangle) on
your slide. Make sure that it overlaps your text box in a way that covers it completely, as shown in

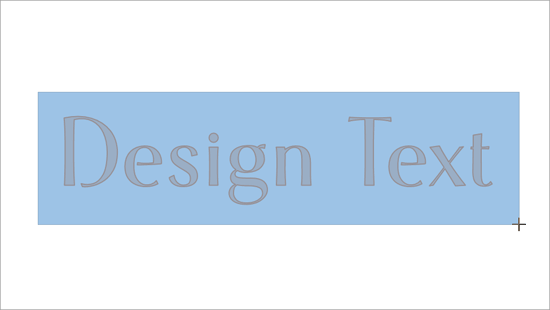

Figure 2: Rectangle shape being drawn over the text box
- Once the Rectangle shape is placed,
reorder the Rectangle shape
by sending it behind the existing text box, as shown in Figure 3.

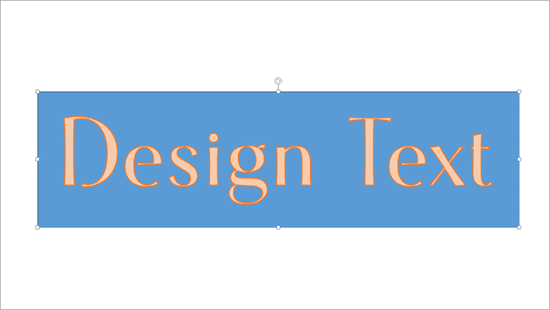

Figure 3: Text Box above Rectangle shape
- Now, carefully select the text box and then select the Rectangle shape. It's important that you select
the text box first -- since the output shape will take the format of whatever is selected first.
Once your selections are done, access the Drawing Tools Format contextual tab of the Ribbon (highlighted in red within Figure 4), and click the Merge Shapes button (highlighted in blue within Figure 4).

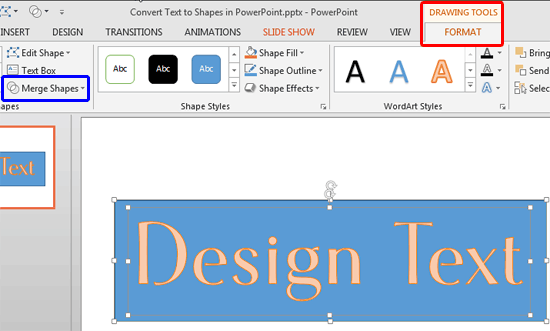

Figure 4: Merge Shapes button
- This brings up the Merge Shapes drop-down gallery, as shown in Figure 5.
Within the Merge Shapes drop-down gallery hover the cursor over the Intersect
option to see a live preview, as
shown in Figure 5. Click the Intersect option to convert the text into shape.

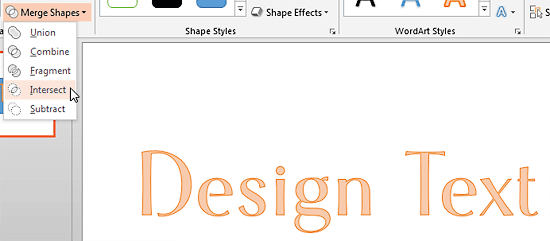

Figure 5: Intersect option to be selected
Tip: Learn more about the Intersect option in our Shape Intersect Command in PowerPoint 2013 tutorial.
- To make sure that the text is converted to a shape, right-click and within the context menu that appears, check
if you can see the Edit Points option, as shown in Figure 6.

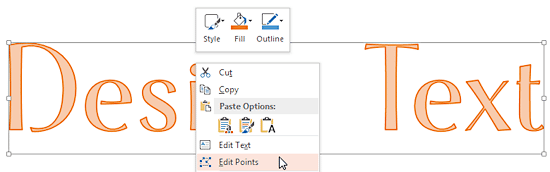

Figure 6: Edit Points option to be selected
If no Edit Points option is available, that means your text has not converted into a shape.
- Click the Edit Points option, and you can see all the points (vertexes) on the converted
text, as shown in Figure 7.

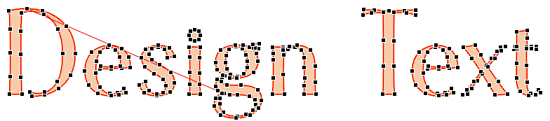

Figure 7: Edit Points reassures you that text has indeed been converted to a shape
Tip: Want to do this same task in an easier way -- get a free add-in from GMARK -- learn more in our Convert Text to Outlines in PowerPoint 2013 with a Free Add-in page.
Tip: Want each alphabet to be a separate shape as opposed to ending up with one single shape for all text within your source text box -- look at our Convert Text to Shapes by Fragmenting in PowerPoint 2013 tutorial.
- Make sure you save your presentation often.
