Picture Effects in PowerPoint 2011 for Mac
Learn about Effect options for pictures in PowerPoint 2011.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2011
OS: Mac OS X
Date Created: May 14th 2012
Last Updated: May 14th 2012
PowerPoint enables users to edit inserted pictures using the adjust picture options, and provides them with some preset Picture Styles which can be directly applied to the selected pictures. Also, they can add beautiful borders to the pictures. But, this is not the end -- they can also apply individual effects to the inserted picture like, a shadow, glow, bevel, 3-D rotation etc. as explained below:
- Open your presentation, and navigate to the slide which contains the picture that you want to apply an effect to, and select the picture.
Alternatively, if you want to start from the beginning, launch PowerPoint -- you will see the Presentation Gallery -- click the Cancel button in this gallery to open a blank presentation with a new slide. PowerPoint 2011 users can change the slide layout to Blank by selecting Home tab | Layout | Blank. Then, insert a picture and select it.
- This brings up the Format Picture tab on the Ribbon (highlighted in red in Figure 1) -- make sure that this contextual tab is activated. Within the Format Picture tab, locate the Picture Styles group and click the Effects button that you can see in Figure 1 (highlighted in blue).

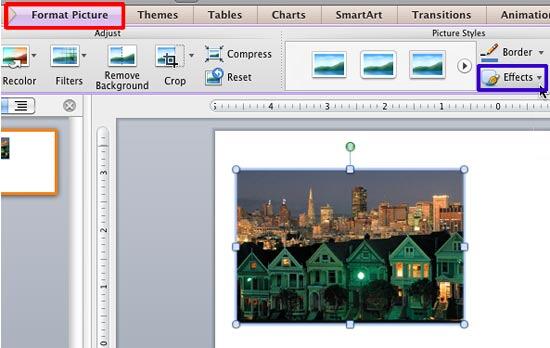

Figure 1: Effects button within the Picture Styles group
Note: The Format Picture tab is a contextual tab. These contextual tabs are special tabs in the Ribbon that are not visible all the time -- they only make an appearance when you are working with a particular slide object which can be edited using special options.
- This opens the Effects drop-down gallery, as shown in Figure

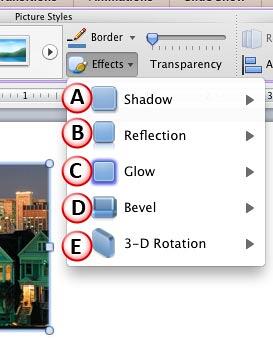

Figure 2: Effects drop-down gallery
Let us explore these Effects options as marked in Figure 2, above. For more information on how to apply these effects, refer to the linked tutorials below. Although these linked tutorials discuss the Effect options for Shapes, the procedures explained applies to Pictures as well:
- Shadow: Applies a shadow to the selected
picture. PowerPoint provides three types of shadows: outer, inner, and perspective. You can apply any of these, or customize
them to meet your requirements. Refer to our Apply Shadow Effects tutorial for more information on how to use the Shadow Effect.
- Reflection: Adds a reflection
to the selected picture, and you can choose from several reflection
styles. Remember, you should not use shadow and reflection
for the same slide object such as a picture. Refer to our Apply Reflection Effects tutorial.
- Glow: Provides a hazed, blurred color perimeter
outside the Picture area. PowerPoint provides several glow variations;
the glow colors are based on the Theme colors, although you
can also choose any other color as well. Refer to our Apply Glow Effects tutorial.
- Bevel: Applies bevel effects to the selected picture.
You can also customize the applied bevel. Refer to our Apply Bevel Effects tutorial.
- 3-D Rotation: Imparts parallel, perspective, and oblique 3-D effects to
the selected picture. Refer to our Apply 3-D Rotation tutorial.
- Soft Edges: Although this effect is not listed within the Effects gallery (see Figure 2), you can access it through the Format Picture dialog box. This effect makes the picture edges feathered, almost like a moth-edge. To access the Format Picture dialog box, right-click the picture, and choose the Format Picture option, as shown in Figure 3 below. Learn more about Soft Edges in our Apply Soft Edges tutorial.

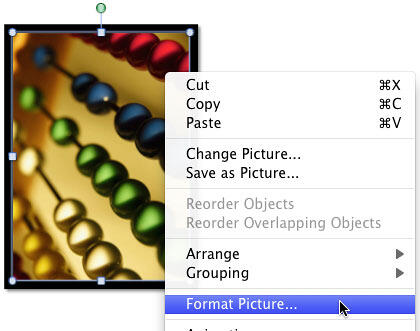

Figure 3: Format Picture option to be selected
- Shadow: Applies a shadow to the selected picture. PowerPoint provides three types of shadows: outer, inner, and perspective. You can apply any of these, or customize them to meet your requirements. Refer to our Apply Shadow Effects tutorial for more information on how to use the Shadow Effect.
- Choose and apply any of the picture effects to your picture -- you can apply more than one effect to the same picture. Figure 4 shows the six variants of the same picture with all the effect types applied.

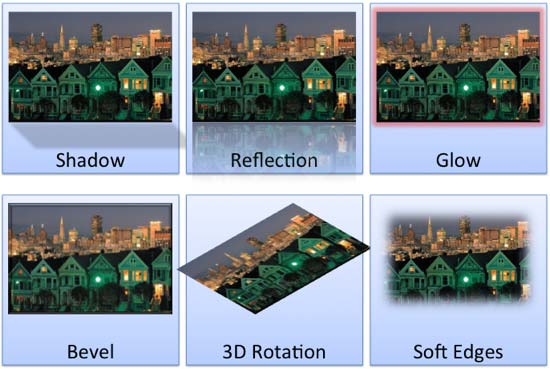

Figure 4: Variants of the same picture with different effects applied
- You can also apply multiple effects to the same picture. Figure 5 shows a picture with three effects applied (Shadow, Bevel, and 3-D Rotation). Compare Figures 1 and 5.
Figure 5: Multiple Effects applied to one picture
- Remember to save your presentation often.
