Picture Corrections in PowerPoint 2011 for Mac

Learn about the Correction option for pictures in PowerPoint 2011.


Author: Geetesh Bajaj

Product/Version: Microsoft PowerPoint 2011
OS: Mac OS X

Date Created: April 16th 2012
Last Updated: April 16th 2012






When you insert a picture on your PowerPoint slide, there may be situations when you feel that the picture needs some corrections. Maybe the picture is too dark or too bright, and you want to give it an average look -- or sometimes you may want to make some tonal changes to it so that it stands apart. In this tutorial, you will learn how to make corrections to the pictures in terms of its brightness, sharpness, softness, and contrast values.

  1. Open your presentation, navigate to the required slide, and insert a picture -- or, if you already have a picture on your slide, just select it and double click to activate the Format Picture tab of the Ribbon as shown in Figure 1 (highlighted in red).

    Format Picture tab of the Ribbon activated

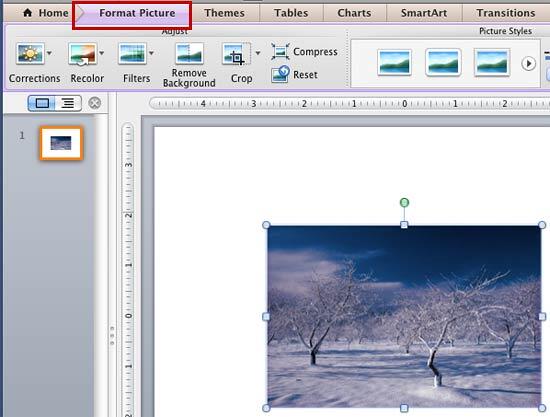

    Figure 1: Format Picture tab of the Ribbon activated

  2. Within the Format Picture tab, locate the Adjust group -- here you will find several options that let you adjust your pictures. Click the Corrections button (highlighted in red, in Figure 2) to access the Corrections drop-down gallery that you can see in Figure 2.

    Corrections drop-down gallery

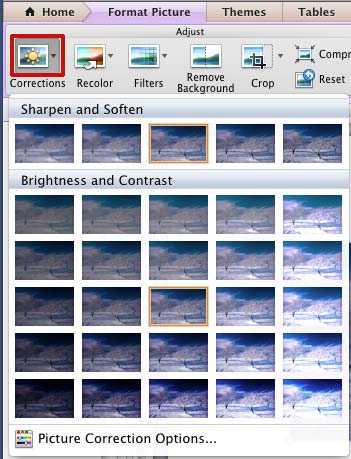

    Figure 2: Corrections drop-down gallery

    This gallery displays the preview thumbnails of the selected picture variants with different sharpness, softness, brightness, and contrast values. These previews have been placed into two sections:

    1. Sharpen and Soften: Displays previews with different sharpness and softness values. The thumbnail in the middle (highlighted in yellow) represents the current status of the picture.

    2. Brightness and Contrast: Displays previews with different brightness and contrast values. Again, the thumbnail in the middle (highlighted in yellow) represents the current status of the picture.

    If you hover the mouse cursor over any of the picture variants, you will see a tool tip as you can see in Figure 3, which displays the adjustment values of the particular variant.

    Brightness and Contrast values displayed in the tool tip

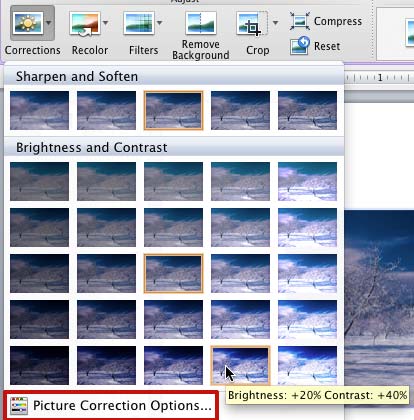

    Figure 3: Brightness and Contrast values displayed in the tool tip

  3. Click on any of the variants to apply different correction values to the selected picture.

  4. At this point, if you are happy with the effect, you can continue with it. Otherwise, if you want to fine-tune the effect further, open the Corrections drop-down gallery once again, and select the Picture Correction Options, the last option in this gallery (highlighted in red, in Figure 3 above), to summon the Format Picture dialog box. In this dialog box, make sure that the Adjust Picture option is selected in the slidebar as you can see in Figure 4. Note that in Figure 4, the options that are not related to Corrections have been grayed out. These options will be discussed in detail when we explain the Recolor options in a subsequent tutorial.

    Picture Correction options within the Format Picture dialog box

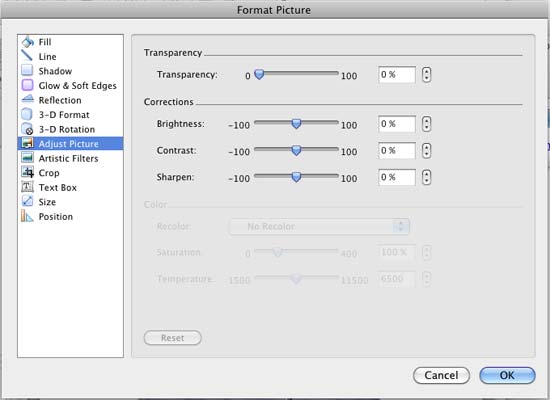

    Figure 4: Picture Correction options within the Format Picture dialog box

  5. Now, make changes to the Transparency, Brightness, Contrast, and Sharpness values as required. You can either use the sliders or directly type in the values in digits, as required.

    Note: When you are making changes to the picture within Format Picture dialog box, you can see the live preview of the changes on the selected picture. So, always place the Format Picture dialog box away from the selected picture on the slide so that it won't prevent you from viewing those live changes on the selected picture.


  6. Once you have fine-tuned the effect using the options within the Format Picture dialog box, click OK to apply the changes and get back to the slide. Figure 5 shows the selected picture with changed brightness and contrast values. Compare Figures 1 and 5 to see the difference.
    Picture with changed brightness and contrast values

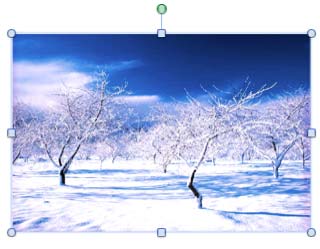

    Figure 5: Picture with changed brightness and contrast values

  7. Save your presentation.

Tip: You can follow the same procedure explained above to make corrections to pictures used as a fill for shapes.
