Compress Pictures in PowerPoint 2013
Learn how to compress pictures in PowerPoint 2013.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2013
OS: Windows 7 and 8
There is no doubt that a presentation with relevant pictures is more effective than just a plain text presentation. Although pictures enhance the look of your presentation, they can also phenomenally increase the size of your presentation file. PowerPoint 2013 and some previous versions are better in that respect compared to the much older versions because they do some compression even if you may not be aware -- yet there is an option to make the compression even more effective.
This is the Compress Pictures feature -- it offers an image compression utility that reduces the size of all inserted pictures in the presentation in a single step. It does so by reducing the picture resolution to the amount needed for the type of output you specify (E-mail, Screen, or Print). Picture resolution is measured in PowerPoint in pixels per inch, or ppi. This roughly translates to dots per inch (dpi) on a printout. A computer screen shows 96 pixels per inch, so you do not need higher resolution than that if you are only showing your presentation on-screen. However, if you are distributing the presentation in other forms, a higher resolution might be appropriate.
To reduce the resolution and compress images within PowerPoint, follow these steps:
- Open the presentation, navigate to any slide that contains a picture and select it. This
brings up the Picture Tools Format contextual tab on the
Ribbon as shown in
Figure 1 (highlighted in red).

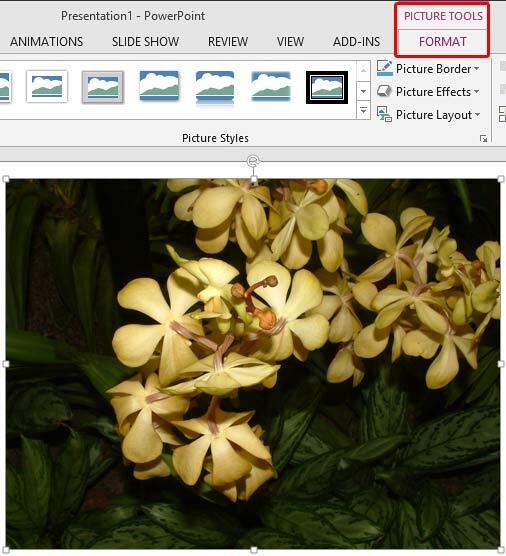

Figure 1: Picture Tools Format tab
Note: The Picture Tools Format tab is a contextual tab. Contextual tabs are special tabs in the Ribbon that are not visible all the time -- they make an appearance only when you are working with a particular slide object which can be edited using the options within these tabs.
- Within the Picture Tools Format tab, click the Compress Pictures
button, as shown highlighted in red within Figure 2.

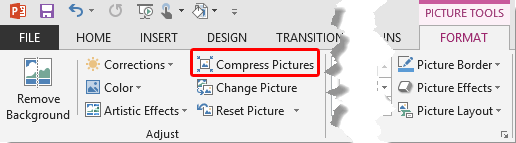

Figure 2: Compress Pictures button
- This opens the Compress Pictures dialog box, as you can see in

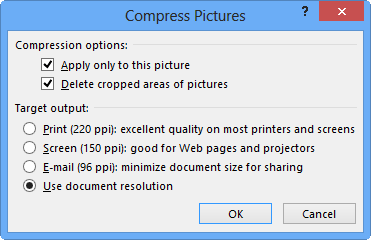

Figure 3: Compress Pictures dialog box
The Compress Pictures dialog box is divided into two sections: Compression options and Target output -- both of these sections comprise some options which are explained below:
- Apply only to this picture: This check-box, when selected enables you to
compress just the selected picture. If you want to compress all the pictures in the presentation
make sure you deselect this check-box, as you can see highlighted in red
within Figure 4.

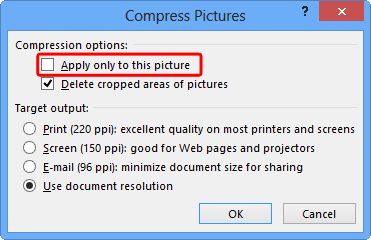

Figure 4: Apply only to this picture check-box deselected
- Delete cropped areas of pictures: If you have
cropped pictures and
you want to delete the cropped-out areas of pictures to save additional space,
select the Delete cropped areas of pictures check-box (see Figure 4,
- Print (220 ppi): Select this radio button if you are printing the presentation
on paper; it keeps the photos at a resolution where they will look crisp on a printout.
- Screen (150 ppi): Choosing this radio button will enable compression for
Screen resolution to display the presentation using a projector or distributing via Internet.
Some projectors have a higher resolution than a monitor.
- E-mail (96 ppi): Select this radio button if you are e-mailing the presentation
to others, because this lower setting results in a smaller file that will transmit more easily
Note: Some e-mail servers have limits on the file sizes they accept, so keeping the PowerPoint file as small as possible when distributing via e-mail is a good idea. If you send someone an e-mail with a large file attached, the server may reject the message, but you might not get an error message back from the server at all, or you might not get one for several days.
- Use Document Resolution: Select this radio button to select the default output
target for picture resolution. You can find default picture resolution within the PowerPoint
Options dialog box -- explore our
Resolution in PowerPoint 2013 tutorial to learn more.
- Apply only to this picture: This check-box, when selected enables you to compress just the selected picture. If you want to compress all the pictures in the presentation make sure you deselect this check-box, as you can see highlighted in red within Figure 4.
- Choose the options based on your requirement, and click the OK button to apply
- Make sure you save your presentation.
