Crop Video in PowerPoint 2013
Learn how crop a video clip in PowerPoint 2013.
Author: Geetesh Bajaj
Product/Version: Microsoft PowerPoint 2013
OS: Windows 7 and 8
Once you insert a video in your slide, you can crop it in almost the same way you crop a picture. Before you crop though, you must ascertain whether PowerPoint's Crop option will help create a better result for your inserted video. The Crop option allows you to remove non-required areas of a video -- for example, if the subject of your video is a person speaking who is surrounded by a large, distracting background of other people or moving objects, you may want to crop the video so that the cropped video now focuses more on the speaker, and gets rid of all the extra distractions. Note that cropping a video does not trim the timings of the video playback in any way – in fact trimming is a completely different option that will be explored in another tutorial. In the following tutorial, we will explore how you can crop a video clip in PowerPoint 2013:
- Open your presentation, and navigate to the required slide where you have already
inserted a video clip. Just select
or double-click the video clip to bring up the two Video Tools tabs in the
Ribbon. These two tabs are
Format and Playback -- click the Format tab to activate it,
as shown in Figure 1 (highlighted in red).
Figure 1: Video Tools Format tab of the Ribbon
- When you insert a video your slide, it may display a black rectangle on the slide (see
Figure 1, above). If your video clip does not show a black rectangle, then directly proceed
to Step 3.
If you see the black rectangle in place of the video clip, then you will have to add a Poster Frame to your video clip, as shown in Figure 2 below.
Tip: A Poster Frame can be applied to your video clip if you see just a black rectangle on your slide, at the time of inserting the video clip. Because, when you are choosing to crop the video, it is good to see a live preview of the actual video clip being cropped, rather than seeing a black rectangle. Anyhow, applying a Poster Frame is entirely optional, and has no relation to your being able to follow the rest of this tutorial.
Figure 2: Video clip with a poster frame added
- Now, within the Video Tools Format tab, click the Crop button
(highlighted in red within Figure 3).

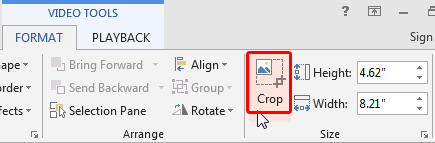

Figure 3: Crop button
- This brings up dark crop handles on the edges of the video clip (or on the edge of the shape if you have
used the Video Shape option), as
shown on Figure 4.

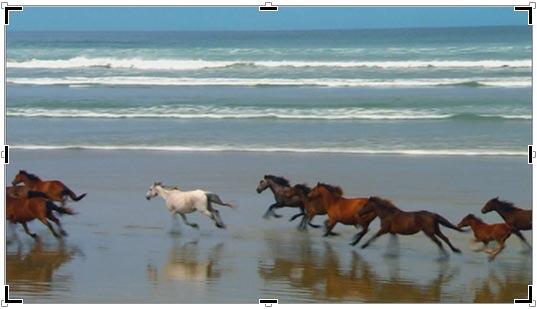

Figure 4: Result of selecting the Crop option on a video clip
Notice that there are 4 side cropping handles, that look a like a straight line -- and also four corner cropping handles that look like a slightly rotated "v".
- You can alter how you crop by pressing the Ctrl key while you drag:
To crop from one side of the video clip, drag the side cropping handle on that side inwards. For example, dragging the side cropping handle inwards from the left edge will crop out areas on the left part of the video clip.
To crop from one corner of the video clip, drag the corner cropping handle on that corner inwards. For example, dragging the corner cropping handle inwards from the top-left will crop out areas on both the top and left parts of the video clip. You can alter how you crop by pressing the Ctrl key while you drag:
- Ctrl+dragging the side cropping handles will resize two opposite sides.
- Ctrl+dragging the corner cropping handles will resize all four sides.
In addition, you can achieve different results by pressing the Shift key while you drag:
- Shift+dragging the side cropping handles will provide no extra benefits.
- Shift+dragging the corner cropping handles will resize the video clip proportionately, retaining its height:width ratio.
You can also press both the Ctrl and Shift keys at the same time to combine both capabilities.
- To reposition the crop, move either the crop area (by dragging the edges of the crop rectangle), or the
video itself -- when you hover your cursor over the video in the Crop mode, you will see the cursor change to
a four-sided arrow, as shown highlighted in red within Figure 5,
below. This will allow you to reposition the actual video, as required. For this video clip, we have isolated
the middle part of the video clip.

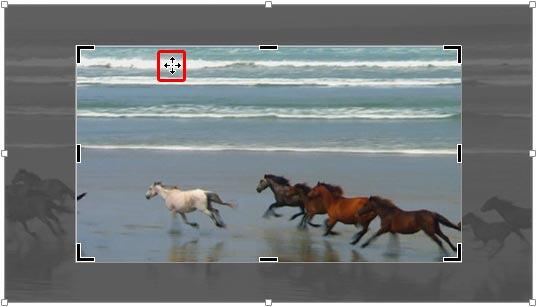

Figure 5: Video clip being cropped
- Now, crop the non-required area by pressing the Enter key, or clicking on the
Crop button again (see Figure 3, earlier on this page). Alternatively,
click on the slide area away from
the video to apply the cropping. Figure 6 shows the cropped video clip -- compare with
Figure 5, above.

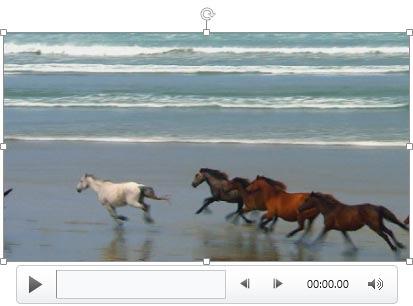

Figure 6: Video clip cropped
- To get more crop options for your video clip, just right-click the video clip to get the contextual menu
that you can see in Figure 7. Within this contextual menu, select the
Format Video option (see Figure 7 again).

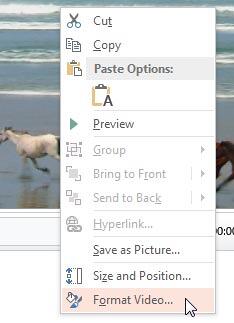

Figure 7: Format Video option to be selected
- This brings up the Format Video
Task Pane as
shown in Figure 8. Make sure you select the Crop option within the Task Pane,
as shown highlighted in red within Figure 8.

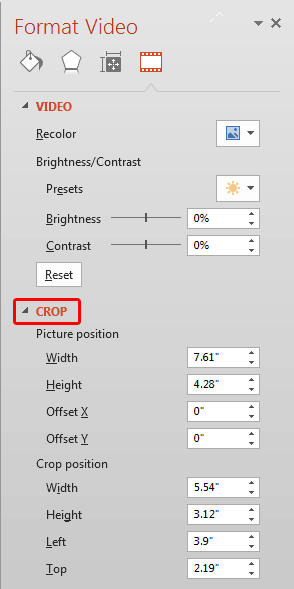

Figure 8: Crop option within the Format Video Task Pane
Here you crop portions of the video by simply specifying the Crop Position or Picture Position. Play around with other crop parameters like Width, Height, Offset X, Offset Y, Left, and Top. As you change values, you will see the live preview. Once you have set the parameters, close the Format Video task pane.
Tip: Want to get back your original uncropped video? You can reset your video -- explore our Reset Options for Videos in PowerPoint 2013 tutorial.
- Make sure you save your presentation.
