Insert an Organization Chart in PowerPoint 2010

Author: Geetesh Bajaj

Product/Version: PowerPoint 2010

Date Created: June 17th 2011
Last Updated: June 17th 2011

Excerpt/Capsule: Learn how to add an organization chart in PowerPoint 2010.

First of all, an organization chart in PowerPoint 2010 is not another option on the Insert tab of the Ribbon. It is just one of the many variants of SmartArt graphics you can insert in your slide in PowerPoint 2010 (and PowerPoint 2007). An organization chart graphically represents the management or hierarchical structure of an organization. If you want to illustrate the reporting relationships in your company or organization, you can create a SmartArt graphic using the Organization Chart variant.

Follow these steps to create an Organization Chart in PowerPoint 2010:

1. Create a new presentation, or open an existing presentation in PowerPoint.


2. When you insert a new slide in PowerPoint, it uses the default Title and Content Slide layout. But if you open a new presentation, it opens a new slide with the default Title Slide layout which you have to change to Title and Content.


   Note: Learn how to insert a new slide in PowerPoint 2010 and how to change the slide layout in PowerPoint 2010.


3. Click the Layout button in the Home tab of the Ribbon to bring up the Layout gallery as shown in Figure 1. Select any of the layouts that include a content placeholder (the small palette like collection of multicolored buttons visible on some of the slide layouts (see Figure 1 again).

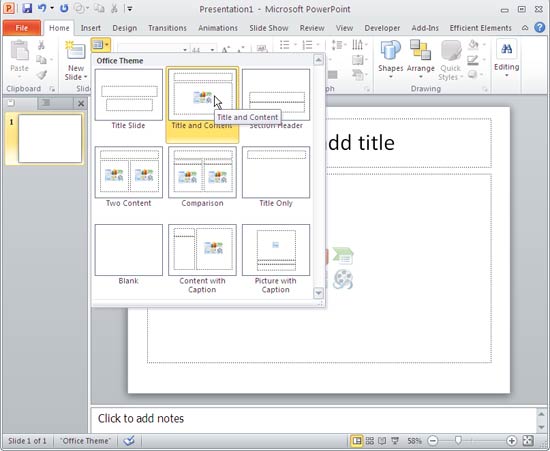

   Figure 1: Choose a slide layout that includes a content placeholder


4. Now that your slide layout has a content placeholder, click the Insert SmartArt Graphic button among the six buttons in the content placeholder that you can see in the slide within Figure 2.

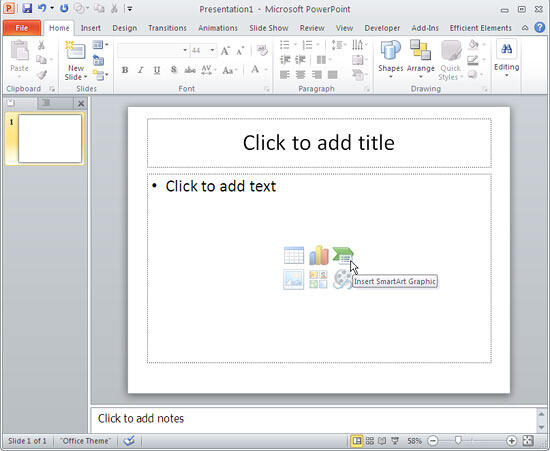

   Figure 2: Content Placeholder

   Alternatively, if you want to insert a SmartArt in an existing slide that has no content placeholder, just select the Insert tab of the Ribbon, and within the Illustration group, click the SmartArt button, as shown in Figure 3.

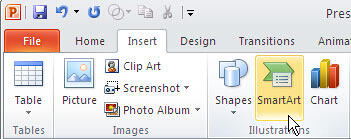

   Figure 3: SmartArt button under Insert tab of the Ribbon


5. Either of these options opens the Choose a SmartArt Graphic dialog box that you can see in Figure 4.

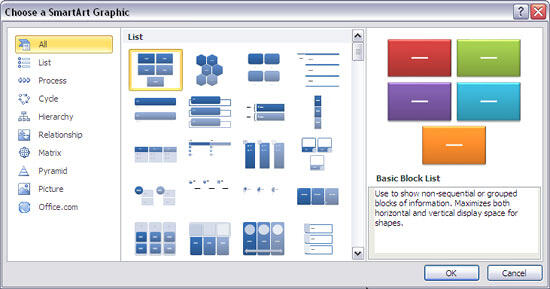

   Figure 4: Choose a SmartArt Graphic dialog box

   The left pane lists the types of SmartArt graphics available -- the middle area displays SmartArt graphic variants within the selected type, and the area towards the right shows a preview of the selected SmartArt graphic along with a brief description.


6. Within the left pane, click the Hierarchy option. Then choose any of the organization chart layouts (the first few layouts in this category), as shown in Figure 5. Then click OK.

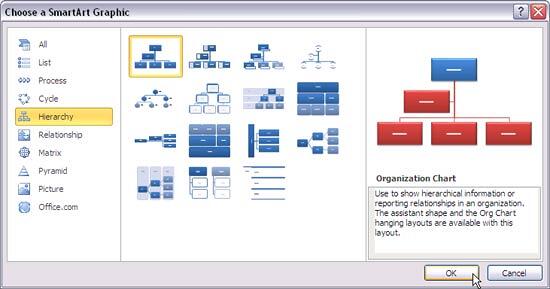

   Figure 5: Organization Chart selected


7. This will place the selected Organization Chart on the slide, as shown in Figure 6.

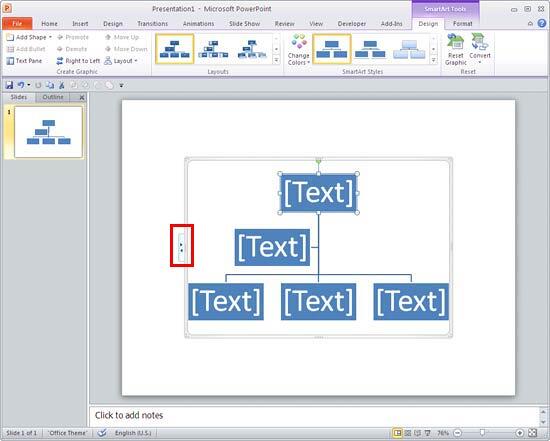

   Figure 6: Inserted Organization Chart


8. When the Organization Chart is placed on the slide, click the arrows located on the left side (highlighted in red in Figure 6 above) to open the text pane (see Figure 7).

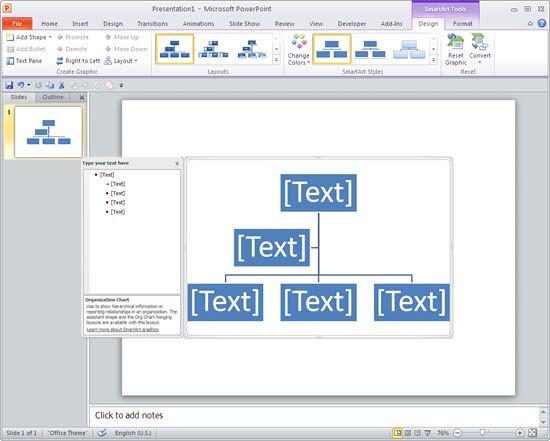

   Figure 7: SmartArt graphic text pane


9. Any text content added or edited within the text pane shows up within the Organization Chart as well.


10. Save your presentation. Learn how to add more shapes to your organization chart in our Adding New Shapes to Existing Organization Charts in PowerPoint 2010 tutorial.
