Changing Chart Types in PowerPoint 2011 for Mac

Author: Geetesh Bajaj

Product/Version: PowerPoint 2011
OS: Mac OS X

Date Created: December 20th 2012
Last Updated: December 20th 2012


Excerpt/Capsule: Learn how you can change the chart type from one to another in PowerPoint 2011 for Mac.






Once you insert a chart on your PowerPoint slide, you can enhance it by applying a new style, selecting different chart elements and by changing the position of elements such as the Legend, etc. Other than these options, you can also change the type of the chart altogether. PowerPoint 2011 provides all the basic chart types such as Column, Bar, Line, Pie, etc. (see Figure 1) -- and also some advanced charts like Radar, Surface, Bubble, Doughnut, etc. (see Figure 2). Together, all these chart types cater for almost every kind of graphical data representation.

Bar Chart
Column Chart
Pie Chart

Figure 1: Bar, Column, and Pie Chart Types

Bubble Chart
Surface Chart
Radar Chart

Figure 2: Bubble, Surface, and Radar Chart Types

To change a chart type from one to another, you first need to have a chart in your presentation. Learn how to insert a chart in PowerPoint 2011. Then follow these steps to change the chart type in PowerPoint 2011:

  1. Select the chart, as shown in Figure 3. As you can see, we have selected a Column chart.

    Column chart selected
    Figure 3: Column chart selected

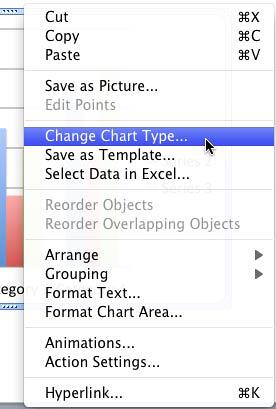

  2. Right-click (or Command+Click) the selected chart, and from the contextual menu that appears, select the Change Chart Type option as shown in Figure 4. When you right-click (or Command+Click), make sure that you have selected the entire chart, not any particular chart element.

    Change Chart Type option to be selected
    Figure 4: Change Chart Type option to be selected

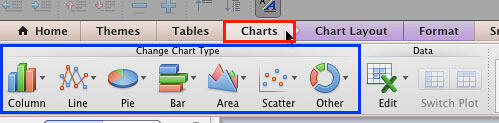

    Alternatively, you can just click the Charts tab of the Ribbon as shown highlighted in red within Figure 5. Both of these options will bring up the Change Chart Type group within the Charts tab as shown highlighted in blue within Figure 5.

    Charts tab of the Ribbon selected
    Figure 5: Charts tab of the Ribbon selected

    Note: Make sure that your chart is selected all the time. If not, you will end up inserting a new chart overlapping the existing chart rather than changing the chart type.

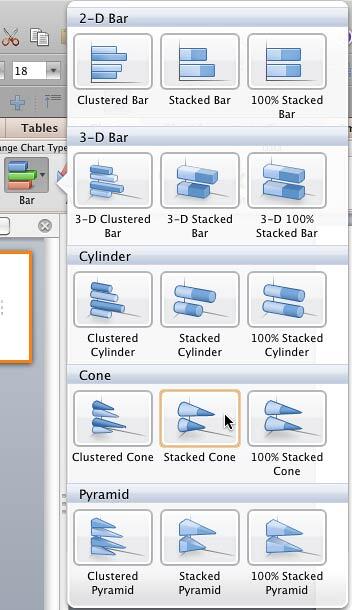

  3. This group includes several buttons that represent various chart types. Clicking any of these buttons will open a gallery displaying a collection of chart variants of that particular chart type. Click on any of those buttons depending upon the type to which you want to change your selected chart. In Figure 6 you can see that we have chosen Stacked Cone chart within Bar chart type (surrounded by yellow rectangle within Figure 6).

    Stacked Cone Chart selected within Bar Chart gallery
    Figure 6: Stacked Cone Chart selected within Bar Chart gallery

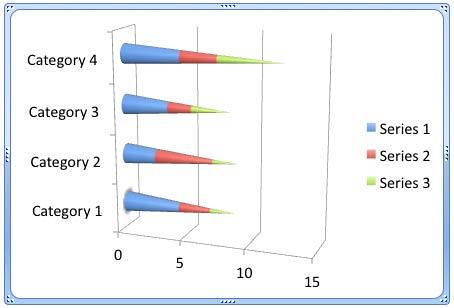

  4. This will change the selected chart into the new type chart based on your selection. In Figure 7, you can see that the Column chart selected earlier has been changed to a Stacked Cone Bar chart.

    Selected chart changed to Stacked Cone Bar chart
    Figure 7: Selected chart changed to Stacked Cone Bar chart

  5. Save your presentation.
