Show the Animation Advanced Timeline in PowerPoint 2007

Author: Geetesh Bajaj

Product/Version: PowerPoint 2007
OS: Windows 7, Vista, and XP

Date Created: November 9th 2011
Last Updated: November 9th 2011


Excerpt/Capsule: Explore how to make the Advanced Timeline visible within PowerPoint 2007.






There's so much you can do within the default Custom Animation task pane within PowerPoint 2007 -- you can add animation to any slide object, change the animation event as required, and set the speed of the animation spanning all the way from Very Slow to Very Fast, choosing from several preset speeds available. Yet, there may be times when you want your animation to play for a time span that exceeds the preset time for the Very Slow or any other option. Or there may be two animations that start at the same time, but you want one of them to end just two seconds before the other. In situations like these, you'll need to use the Advanced Timeline found within the Custom Animation task pane:

  1. Make sure that the Custom Animation task pane is visible -- in the Animations tab of the Ribbon, click on the Custom Animation button, as shown in Figure 1. Remember that this is a toggle button -- so, if your Custom Animation task pane is already visible, then clicking this button will make the task pane disappear.

    Custom Animation button within Animations group of Animations tab
    Figure 1: Custom Animation button within the Animations group of Animations tab

  2. You should now see the Custom Animation task pane, as shown in Figure 2. Note that there is one animation visible in the task pane that you see in Figure 2 -- if you see no animations listed, this means that none of the slide objects on your active slide are animated – go ahead and add at least one animation.

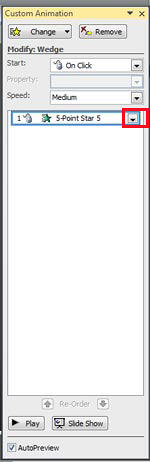

    Custom Animation task pane
    Figure 2: Custom Animation task pane

    Within this task pane, select any animation in the list, and click the down-arrow towards the right of the animation (like the one highlighted in red in Figure 2).

    Tip: Do you want to know how to add an animation in the first place -- head to our Adding an Animation tutorial.


  3. Alternatively, just right-click on the animation -- either way you will reveal a drop-down menu as shown in Figure 3. In this drop-down menu, select the Show Advanced Timeline option (refer to Figure 3).

    Show Advanced Timeline option selected
    Figure 3: Show Advanced Timeline option selected

  4. This changes the Custom Animation task pane to a different view -- note that you can now see the timeline of the selected animation, as shown highlighted in red in Figure 4. At this point of time, the timeline is not too easy to edit since it is restricted to a very thin task pane -- however, you can click on the handle of the task pane (highlighted in blue in Figure 4) and drag it off to a new area on the screen that provides enough space for a longer timeline.

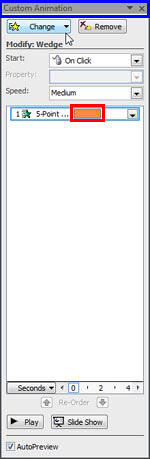

    Custom Animation task pane in Advanced Timeline mode
    Figure 4: Custom Animation task pane in Advanced Timeline mode

  5. As you can see in Figure 5, we moved the Custom Animation task pane to the bottom of the slide area -- this will provide a longer area to tweak the timeline. Compare Figures 4 and 5 and you can see the same timeline now is placed in a less restrictive area.

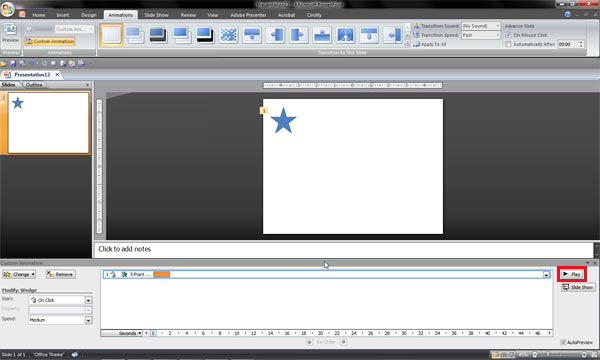

    Custom Animation task pane moved to the bottom of the slide
    Figure 5: Custom Animation task pane moved to the bottom of the slide

    Tip: Once you are done using the Advanced Timeline, you can reverse these steps to place the Custom Animation task pane in its default location.


  6. Save your presentation often.

Learn how to Control Animation with Advanced Timeline in PowerPoint 2007.
