Movie Actions in PowerPoint 2007

Author: Geetesh Bajaj

Product/Version: PowerPoint 2007
OS: Windows 7 / Vista / XP

Date Created: December 7th 2011
Last Updated: December 7th 2011


Excerpt/Capsule: Learn about Movie Actions in PowerPoint 2007.




Although PowerPoint classifies Movie Actions as an animation type, these are not strictly animations. Yet, since you access them through the Custom Animation task pane, we have included this tutorial in our Animations section. In simple terms, a Movie Action is something that causes an event for any inserted movie clip -- these are simple events such as Play, Pause, Resume, and Stop. By providing complete control over these actions within the Custom Animation task pane, PowerPoint empowers you to make these events interact with other animations, including Triggers.

Tip: Movie Actions work very similarly to Sound Actions.


To access Movie Actions, you must insert a movie (video) clip within a slide. Typically, when you add a movie within PowerPoint, you are prompted to choose whether you want the movie clip to start Automatically or When Clicked, as shown in Figure 1. To make the most out of Movie Events, you must choose the When Clicked option, highlighted in red in Figure 1.

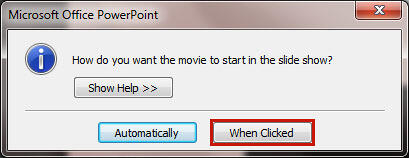

Options to start the movie in the slide show
Figure 1: Options to start the movie in the slide show

You may not be aware but at this point of time, PowerPoint has already added a Pause Movie Action for your movie clip. Once your movie is inserted within a slide, you can apply more Movie Actions to the clip -- follow these steps to learn more:

  1. Make sure you select the movie on your slide, as shown in Figure 2. Note that we have used a blank slide for this tutorial as you can see in Figure 2. Your slide may look different if you have more slide objects or placeholders.

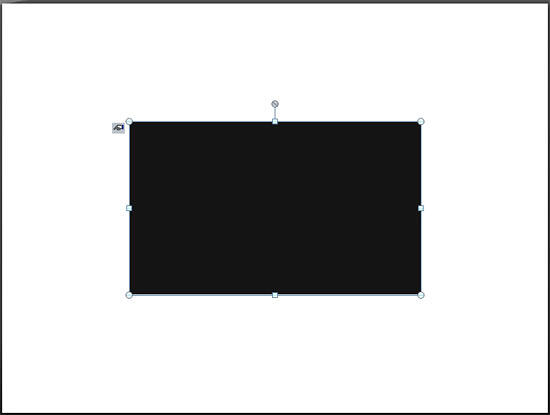

    A selected movie clip on the slide
    Figure 2: A selected movie clip on the slide

  2. Now, access the Animations tab of the Ribbon, and click on the Custom Animation button, as shown in Figure 3. Remember that this is a toggle button -- so, if your Custom Animation task pane is already visible, then clicking this button will make the task pane disappear.

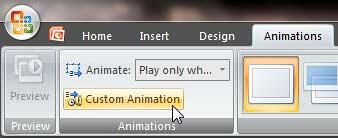

    Custom Animation button within Animations group of the Animations tab
    Figure 3: Custom Animation button within Animations group of the Animations tab

  3. In this task pane, you will see a list of the Movie Actions that exist for movie clips on the active slide. Since you chose the When Clicked option while inserting the sound (see Figure 1, above), PowerPoint will set to Pause this video when it encounters an On Click animation event (highlighted in red in Figure 4).

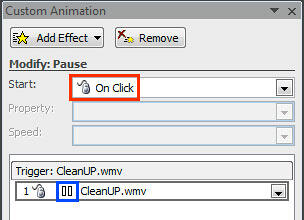

    Custom Animation task pane displaying animation event and movie action of the selected movie clip
    Figure 4: Custom Animation task pane displaying animation event and movie action of the selected movie clip

  4. With the movie clip on the slide still selected, click the Add Effect button within the Custom Animation task pane, highlighted in red in Figure 5.

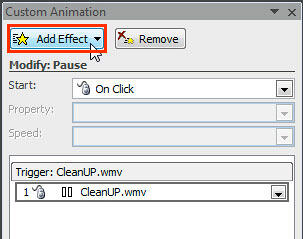

    Add Effect button within the Custom Animation task pane
    Figure 5: Add Effect button within the Custom Animation task pane

  5. This brings up the Add Effect drop-down menu that you can see in Figure 6. Note that the typical Add Effect menu (refer to our Adding an Animation tutorial) has just four sub-menus. But in this case, you have an extra sub-menu called Movie Actions, as shown in Figure 6. The Movie Actions sub-menu only shows up if you have a movie clip selected on your slide.

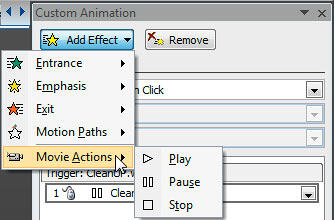

    Movie Actions sub-menu within the Add Effects drop-down menu
    Figure 6: Movie Actions sub-menu within the Add Effects drop-down menu

    Options in the Movie Actions sub-menu are explained below:

    • Play: This action is to play the movie.
    • Pause: This is the default movie action - this action is used to pause the playing movie. If you click the object in its paused state, it resumes playing the movie.
    • Stop: This option is to stop the playing the movie.

  6. Since we already have a Pause Movie Action in our animations list (highlighted in blue in Figure 4 above), let us go ahead and add Play and Stop Movie Actions. With your movie clip still selected, click the Add Effect button (highlighted in red in Figure 5) -- then choose the Movie Actions sub-menu, and click the Play option. This will add a Play Movie Action in your animations list, as shown in Figure 7. Also note the Play symbol placed in front of the name of the movie in the animations list (highlighted in blue in Figure 7).

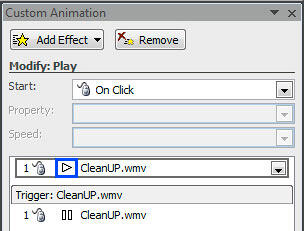

    Custom Animation task pane displaying Play movie action added to the movie clip
    Figure 7: Custom Animation task pane displaying Play movie action added to the movie clip

  7. With your movie clip still selected, go ahead and add a Stop Movie Action as well -- this will add a Stop Move Action in your animations list, as shown in Figure 8. Also note the Stop symbol placed in front of the name of the movie in the animations list (highlighted in blue in Figure 8).

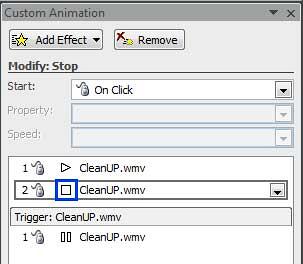

    Custom Animation task pane displaying Stop sound action added to the movie clip
    Figure 8: Custom Animation task pane displaying Stop sound action added to the movie clip

  8. Save your presentation -- in one of the subsequent tutorial of this series, we will explore how you can set Trigger animations for Sound and Movie Actions.
