OfficeOne Shape Locker

Learn about OfficeOne Shape Locker, an add-in for PowerPoint 2010 and 2007.


Reviewed:

Date Created: July 26th 2012
Last Updated: July 26th 2012






Introduction
Using OfficeOne Shape Locker
Pricing and Support
Conclusion


Introduction

Limited Time Offer: Until August 31, 2012 you can get OfficeOne Shape Locker for 50% off the listed price -- so you pay only $24.97 instead of $49.95 -- just remember to use the promo coupon code: INDEZINE-SHAPELOCK50

For the longest time, PowerPoint users have been asking Microsoft to provide lock and unlock options for slide objects so that some objects cannot be moved from their positions, resized, or even selected. We haven't been lucky yet, but looks like there's a third party vendor who's taken up this challenge to create an add-in that does all the locking and unlocking. Shape Locker is a PowerPoint add-in that allows you to lock several attributes so that slide objects are prevented from further modifications. These objects can be on slides, Master slides, and even Slide layouts. With Shape Locker, you can lock a slide object's position, size, rotation attributes, etc. Once attributes are locked, you cannot make any change to the restricted attributes. Restricted attributes remain locked even on computers where Shape Locker is not installed since all the locked information is stored within the presentation file itself.

Shape Locker is from OfficeOne, a Mumbai, India based entity. You can learn more about the Shape Locker add-in and download it as a trial version from their site. My contact at OfficeOne for this review was Chirag Dalal - thank you, Chirag.

Back


Using OfficeOne Shape Locker

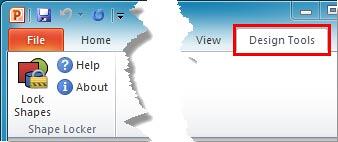

Download the installer from the link given above -- you can also download their trial version -- this works the same way as the full version of the add-in, but is limited to 10 days. Once installed, you will see a new Design Tools tab on Ribbon within PowerPoint 2010, as shown highlighted in red within Figure 1. ShapeLocker also works within PowerPoint 2007.

Design Tools tab of the Ribbon
Figure 1: Design Tools tab of the Ribbon

Follow these steps for a small walkthrough that shows how you can use Shape Locker:

  1. Launch PowerPoint. Most of the time, PowerPoint will open with a new slide in a presentation -- you can change the slide layout to Blank by selecting Home tab | Layout | Blank. This provides a nice blank slide without any placeholders.

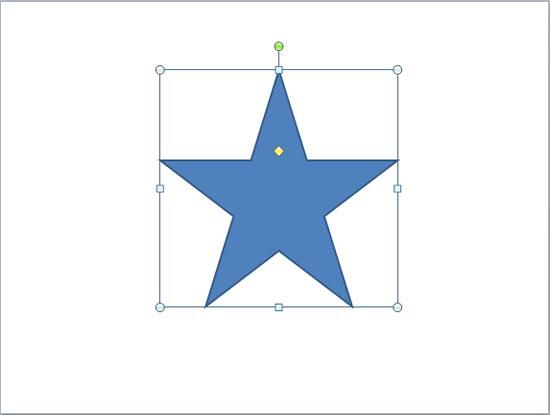

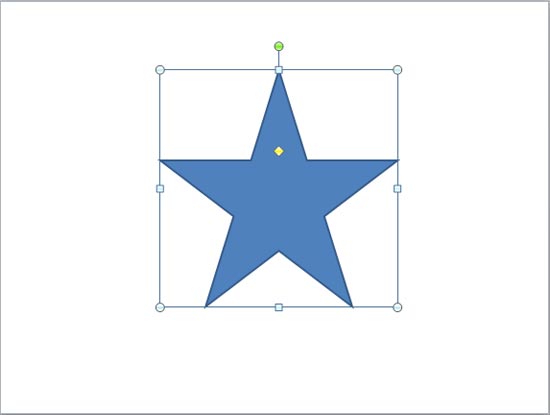

  2. Now, insert a shape of your choice on the slide. We used a 5-Point Star shape, as shown in Figure 2.

    5 point Star shape selected
    Figure 2: 5 point Star shape selected

    Note: Make sure you save your presentation before you use any of the Lock Options in Shape Locker.


  3. Select your shape, as shown in Figure 2 above. Then, access the Design Tools tab (highlighted in red within Figure 1, above) of the Ribbon, and within the Shape Locker group, click the Lock Shapes button, as shown highlighted in red within Figure 3.

    Lock Shapes button within the Shape Locker group
    Figure 3: Lock Shapes button within the Shape Locker group

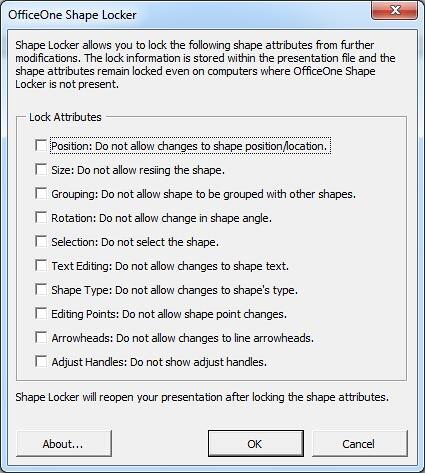

  4. This brings up the OfficeOne Shape Locker dialog box, as shown in Figure 4.

    OfficeOne Shape Locker dialog box
    Figure 4: OfficeOne Shape Locker dialog box

    All the Lock Attributes within the OfficeOne Shape Locker dialog box are explained below:

    1. Position: Does not allow changes to the selected object's location on the slide.

    2. Size: Does not allow changes to the selected object's height and width -- the selection handles get disabled altogether.

    3. Grouping: Does not allow grouping for the selected object. Note that this option may be grayed out in case you select a text placeholder, or any other placeholder. Don't know how a text placeholder is different from a text box? See our Text Placeholders vs. Text Boxes in PowerPoint 2010 tutorial.

    4. Rotation: Prevents you from rotating the selected object -- the rotation handle itself gets disabled.

    5. Selection: Does not allow the object to be selected. Such objects can no longer be selected by any means, including within the Selection Pane. This is useful for objects that represent your brand, such as logos. This also means that you can no longer change any of that object's other lock attributes. In other words, the Select lock is all encompassing, and all the remaining nine lock attributes become irrelevant! If you do get in a situation where you inadvertently locked a slide object, the only recourse open may be getting in touch with the folks at OfficeOne.

    6. Text Editing: Does not allow changes to the text within the selected shape.

    7. Shape Type: Does not allow changes to shape's type. A shape with shape type lock retains its existing type and it cannot be changed.

    8. Editing Points: Does not allow you to change or edit points that act as vertexes for shapes.

    9. Arrowheads: Does not allow changes to line arrowheads. This also places a position lock on the shape.

    10. Adjust Handles: Does not show adjust handles. When you select the shape, notice the absence of the yellow diamond that allows you to adjust the shape:
  5. For this tutorial we locked the position of the shape. To do that with the shape selected, we selected the Position check-box and clicked the OK button within the OfficeOne Shape Locker dialog box (see Figure 5 below).

    Position check-box selected within OfficeOne Shape Locker dialog box
    Figure 5: Position check-box selected within OfficeOne Shape Locker dialog box

  6. Now access the Format Shape dialog box, and select the Position pane on the sidebar -- notice that the Horizontal and Vertical position boxes are disabled, as you can see highlighted in red within Figure 6.

    Position pane within the Format Shape dialog box
    Figure 6: Position pane within the Format Shape dialog box

  7. Similarly apply any other Lock Attribute you want.

  8. Save your presentation.

Back


Pricing and Support

OfficeOne Shape Locker costs US$49.95. Multiple licenses are available.

Support is through e-mail and online FAQ.

Until August 31, 2012 you can get OfficeOne Shape Locker for 50% off the listed price -- so you pay only $24.97 instead of $49.95 -- just remember to use the promo coupon code: INDEZINE-SHAPELOCK50

Back


Conclusion

We think this is probably one of the best PowerPoint add-ins ever created -- but wonder if the folks at OfficeOne did not realize that they were creating such a revolutionary add-in? Why do they call it Shape Locker when it lets you lock placeholders, text boxes, video clips, and pictures as well. And yes, it does lock shapes too. You cannot lock SmartArt and charts though.

For $49.95, Shape Unlocker is a steal!

Back
