PowerPoint Backgrounds With Photoshop: Gaussian Blur

Learn how to create PowerPoint Backgrounds in Photoshop with the Gaussian Blur effect.

Add Your Ratings!:

By:







Photoshop is often to go-to program for creating quick slide backgrounds for use in PowerPoint. That's because Photoshop is full of amazing options that make creating backgrounds easy -- we already explored the Reticulation effect. As in that case, you must understand that your slide backgrounds need to remain in the "background" -- that means you must never use complicated, busy, and colorful backgrounds. The Gaussian Blur effect that we will explore today lets you create simple, uncomplicated backgrounds.

Note: Photoshop does have a learning curve - but if you follow all instructions on this page, you can easily create reticulated backgrounds for PowerPoint within Photoshop. However, this article does assume some familiarity with the Photoshop interface. You can find links to Photoshop resources at Indezine's Photoshop page.

Do note that we have no recommendations for any specific version of Photoshop for this tutorial – we did however use Photoshop CS6 for the screen shots you see on this page:

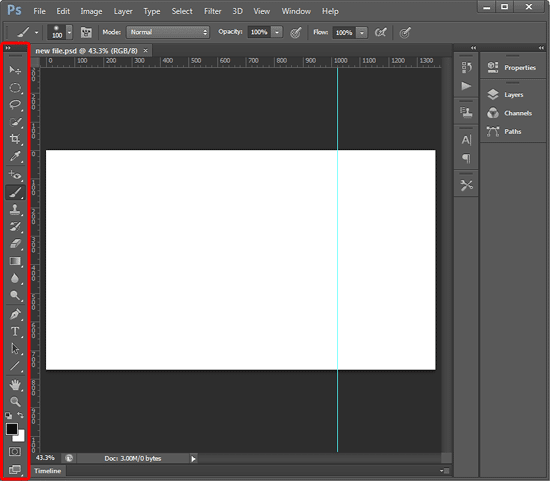

  1. Make sure you use the proper Photoshop template for creating PowerPoint slide backgrounds. Also make sure that the background is set to white, as shown in Figure 1.

    Blank document opened within Photoshop
    Figure 1: Blank document opened within Photoshop

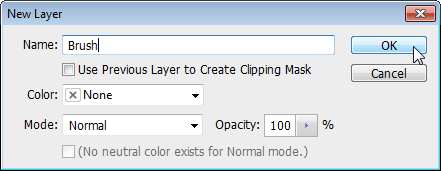

  2. Now, create a new layer above this white layer by choosing the Layer | New Layer menu option. You will then see the New Layer window, as shown in Figure 2, below.

    Add a new layer
    Figure 2: Add a new layer

  3. Type in a name for this new layer -- we called it Brush (see Figure 2, above) and click the OK button. This will add this Brush layer within the Layers palette, as shown in Figure 3, below.

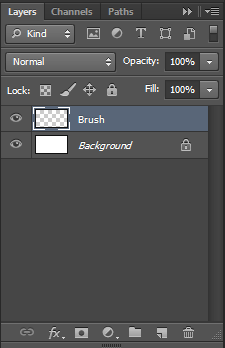

    New layer added within the Layers palette
    Figure 3: New layer added within the Layers palette

  4. Now explore the Tools palette in Photoshop, as shown highlighted in red within Figure 1, earlier on this page. At the bottom of the Tools palette, you will find the Foreground and Background color swatches, as shown in Figure 4, below.

    Foreground and Background color swatches
    Figure 4: Foreground and Background color swatches

  5. Access the Swatches palette by choosing the Window | Swatches menu option. This brings up the Swatches palette as shown in Figure 5, below.

    Swatches palette
    Figure 5: Swatches palette

    Note: If the Swatches palette is already visible, then choosing the Window | Swatches menu option will hide it!


  6. Change the Foreground color to whatever you want by clicking on any of the swatches in the Swatches palette. In Figure 6 below you can see we choose Lilac as the Foreground color.

    Foreground color changed
    Figure 6: Foreground color changed

  7. Now, click the Brush tool within the Tools palette, as shown highlighted in red within Figure 7.

    Brush tool
    Figure 7: Brush tool

  8. Doodle anything on the new layer you created. In Figure 8 below, you can see we have drawn some lines. If your brush stroke is too thin, you can press the Close Bracket ( ] ) key to increase the size of the brush stroke. Similarly the Open Bracket ( [ ) key decreases the brush size.

    Draw on the new layer created
    Figure 8: Draw on the new layer created

    Tip: You can also change the opacity of your brush stroke by typing in a new Opacity value within the Properties bar, highlighted in red within Figure 8, above.


  9. Now, change the Foreground color -- choose a color from the Swatches palette that is not too different from the color you chose first -- we chose a color that was a lighter variation of the original color. We then doodled some more random lines, as can be seen in Figure 9 below.

    Doodled with different color
    Figure 9: Doodled with different color

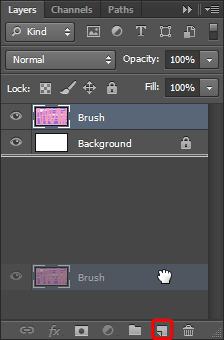

  10. Now within the Layers palette, duplicate the Brush layer by dragging it to the Duplicate icon, highlighted in red within Figure 10, below.

    Drag the layer to duplicate
    Figure 10: Drag the layer to duplicate

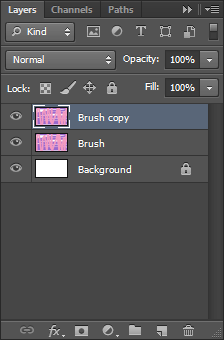

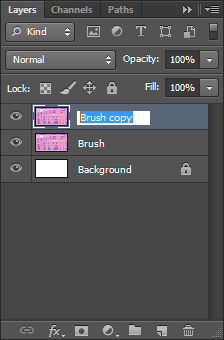

  11. Now this layer gets duplicated, as seen in Figure 11, below.

    Layer has been duplicated
    Figure 11: Layer has been duplicated

  12. Now select the Layer | Rename Layer menu option. This enables you to rename the layer, as shown in Figure 12, below.

    Rename the layer
    Figure 12: Rename the layer

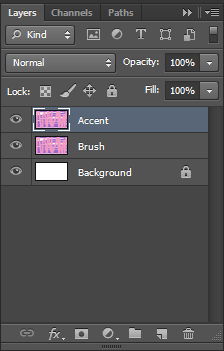

  13. Just type in the new name for this new layer. We called it Accent, as shown in Figure 13, below.

    Layer renamed
    Figure 13: Layer renamed

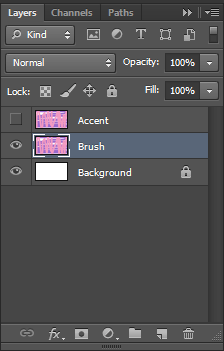

  14. Thereafter hide this new Accent layer by clicking the eye icon to its left -- this will hide the icon as well as the layer, as shown in Figure 14, below. Make sure you now select the layer named Brush.

    Duplicate layer created
    Figure 14: Hide the Accent layer

    Tip: Click the eye icon area again to unhide this layer! All layers hidden do not show in the editing window as well.

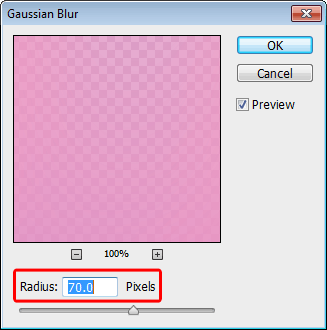

  15. Now access the Filter | Blur | Gaussian Blur menu option. This opens the Gaussian Blur dialog box, as shown in Figure 15. Within the Gaussian Blur dialog box, choose a Radius value of about 70 pixels, as shown highlighted in red within Figure 15. Increase or decrease the Radius until the Preview area appears washed out.

    Gaussian Blur dialog box
    Figure 15: Gaussian Blur dialog box

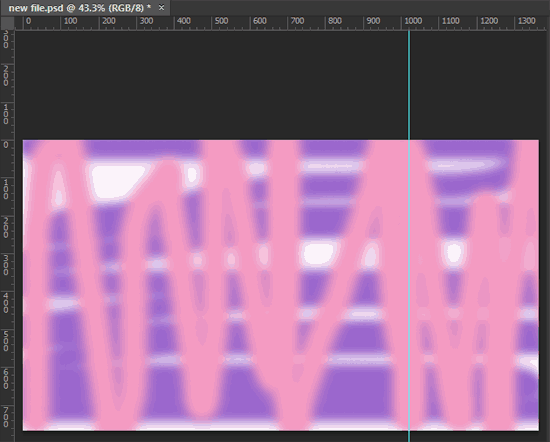

  16. Once done, click the OK button to apply the Gaussian Blur effect to the Brush layer. Figure 16 below shows the Gaussian blur effect applied to the layer.

    Gaussian blur effect applied to the layer
    Figure 16: Gaussian blur effect applied to the layer

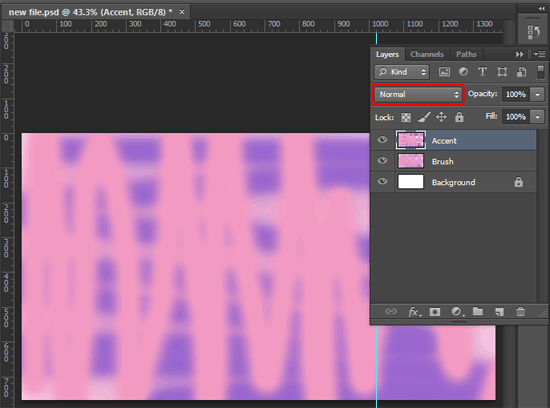

  17. Now, make the Accent layer visible, as shown in Figure 17 by clicking on the eye icon. You have now covered the Brush layer beneath that had the Gaussian Blur effect. Even though you cannot see that layer, don't worry because we are next going to blend the Brush and Accent layers. To do so, first click on the Blending Mode drop-down list, as highligted in red within Figure 17, below.

    Accent layer made visible
    Figure 17: Accent layer made visible

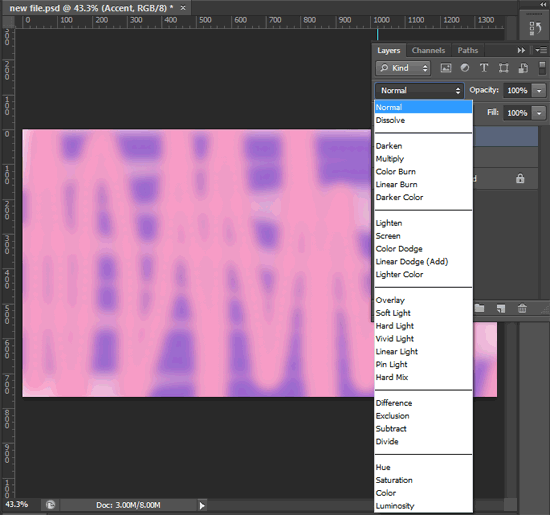

  18. This will reveal all the Blending Modes as shown in Figure 18, below. Note that these Blending Modes will interact with the layer below to provide amazing effects.

    Blending Modes
    Figure 18: Blending Modes

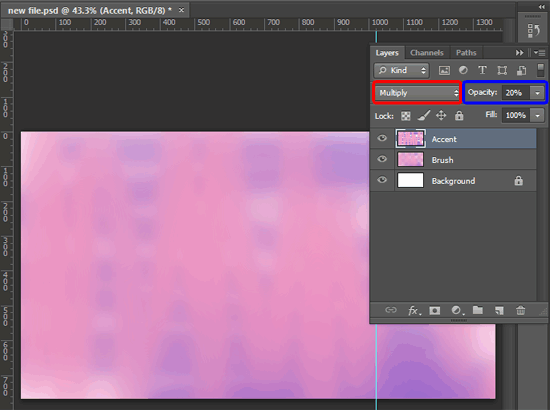

  19. For this tutorial we chose the Multiply Blending Mode (highlighted in red within Figure 19). We then changed the opacity of the layer to 20%, highlighted in blue within Figure 19.

    Choose blending mode and transparency
    Figure 19: Choose blending mode and transparency

  20. We now end up with the final result, as shown in Figure 20.

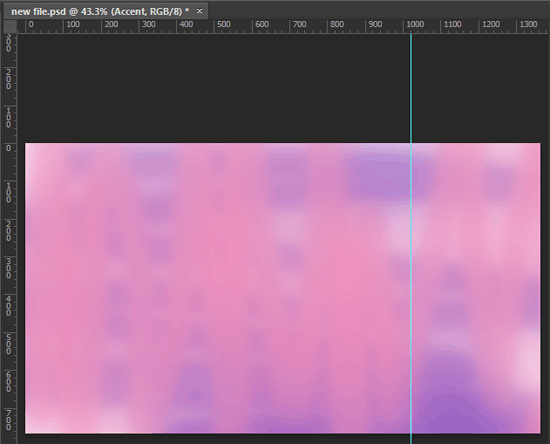

    Backgrounds created with Gaussian blur effect
    Figure 20: Backgrounds created with Gaussian blur effect

  21. Make sure to save the picture with a different name. You can also use Photoshop's Save for Web option, as explained towards the end in our Creating Slide Backgrounds in Photoshop for PowerPoint tutorial.

See Also: Photoshop TIFFs for PowerPoint
